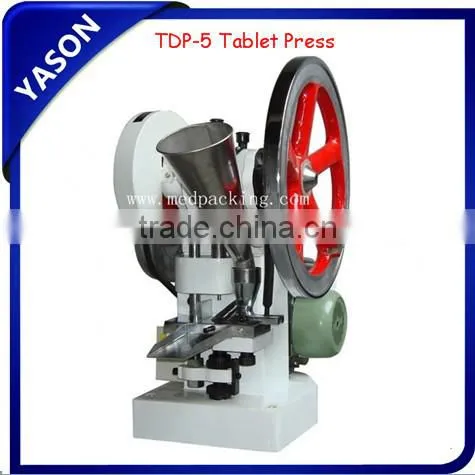

Small Tablet Pill Press Machine TDP-5

Shenzhen Yason General Machinery Co., Ltd.
Small Tablet Pill Press Machine TDP-5 thumbnail-1
Small Tablet Pill Press Machine TDP-5 photo-1
US$ 850 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
YASON
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name YASON
Model Number TDP-5
Type Single Punch
Production Capacity 3800p/h
Max. Pressure(KN) 50KN
Max. Tablet Thickness(mm) 6mm
Max. Tablet Diameter(mm) 18mm
Voltage 220v or Customized, 110V or 220V or customized
Power(W) 750W
Weight 140KG, 140KG
Dimension(L*W*H) 700x380x695mm
Certification No Have
After-sales Service Provided No overseas service provided

Specifications

1.Die Customized accepted
2.excellent,adaptable,easy to use,easy maintenance,small size
3.Stainless Steel Material



Brand New TDP-5 single punch tablet press pill press



tablet machine with 1 set free round die





    Brand new,Good quality





Hot sell single punch tablet press



one of the best single punch tablet press machine



No special forms to fill out





A powerful electric motor and can also be hand operated





excellent,adaptable,easy to use,easy maintenance,small size





Can produce up to 3800 tablets per hour





Larger Diameter Tablets up to 18mm





  EXPRESS MAIL SHIPPING with TRACKING NUMBER





 ♣Introduction♣





A lot of the branded vitamin tablets on the high street have unnecessary additives and supplements that you just don’t need. This press allows you to mix the vitamins and supplements that you require for your exact diet and convert them into convenient pills.Maybe you are considering setting up a small business selling vitamin, weight loss or herbal tablets. If so this is the right press for you. It is able to produce up to 3800 tablets per hour, using a maximum presser of 50KN. It will run for hours continuously producing identical tablets time after time, giving your business a professional look.





TDP-5 type tablet press,able to make powder and granular material compressed into acircular shaped tablet.Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units.The machine performance is excellent,adaptable,easy to use,easy maintenance,small size,light weight.Without electricity may could also be hand-pressed.A large pressure of tablet press machines,filling a large depth,thus the size range of tablet is large,able to adapt to the pharmaceutical industry to produce a variety of tablet medicine requirements and other industry requirements of produce similar products,deeply welcomed by customers of various industries.



                       ♣Technical Parameters♣





Voltage

110V or 220V or customized

Maximum pressure

50kn

Maximum diameter

18mm

Maximum thickness

6mm

Output

3800 pieces/h

Power

220V 750W,1400 rev/min

Dimension

700x380x695mm

Weight

140kg





 ♣Feature♣



This great little machine is designed for pressing tablets from various granular materials for use in pharmaceuticals,various chemicals,food products and a host of other uses. Typically it can be found in hospitals,science research institutions and is used for trial manufacturing in labs to produce small to medium production amounts of different kinds of tablets. Up to 3800 tablets per hour can be achieved. It features a small desktop type press, a powerful electric motor and can also be hand operated. The depth of the filling material, tablet pressure and thickness of the tablets is easily adjusted. This machine comes complete with 1 set of punch and die included.



Following are the TDP-5 single tablet press's amazing functions:



  • Able to make powder and granular material compressed into a circular shaped tablet
  • Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units
  • Larger Diameter Tablets up to 18mm
  • Presses both Round and Irregular Tablets
  • Larger Motor and Compression Force
  • Adaptable,easy to use,easy maintenance,small size,light weight
  • It will run for hours continuously producing identical tablets time after time
  • Friendly Support and Prompt Services
  • No special forms to fill out
  • Up to 3800 tablets per hour can be achieved,using a maximum presser of 50KN
  • A powerful electric motor and can also be hand operated





♣How to use♣





1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.





2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition.



                          ♣Item Units and Pictures♣



What you will get



  • 1 X Single punch tablet press machine
  • Operation Manual will be sent by e-mail

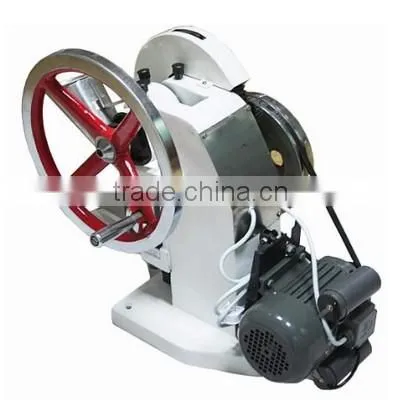

Small Tablet Pill Press Machine TDP-5Small Tablet Pill Press Machine TDP-5Small Tablet Pill Press Machine TDP-5

Small Tablet Pill Press Machine TDP-5



FAQ







1.What I should do to choose the best machine for us?







Answer:







1)Tell me the diameter of the pill you need to press,we will suggest you the most economical one,TDP-1.5,TDP-5,TDP-6 can be chosen.







2)Tell me the voltage you need for the machine.220V or 110V(Needs customized)







2.Does molds customized accepted?







Answer:Yes.Please send us your mold design,and diameter you need,then we'll offer you the best price according to your requirement.







3.Do you have manual or operation video for us to know more about the machine?







Answer:Yes,we'll send you the manual and operation video after you ask from us.







4.If there's some spare parts broke,how to solve the problem?







Answer:First of all,please take the pic or make a video to show us the problem parts.
