Home > Packaging & Printing > Packing Machinery > Sealing Machine > SF150 Automatic Continuous Plastic Bag Sealing Machine,Band Sealing Machine

SF150 Automatic Continuous Plastic Bag Sealing Machine,Band Sealing Machine

SF150 Automatic Continuous Plastic Bag Sealing Machine,Band Sealing Machine photo-1
US$ 250 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, plastic bag, film, aluminum
Packaging Type:
Bags, Film, Foil, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, plastic bag, film, aluminum
Packaging Type Bags, Film, Foil, Pouch
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 600W
Place of Origin Zhejiang, China
Brand Name Yason
Model Number SF150, SF150
Dimension(L*W*H) L1000* W400*H450 MM
Weight 35kg
Certification No have
After-sales Service Provided No overseas service provided



♦Introductions♦

The machine is suitable for sealing and bagmaking of various plastic and compound films and is a best sealing equipment to be widely used in such sectors as food, pharmaceutical, chemical industry, daily cosmetics, native and special local products, vegetable seeds, electronic components etc.



♦Performance And Characteristics♦

With the electronic thermostatically control and the autotransportation device, the machine can make various shapes of plastic film bags and be used for setting of various packing lines without limiting the sealing length; having the characteristics of high effectiveness of continuous sealing, reliable quality, reasonable construction, convenient operation etc.

    Of the series machines there are horizontal type and vertical type, the horizontal type is for packing and sealing of drying goods; the vertical one is used for liquid goods.



♦Construction And Working Principle♦

    The machine consists of frame, speed regulator, sealing length regulator,temperature control, drive and transportation devices.

    When it turns on, the electrothermal component produces quantity of heat to make the temperature on both upper and lower heaters promptly raised and adjusts the temperature and speed necessary for the sealing material through the temperature control meter and the speed regulator, the plastic packing bag is transmitted by the conveyor belt with its sealing part sent into between the two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the plastic film bound after being heated, then the bag is cooled in cooling area, its sealing part, rolled by the pattern roller or the inker wheel, is made out with stripes or netted veins and the necessary words.

    The drive part consists of sealing braids, lead belt and conveyor belt all in synchronistical running driven by a motor.



Main Specifications♦

Power Supply

110V 220-240V/50-60Hz 1Phase

Power

500W

Sealing Speed

0-12M/min(Adjustable)

Sealing Width

6-15mm(Adjustable)

Temp. Range

0-300°C

Sealing film thickness

0.02-0.08mm

No. Of Printing Words

2lines 30letters with inker

Exterior Dimensions

810x380x300mm

Conveyor loading

5kg

Machine weight

23kg

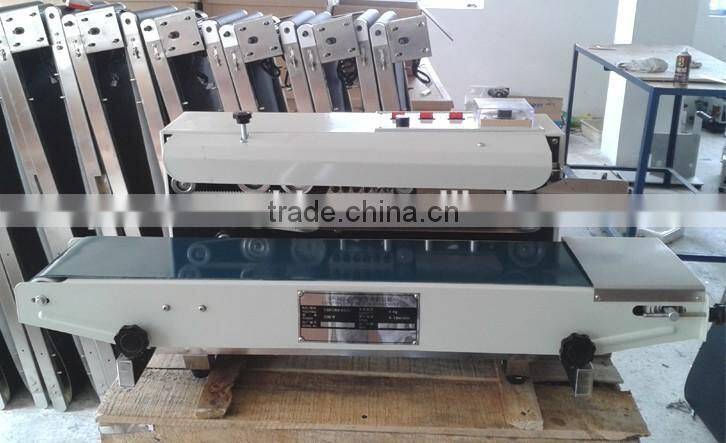

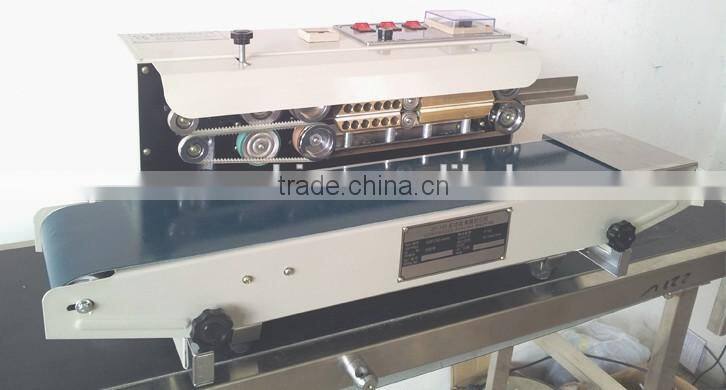

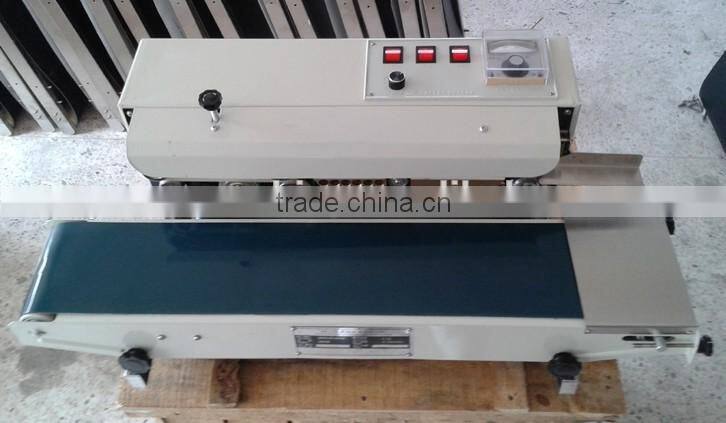

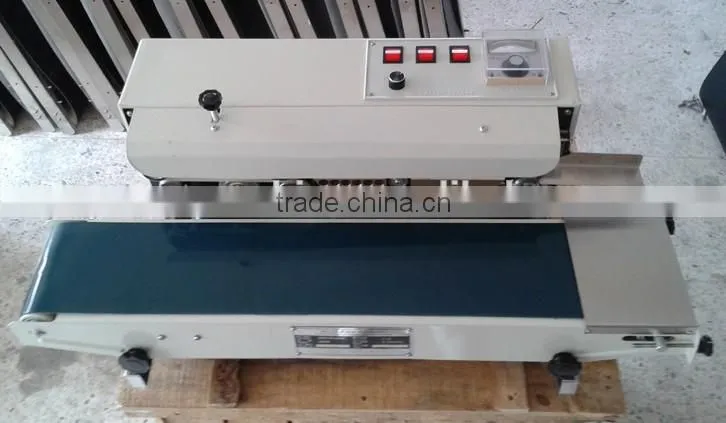

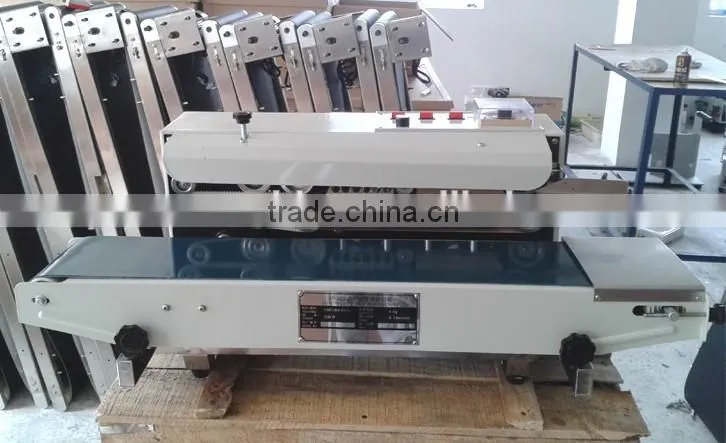

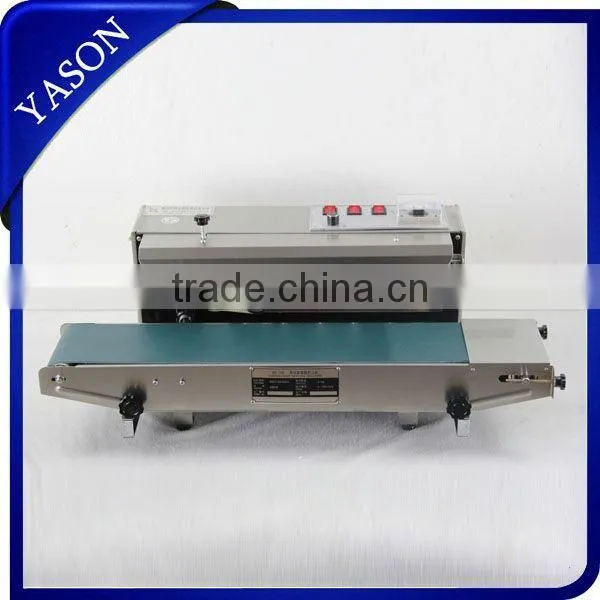

Product Pictures
