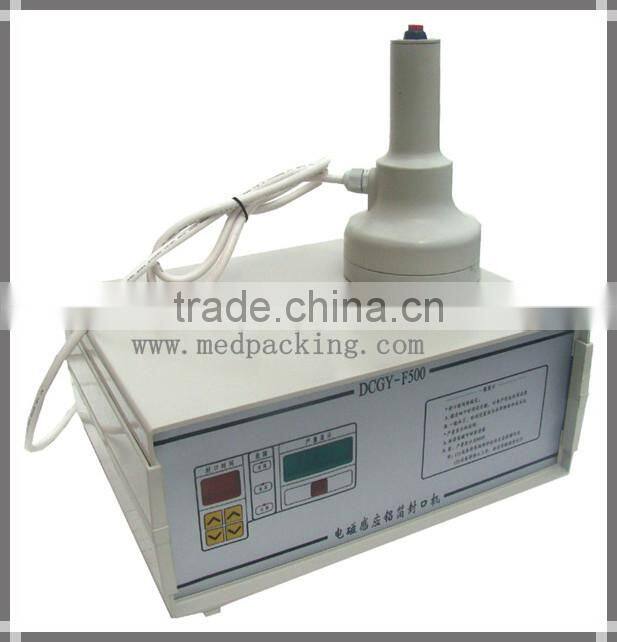

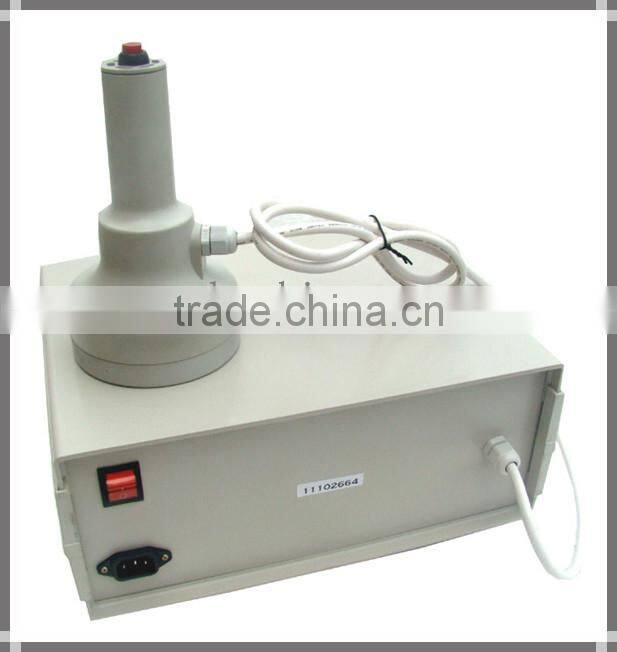

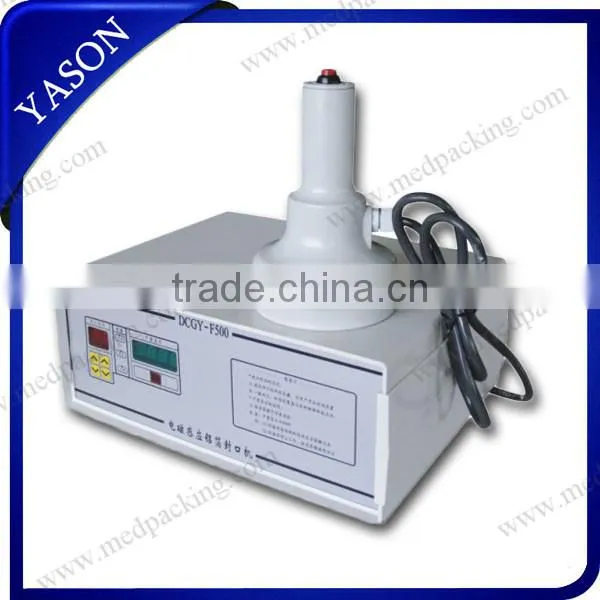

Handheld Small Aluminum Foil Induction Sealing Machine Suitable

You can use bottle diameter 20-100 mm

Device Name: electromagnetic induction sealing machine

Equipment Model: DL-500E-ZN intelligent (adapted bottle diameter 15-100 mm)

Equipment Introduction

 The hand-held electromagnetic induction aluminum foil sealing machine for pharmaceutical, chemical, food, beverages, cosmetics, lubricants and other industries plastic glass and other nonmetal packaging containers aluminum foil sealing operation.

Handheld induction sealing machine is used electromagnetic induction heating principle is the use of high-frequency current through the inductor coil generates a magnetic field, when the magnetic field lines through aluminum foil sealing material, instantly generate a large number of small eddy, resulting in aluminum foil own high-speed heat, melt the aluminum foil composite the sol thus attached to the closure of closure order, and to achieve rapid sealing purposes.

The material can be sealed polyethylene containers (PE), polypropylene (PP), polyester (PET), polystyrene (PS), ABS and glass, etc., can not be used for metal bottles and caps.

Equipment Features

Imported chip control, high efficiency, low power consumption.

Automatic counting function, effectively control the seal number.

Structural design is reasonable, the touch panel operation convenient and simple.

Automatic heating, overvoltage, overcurrent protection.

Wide voltage range.

Stable performance, long service life.

Auto power off function, no operation within 15 minutes, the machine automatically shut down

Technical parameters

Power supply: 220V

Power: 0.8KW-1.2KW (adjustable)

Static current: <0.1A

The maximum allowable power current: <6A

Enclosure rating: lp21

Operating Frequency: 30KHz (± 5%)

Adaptation bottle diameter :15-100 mm

Carton Size: 490 * 320 * 135mm

Weight: 2.7KG
