LK003M ticket dispenser Coffee vending machine on hot sale

The professional manufacture coin, Li Kang Electronic brings you unlimited economic

 Instructions of Use:

1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.

2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;

3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;

4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.

Function:

1.CPU Process control and counting precision

2.New structure design, Speed ticket

3.Prevent pulling tickets

4.Digital display, clear

5.Prevent idle running

6.Has a reverse function

7.Score / ticket set-up function

8. Mantissa memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)

Product parameters:

Operaing Voltage: DC+12V+10%

Ticket width: 29mm

Ticket length: 50mm~120mm

Operaing Current:<30mA

Load Current:<1 A

Output Mode:OC

Pulse width:50ms

Package: 20 PCS/ctn

Dimension: 540x275x270mm

G. W: 12.20kg

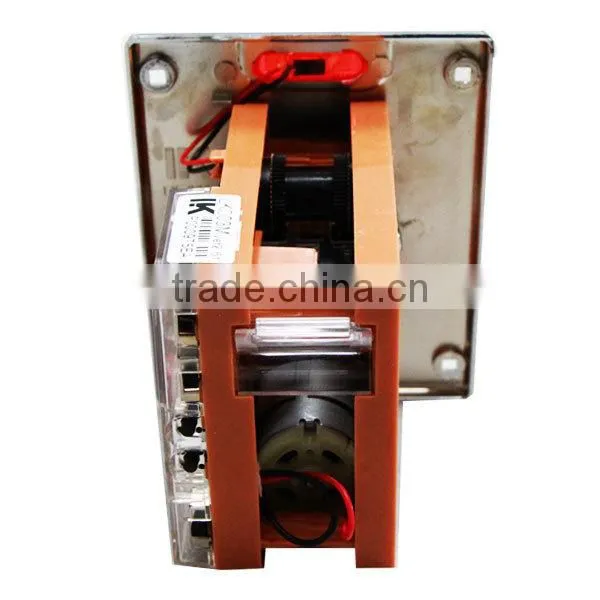

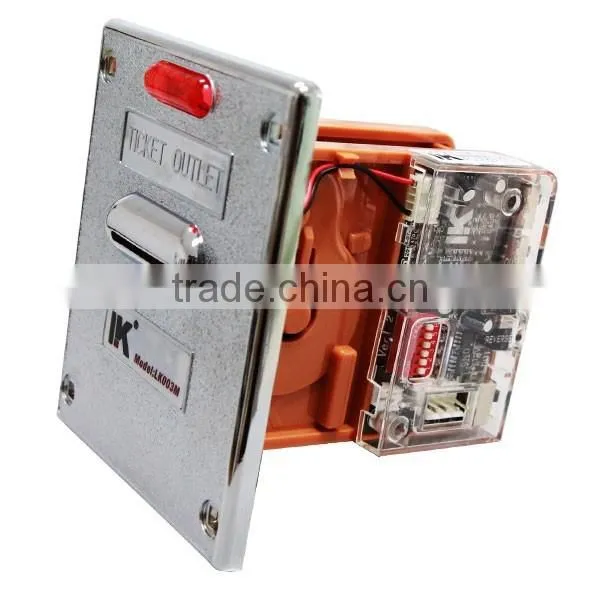

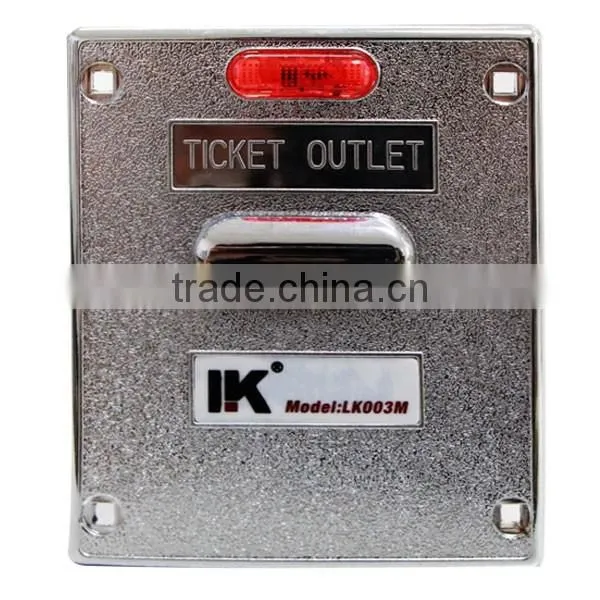

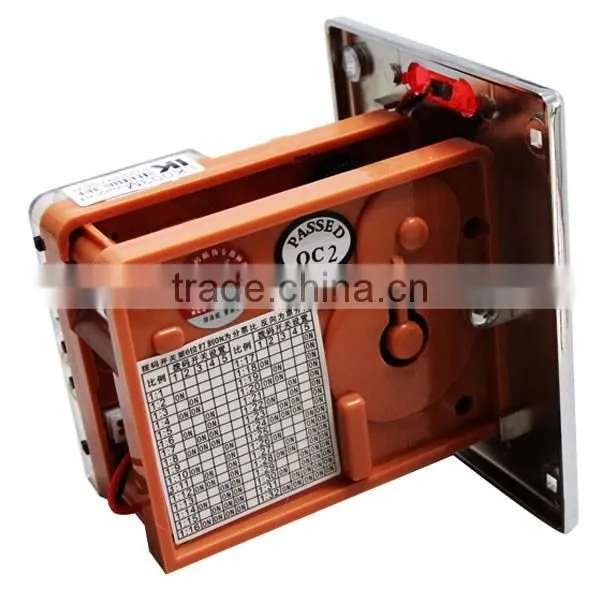

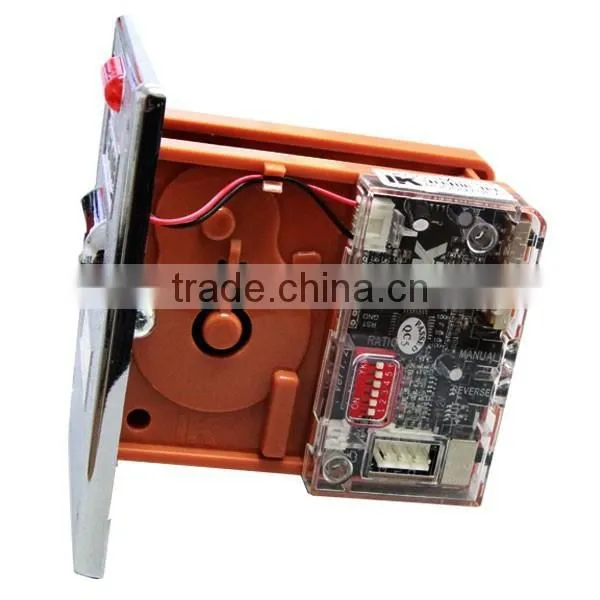

                  Some pictuers for you reference

 why us ??

Quality guaranteed

Special supervision team to control quality. All the products will be inspected carefully before delivery

 Competitive  price

Compare with other manufacturers in this field ,at the same quality , our price is competitive than others.

 Payment terms

By T/T, 30% of the payment should be paid in advance and the rest should be paid before delivery.

 Delivery time

1-5 days after payment

After service guarantee

 Assure you the best services at all times.

Warranty

We offer a warranty period for one year.

 Shipping

We will prepare favorable and professional shipping for you

Harmonious, clean production environment

We attend many exhibition every year

 If you are interested in our products, please do not hesitate to contact me soon !
