Help CenterFactory Price Wire Harness Pipe Connector
US$ 0.1 - 2.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Other, PA, polyamide
Technics:
Casting
Type:
Other, wire harness pipe connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Material
Other, PA, polyamide
Technics
Casting
Type
Other, wire harness pipe connector
Place of Origin
Guangdong, China
Model Number
1/2"
Brand Name
JF
Connection
Flange
Shape
Other, cylindricality
Head Code
Other, roundness
Contact me

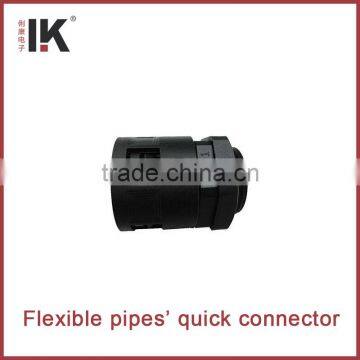

Factory price wire harness pipe connector
Product Description
Material:PA(polyamide)
Thread type:PG/Metric
Working temperature: -20~+110℃
Flame retardant grade:UL94-V0
Protection degree:IP66,using suitable seal ring
Color:Balck.Other colors are customizable
Property:Special design with inner locking buckle makeing the mounting and dismounting done by simmple plugging or pulling,without using tools.
| Physical property form | |||||||||
| Character | Material | Working temperature | Flame retardant rating UL94 | Level of protection | ROHS | Color | |||
| HB | V-2 | V-1 | V-0 | ||||||
| 074 | PA | -20℃~+110℃ | √ | IP66 | Black | ||||
| 076 | PA | -20℃~+110℃ | √ | IP66 | √ | Black | |||
Specification
Hose connector specification
| PG Flexible pipe's quick elbow connector from | |||||||||
| Model | Pipe Specification | Thread Specification | ID(mm) | A(mm) | B(mm) | C(mm) | E(mm) | Package(m/coil) | |
| JF10W | 1/4"(10mm) | PG7 | 7.5 | 17.5 | 46 | 8 | 12.5 | 50 | |
| JF13W | 5/16"(13mm) | PG9 | 10.5 | 20.5 | 56 | 10 | 15.2 | 50 | |
| JF15W | 3/8"(15.8mm) | PG11 | 13 | 23 | 60 | 10 | 18.6 | 50 | |
| JF18W | 18.5mm | PG13.5 | 16 | 28 | 69 | 10 | 20.4 | 25 | |
| JF21W | 1/2"(21.2mm) | PG16 | 17 | 30 | 73 | 12 | 22.5 | 25 | |
| JF25W | 25mm | PG21 | 21 | 34 | 80 | 12 | 28.3 | 25 | |
| JF28W | 3/4"(28.5mm) | PG21 | 22.5 | 37 | 82 | 12 | 28.3 | 20 | |
| JF34W | 1"(34.5mm) | PG29 | 30 | 44 | 96 | 12 | 37 | 20 | |
| JF42W | 1-1/4"(42.5mm) | PG36 | 37 | 53 | 108 | 12 | 47 | 10 | |
| JF54W | 2"(54.5mm) | PG48 | 48 | 67 | 126 | 14.5 | 59.3 | 5 | |
| Meteic Flexible pipe's quick elbow connector from | |||||||||
| Model | Pipe Specification | Thread Specification | ID(mm) | A(mm) | B(mm) | C(mm) | E(mm) | Package(m/coil) | |
| JF10WM | 1/4"(10mm) | M10*1.5 | 6.5 | 17.5 | 46 | 8 | 10 | 50 | |
| JF13WM | 5/16"(13mm) | M12*1.5 | 8.5 | 20.5 | 56 | 10 | 12 | 50 | |
| JF15WM | 3/8"(15.8mm) | M16*1.5 | 12.5 | 23 | 60 | 10 | 16 | 50 | |
| JF18WM | 18.5mm | M20*1.5 | 16 | 28 | 69 | 10 | 20 | 25 | |
| JF21WM | 1/2"(21.2mm) | M20*1.5 | 15 | 30 | 73 | 12 | 20 | 25 | |
| JF25WM | 25mm | M25*1.5 | 21 | 34 | 80 | 12 | 25 | 25 | |
| JF28WM | 3/4"(28.5mm) | M25*1.5 | 21 | 37 | 82 | 12 | 25 | 20 | |
| JF34WM | 1"(34.5mm) | M32*1.5 | 27.5 | 44 | 96 | 12 | 32 | 20 | |
| JF42WM | 1-1/4"(42.5mm) | M40*1.5 | 35.5 | 53 | 108 | 12 | 40 | 10 | |
| JF54WM | 2"(54.5mm) | M50*1.5 | 44 | 67 | 120 | 14.5 | 50 | 5 | |
| G Flexible pipe's quick elbow connector from | |||||||||
| Model | Pipe Specification | Thread Specification | ID(mm) | A(mm) | B(mm) | C(mm) | E(mm) | Package(m/coil) | |
| JF54WG | 2"(54.5mm) | G1-1/2" | 42 | 67 | 120 | 14.5 | 47.8 | 5 | |
Detailed Images
Hose connector detailed pictures
Certifications
Hose connector had professional certification.
Other items
The flexible pipes
The holders
Application area
Our hose connector is used to connect the pipes,and they are used for protecting the wire from heavy equipment,vending machine,car,reteraurant,coffee room,school,subway station,shooping ,indoor and outdoor material and etc.
Company Information
Thanks for your interested in our hose connector,weclome to contact me if you have any question.
