Automatic Cement Block Moulding Machine/Hydraulic Press Brick Machine/4 Axis Terrazzo Cnc Machine

Name: Automatic Cement Block Moulding Machine/Hydraulic Press Brick Machine/4 Axis Terrazzo Cnc Machine
Brand: Lianke
Price: USD $10,000 - 30,000 / Set

FOB Price

USD $10,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Tile Forming Machine	Tile Type:	Concrete
Use:	Floor	Production Capacity:	1440 to 3840 pieces per 8h	Place of Origin:	Henan, China
Brand Name:	Lianke	Model Number:	MYW-6	Power(W):	5500
Voltage:	380 V	Dimension(LWH):	2700 x 1500 x 2500 mm (main machine)	Weight:	5 ton (main machine)
Certification:	ISO 9001	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Product Overview

Automatic Cement Block Moulding Machine/Hydraulic Press Brick Machine/4 Axis Terrazzo Cnc Machine

The full-automatic concrete terrazzo tile making machine is the most advanced innovative, cost-effective

and eco-friendly professional tile forming equipment by far.

1) Main Technical Information

Main technical parameters of the full-automatic concrete terrazzo making machine:

#	Main Technical Parameters	MYW-6 Cement Tile Machine	MYW-7 Cement Tile Machine	MYW-8 Cement Tile Machine
1	Voltage	380 V	380 V	380 V
2	Molding Cycle	7-8 pieces/minute	5-6 pieces/minute	3-5 pieces/minute
3	Molding Pressure	128 ton	250 ton	350 ton
4	Output Per 8 Hours	3360-3840 pieces	2400-2880 pieces	1440-2400 pieces
5	Normal Floor Tile Size 1	300x300x15 mm	400x400x15 mm	500x500x20 mm
6	Normal Floor Tile Size 2	400x400x15 mm	500x500x20 mm	600x600x30 mm
7	Maximum Floor Tile Size	400x400x70 mm	500x500x70 mm	600x600x70 mm
9	Power of the Main Machine	5.5 KW	7.5 KW	15 KW
10	Weight of the Main Machine	5 Ton	6.8 ton	7.8 ton
11	Dimension of the Main Machine	2700x1500x2500 mm	2700x1500x2500 mm	3300x1600x2700 mm

If the tile size is not big enough for you, we could also supply other models to produce tiles at sizes such as

800*800mm, 900*600mm, 900*900mm, 1000*1000mm, 1200*600mm, etc.

2) Main Components

The full-automatic concrete terrazzo tile making machine includes the following parts:

#	Product Name

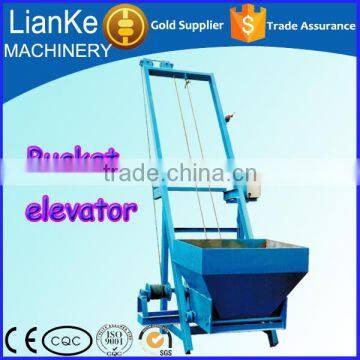

1	one bucket elevator

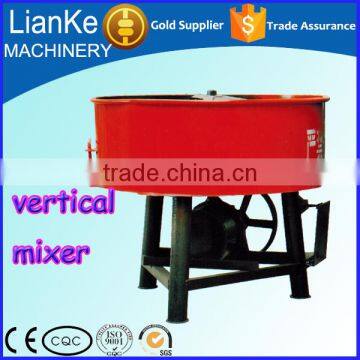

2	one vertical mixer

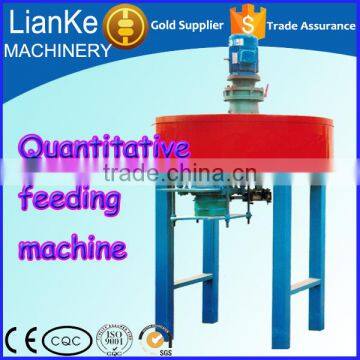

3	one quantitative feeding machine
4	one terrazzo tile press machine
5	one tile mould

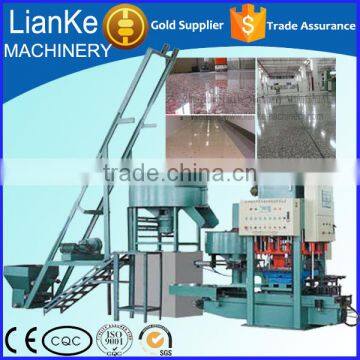

3) Close View of the terrazzo tile making machine :

Working Principle

A) Machine Video Links on YouTube:

1. https://youtu.be/JZKpHhZgPYM

2. https://youtu.be/MXZDYtF4PEI

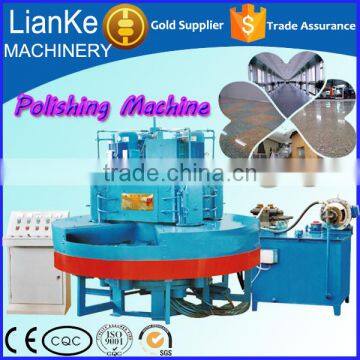

3.( terrazzo polishing machine ) https://youtu.be/_hY6zM9L8Vc

B) Raw Material:

Mix water, raw material such as cement, stone particles and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete terrazzo producing machines. If different moulds such as roof tile moulds are applied, roof tiles can be obtained.

C) Working Flow:

The working flow of the extrusion type terrazzo tile making machine is as follows:

D) Real Work Flow (terrazzo polishing machine is optional):

E) Photo of Terrazzo Floor Tiles or Terrazzo Wall Tiles in Buildings :

Features& Advantages

A) Features

Features of the new type full-automatic concrete tile making machine:

1) Multi-purposes via moulds changing

2) Easy to operate, environment-protective

3) Extrusion molding by computer numerical control (CNC)

4) Taiwan Delta PLC <Programmable Logic Controller> and HMI <Human Machine Interface> system

B) Advantages

Advantages of the tiles produced by the new type full-automatic concrete tile making machine:

1) Easy to construct

2) Good heat insulation

3) Strong wind resistance

4) Unique water-proof structure

5) Diversified shapes and various colors

6) Freezing-thawing resisting and weathering-resistant

Workes and engineers at Lianke Machinery always pay much attention on details when manufacturing the concrete tile making machines while the details usually decide the smooth running:

Our Services

A) Our Services

We can provide more than the following services:

1) Design and help adjust the production flow and equipment layout for free.

2) Supply the foundation drawing of the production line for free.

The workshop layout diagram of the MYW-8 full-automatic concrete tile making machine is as follows:

Note:

A. Drain: In actual scene, a drain along side the main machine is required.

This is a sectional drawing of the production line, so the drain is drawn on one side for your easy understanding.

B. Boiler plant: The boiler plant is optional in this production line and is not included in our quotation for

this production line.

B) Quality Guarantee

High Quality is our Promise; Being Trustful is our Responsibility.

1) The quality guarantee is 12 months after installation and commissioning.

2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.

Any way, we will help solve any problems the customer comes across in the operation and provide life-long

maintenance for the machine.

Packaging & Shipping

We are customer-oriented and quality-focused.

We have established a long-term business relationship with lots of international freight forwarding companies to provide you with fast and safe shipping.
