Cement Terrazzo Tiles Machine/In-Door Cement Terrazzo Tile Machine In Ethiopia/Concrete Terrazzo Tile Making Machine
The full-automatic concrete terrazzo tile making machine is the most advanced innovative, cost-effective
and eco-friendly professional tile forming equipment by far.
1) Main Technical Information
Main technical parameters of the full-automatic concrete terrazzo making machine:
| # | Main Technical Parameters |
MYW-6 Cement Tile Machine |
MYW-7 Cement Tile Machine |
MYW-8 Cement Tile Machine |
| 1 | Voltage | 380 V | 380 V | 380 V |
| 2 | Molding Cycle | 7-8 pieces/minute | 5-6 pieces/minute | 3-5 pieces/minute |
| 3 | Molding Pressure | 128 ton | 250 ton | 350 ton |
| 4 | Output Per 8 Hours | 3360-3840 pieces | 2400-2880 pieces | 1440-2400 pieces |
| 5 | Normal Floor Tile Size 1 | 300x300x15 mm | 400x400x15 mm | 500x500x20 mm |
| 6 | Normal Floor Tile Size 2 | 400x400x15 mm | 500x500x20 mm | 600x600x30 mm |
| 7 | Maximum Floor Tile Size | 400x400x70 mm | 500x500x70 mm | 600x600x70 mm |
| 9 | Power of the Main Machine | 5.5 KW | 7.5 KW | 15 KW |
| 10 | Weight of the Main Machine | 5 Ton | 6.8 ton | 7.8 ton |
| 11 | Dimension of the Main Machine | 2700x1500x2500 mm | 2700x1500x2500 mm | 3300x1600x2700 mm |
If the tile size is not big enough for you, we could also supply other models to produce tiles at sizes such as
800*800mm, 900*600mm, 900*900mm, 1000*1000mm, 1200*600mm, etc.
2) Main Components
The full-automatic concrete terrazzo tile making machine includes the following parts:
| # | Product Name | |||

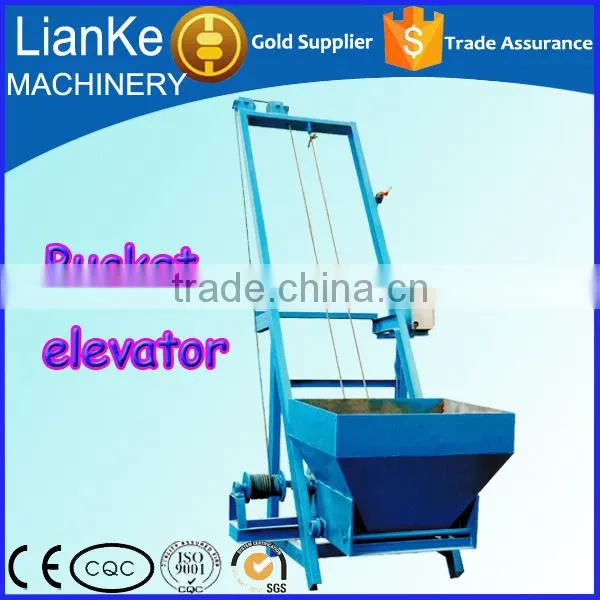

| 1 | one bucket elevator | |||

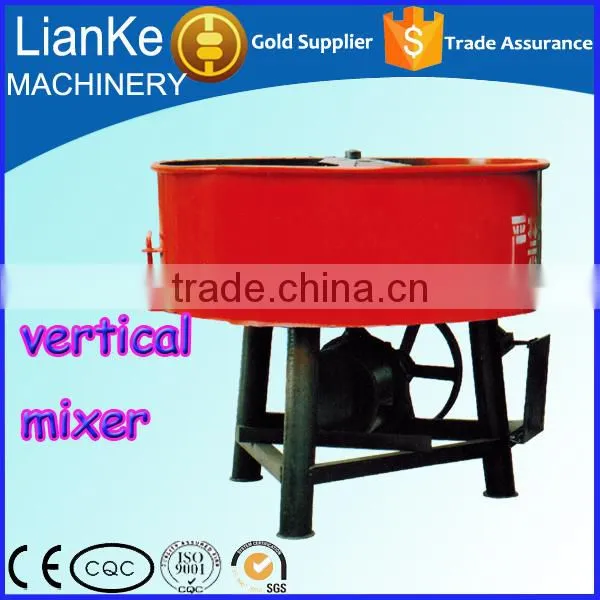

| 2 | one vertical mixer | |||

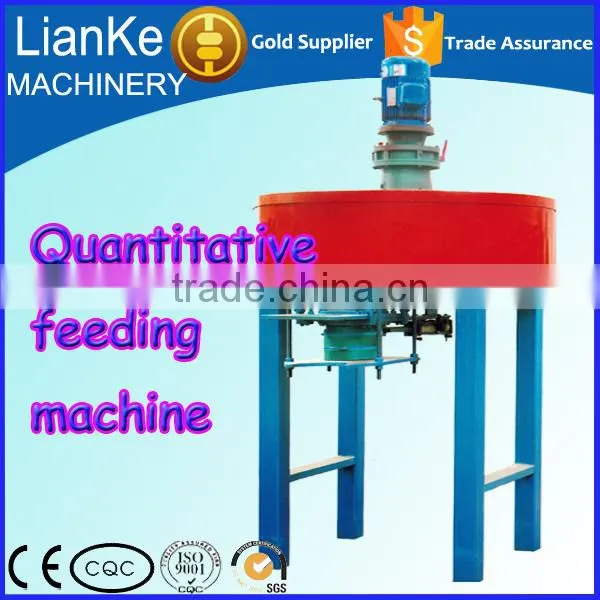

| 3 | one quantitative feeding machine | |||
| 4 | one terrazzo tile press machine | |||
| 5 | one tile mould | |||

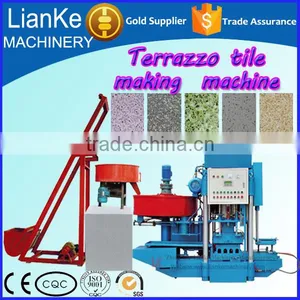

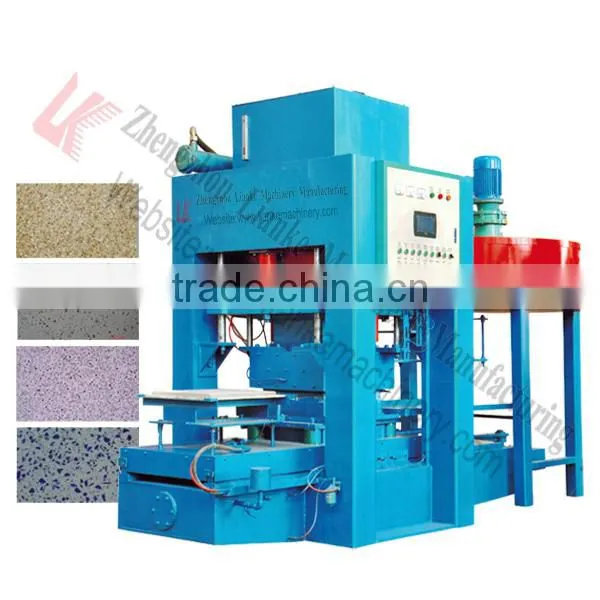

3) Close View of the terrazzo tile making machine :
A) Machine Video Links on YouTube:
1. https://youtu.be/JZKpHhZgPYM
2. https://youtu.be/MXZDYtF4PEI
3.( terrazzo polishing machine ) https://youtu.be/_hY6zM9L8Vc
B) Raw Material:
Mix water, raw material such as cement, stone particles and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete terrazzo producing machines. If different moulds such as roof tile moulds are applied, roof tiles can be obtained.

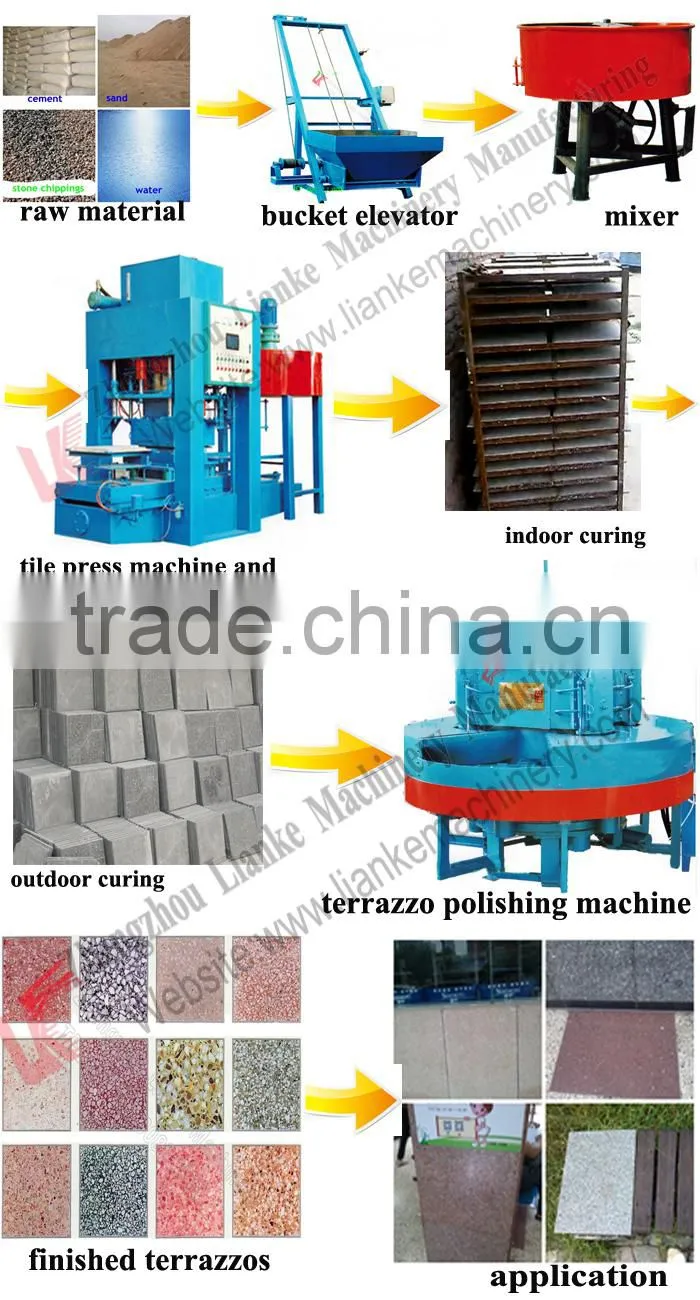

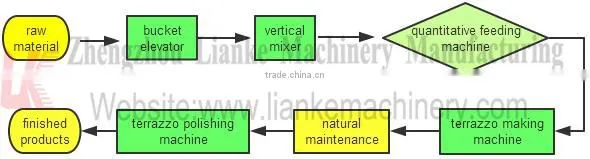

C) Working Flow:
The working flow of the extrusion type terrazzo tile making machine is as follows:
D) Real Work Flow (terrazzo polishing machine is optional):

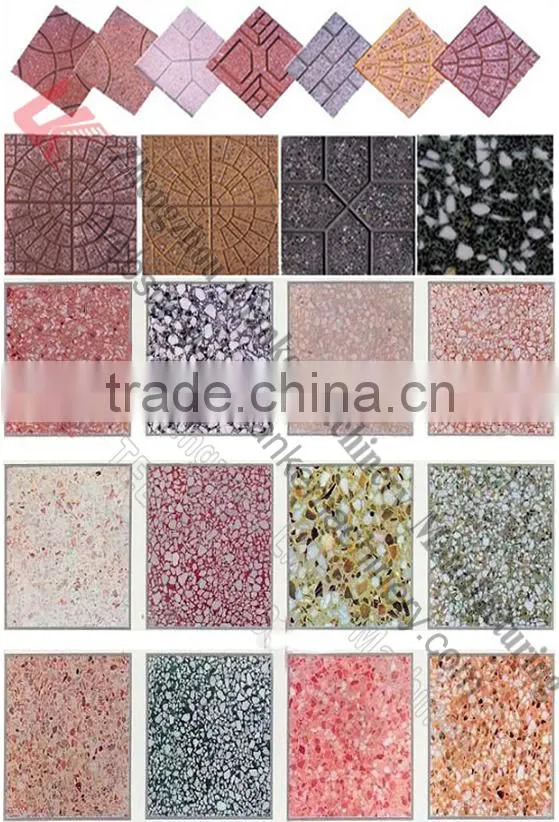

E) Photo of Terrazzo Floor Tiles or Terrazzo Wall Tiles in Buildings :
A) Features
Features of the new type full-automatic concrete tile making machine:
1) Multi-purposes via moulds changing
2) Easy to operate, environment-protective
3) Extrusion molding by computer numerical control (CNC)
4) Taiwan Delta PLC <Programmable Logic Controller> and HMI <Human Machine Interface> system
B) Advantages
Advantages of the tiles produced by the new type full-automatic concrete tile making machine:
1) Easy to construct
2) Good heat insulation
3) Strong wind resistance
4) Unique water-proof structure
5) Diversified shapes and various colors
6) Freezing-thawing resisting and weathering-resistant
Workes and engineers at Lianke Machinery always pay much attention on details when manufacturing the concrete tile making machines while the details usually decide the smooth running:
A) Our Services
We can provide more than the following services:
1) Design and help adjust the production flow and equipment layout for free.
2) Supply the foundation drawing of the production line for free.
The workshop layout diagram of the MYW-8 full-automatic concrete tile making machine is as follows:
Note:
A. Drain: In actual scene, a drain along side the main machine is required.
This is a sectional drawing of the production line, so the drain is drawn on one side for your easy understanding.
B. Boiler plant: The boiler plant is optional in this production line and is not included in our quotation for
this production line.
B) Quality Guarantee
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long
maintenance for the machine.
We are customer-oriented and quality-focused.
We have established a long-term business relationship with lots of international freight forwarding companies to provide you with fast and safe shipping.
Founded in 1985 as a government-owned enterprise, and then regrouped and re-registered in 2008 as a private company, Zhengzhou Lianke Machinery Manufacture Co.,Ltd is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of mainly building material making
machinery, and mining machinery such as cement roof tile machine, terrazzo
making machine, spacer block machine, paving block machine, brick machine, briquette coal machine, ball
press machine, mining processing equipment, crusher, dryer, rod machine, granulator, carbonization stove,
wood charcoal briquette machine,etc.
Ceritificates
Gain many certificates and honors from a lot of governmetal departments.
Dear customer, if you have any query, please feel free to contact me, I am always here to provide you with good services:
