low price home oil press machine,home oil press machine for olive and coconut,home oil making machine

FOB Price

USD $2,780 - $2,900 / Set

1 Set(Min.Order)

Supply Ability 600 Set / Sets per Month
Port QINGDAO

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Usage:	Peanut Oil	Type:	Other, Cold & Hot Pressing Machine
Automatic Grade:	Semi-Automatic	Production Capacity:	98%-100%	Place of Origin:	Henan, China

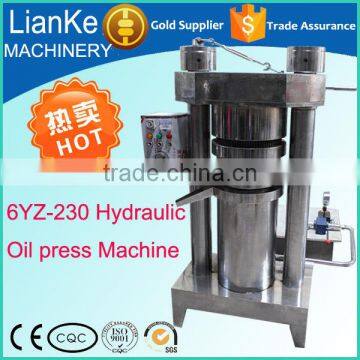

Brand Name:	LIANKE	Model Number:	6YZ-230	Voltage:	380V
Power(W):	1.5kw	Dimension(LWH):	6009101360mm	Weight:	1050kg
Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

low price home oil press machine,home oil press machine for olive and coconut,home oil making machine

hydraulic oil press machine video link:https://youtu.be/bKamJ1VP_ss

Features:
1.Beautiful appearance,flexibility and efficiency.
2.Space-saving, small size, small footprint.
3.simple and convenient operation.
4.high oil extraction rate.
5.The home oil press machine is suitable for cold pressing and hot pressing of anything containing oil seeds.

Common crop oil contact rate and oil extraction rate

1	Material	Oil content rate	Oil extraction rate
2	Sesame	47%-60%	42%-55%
3	Peanut	45%-50%	40%-45%
4	Sunflower seed	50%-55%	45%-50%
5	Rapeseed	37%-45%	33%-42%
6	Tea seed	35%-40%	30%-36%
7	Cotton seed	15%-20%	10%-15%
8	Soybean	13%-16%	8%-12%

Product Parameters

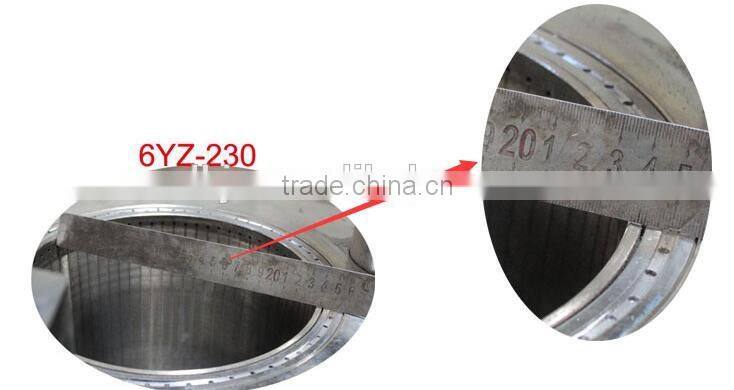

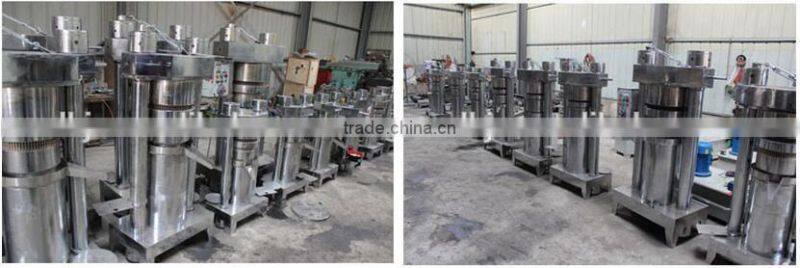

Our dimensions are real dimensions.All type have pictures were taken by factory.

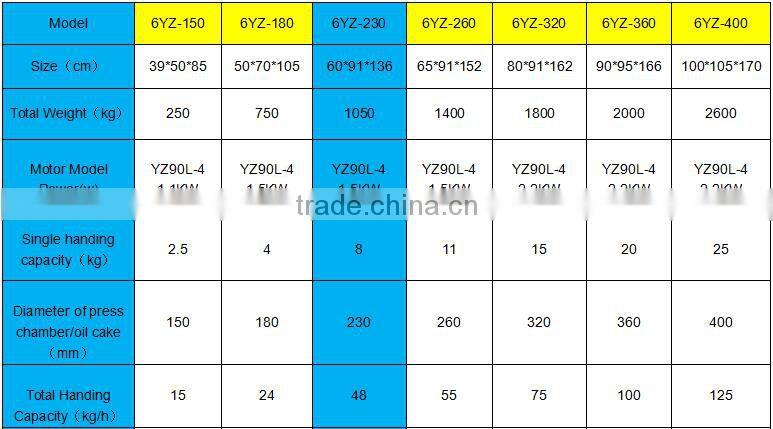

All type hydraulic oil press machine technical parameters

Products Details

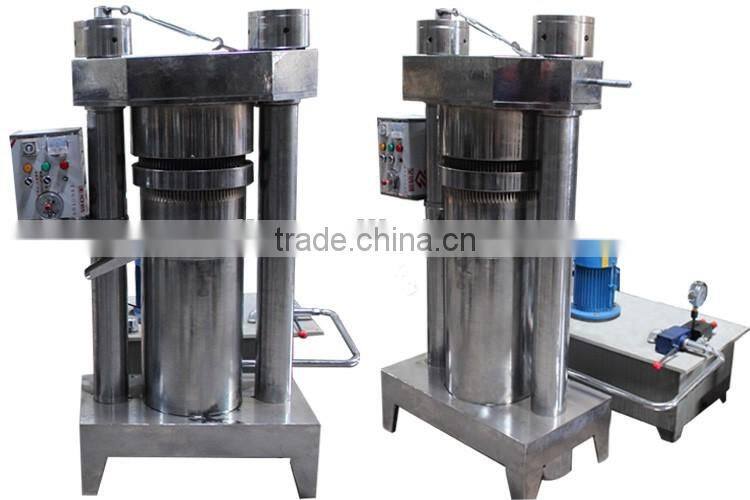

This machine consists three main parts
One	The main body
Two	The hydraulic system
Three	The electrical system

One:The main body.
It is the main part of this hydraulic oil press machine, which is insisted by top,packing barrel, oil outlet ,Hydraulic cylinder,pillar, base and so on.

Top lid

This parts of the machine are solid, that is to ensure machine can withstand greater pressure.

Hydraulic cylinder

Hydraulic cylinder has good sealing and withstand greater pressure.

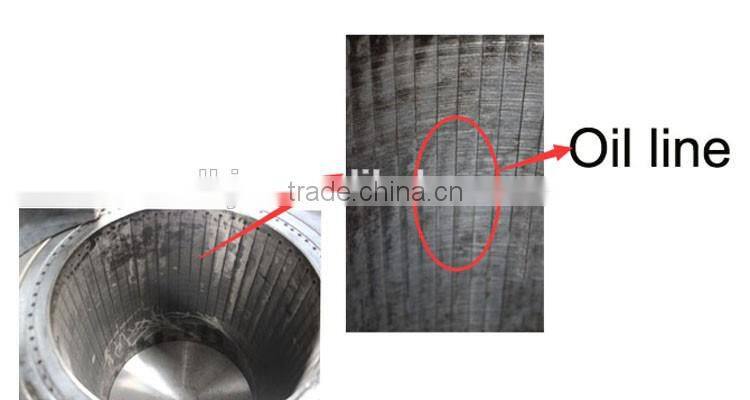

Packing Barrel

Observe the oil outlet of the oil, the oil from the oil line seepage and from the oil outlet.

Two:The hydraulic system.
Hydraulic system is the source power to squeeze oil crops,which is insisted by electromagnetic valve,tank,motor,oil pipe,pressure gage and so on.

Motor

Our motor is famous brand.

Tank

The machine we provide 1 year warranty.

Oil pipe

Oil pipe is metal of precision seamless steel pipe.

Three:The electrical system.
Which is insisted by Temperature Controller,voltmeter and pressure gage.

Knob

The right red light is power light, the middle green light is hydraulic pressing light,the left yellow light is light of temperature controller.

Temperature Controller

According to the material temperature to determine whether to open the following temperature controller switch.

Pressure Gage

high quality，Pointer accurate

Attention:

1.Type150 and type 180 adopt two-phase 220 voltage electricity.
Type230 to type 400 adopt three-phase 380 voltage electricity.
2.When the temperature of the material is the same as that of the machine, the oil extraction rate is the highest.

Working Principle

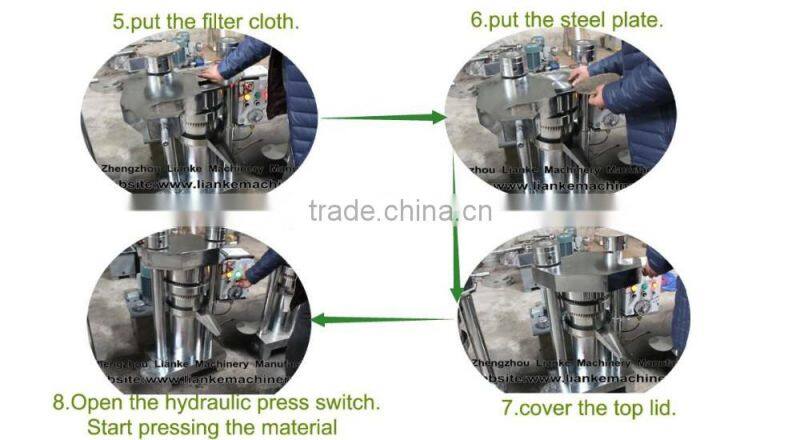

One:Open the top lid, put the bottom plate and filter cloth, and then put the material,Open the hydraulic press switch.

Two:Put the steel plate and filter cloth,cover the lid,Start pressing the material.

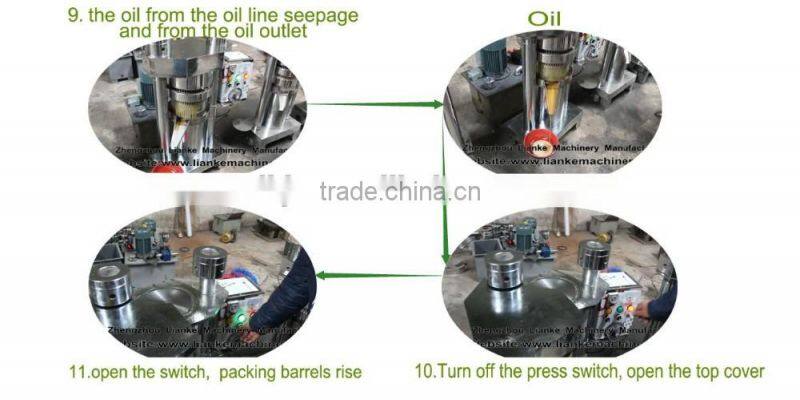

Three:Observe the oil outlet of the oil,the oil from the oil line seepage and from the oil outlet,when the oil is not pressed,close the press switch,this process takes about 3-5min.Turn off the press switch, open the top cover,open the switch again,so that the material barrels rise.

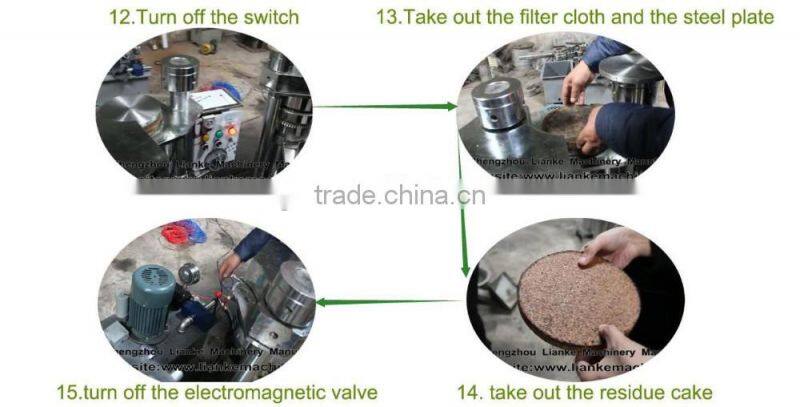

Four:Turn off the switch,Take out the filter cloth and the steel plate,take out the residue cake,turn off the electromagnetic valve.

Attention:

1.Hydraulic cylinder need down to lift the pump handle, when the hydraulic cylinder down to the bottom, put down the handle.
2.The entire pressing process takes 10-15 minutes.

Company&Warranty

Before the product leaves the factory, we will guarantee test every product carefully.

1.All the parts of the machine we provide 1 year warranty.
2.Within the 1 year warranty,if the machine have problems that are caused by impersonal factors,we have provide accessories for free and guide our customer to maintain.
3.When will delivery the oil press machine with an instruction manual in both English and Chinese to make sure our customer can operate the machine correctly.In the manual,we list some common breakdowns and solutions to them in the processing of the operation.

Packing & Delivery

Below is home oil press machine packing and delivery photo.

Packing Details:Wooden box package(Protect the goods from damage during shipping).

Delivery Details:Within 15 working days upon confirmation of purchasing order and advanced payment.
