small groundnut oil press machine/sesame oil extraction machine/hydraulic sunflower seeds oil press machine
- 600 Set / Sets per Month
- QINGDAO
- Credit Card
-
used for stone pe-250x400 quartz small jaw crushers
-
low comsuption mini rock diesel engine jaw crusher
-
china manufacturer provide used jaw crusher price
-
high efficiency pe 400 x 600 old mini jaw crusher for sale
-
manufacturer provide toggle platepe 150x250 jaw crusher machine
-
pe 400x600 mobile jaw crusher price with spare parts
Product Details
| Condition: | New | Usage: | Other, palm fruit/walnut/avocado/olive ect. | Type: | Other, Cold & Hot Pressing Machine |
| Automatic Grade: | Semi-Automatic | Production Capacity: | 98%-100% | Place of Origin: | Henan, China |
| Brand Name: | LIANKE | Model Number: | LK-230 | Voltage: | 220V |
| Power(W): | YZ90L-4 1.5KW | Dimension(L*W*H): | 600x910x1360mm | Weight: | 1050kg |
| Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Application

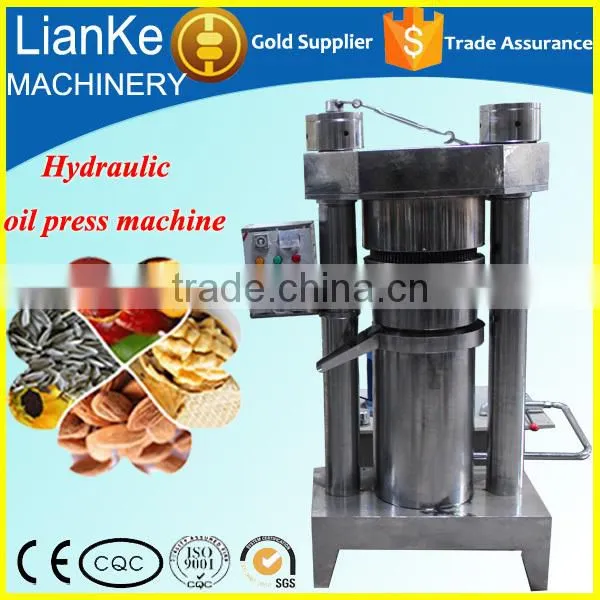

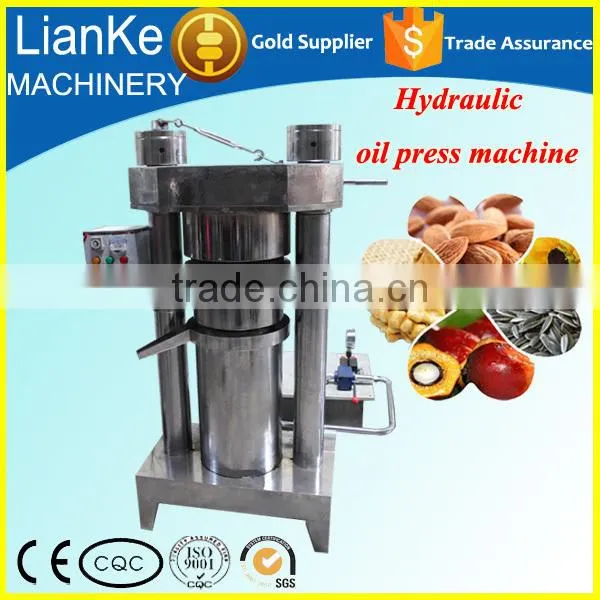

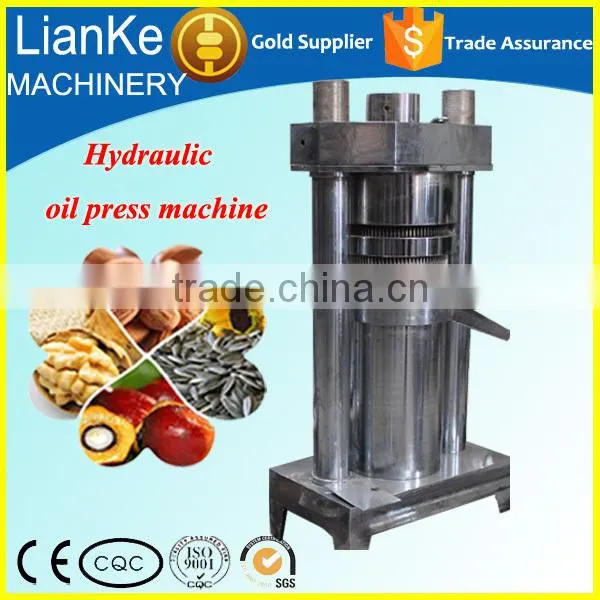

The hydraulic oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil，such as olives, sesame , flax seed, peanut kernel, Jasmine Oil,Pumpkin seeds, Walnut Kernel,Chili oil, rape seeds, etc. We believe this machinery can spread out quickly in overseas.It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional.
Different materials
Walnut/almond/sunflower seeds/ olive/chilli seed/grape seed/palm/peanuts/sesame/flaxseed/pumpkin seed ect.
Main Features
2. Simple structure, easy to operate. (It only has three parts: the body of the machinery,electrical control cabinet ,hydraulic pump station .and the electrical control cabinet only has three buttons what is easy to control.)
3.Quality assurance, high oil rate.(The thinner cake compaction,the higher oil rate.)
Our dimensions are real dimensions. And all type have pictures were taken by factory.
Main parts detail description
Electric control cabinet
The right red light is power light.The middle green light is hydraulic pressing light . After putting materials into the machine, twist rotary switch to right side, the machine starts working to press oil.The left orange light is heat ring control rotary switch, when need hot pressing just open the switch, if cold press,trun off the switch.
Tap cap,Stanchion and Pedestal the three parts are solid.
The three parts of the machine are solid, that is to ensure machine can withstand greater pressure and hold the whole machine.
pressure gage:Pressure gage is in 40-60Mpa. When the pressure gage shows 40Mpa, the hydraulic cylinder will automatically top 60Mpa, the hydraulic cylinder will automatically go down. It need to cycle 2-3 times.
Magnetic valve:You should clean it in time to avoid plug. We provide one-year warranty.
Oil pipe:The oil pipe is made of mental and will not leak oil.
1.Open the top lid, put the bottom plate and filter cloth, and then put the material,Open the hydraulic press switch.
3.Observe the oil outlet of the oil, the oil from the oil line seepage and from the oil outlet, when the oil is not pressed, close the press switch, this process takes about 3-5min.Turn off the press switch, open the top cover, open the switch again, so that the material barrels rise.
4.Turn off the switch, Take out the filter cloth and the steel plate, take out the residue cake, turn off the electromagnetic valve.
Attention:
Hydraulic cylinder need down to lift the pump handle, when the hydraulic cylinder down to the bottom, put down the handle.
The entire pressing process takes 10-15 min.
Product Warranty
1.All the parts of the machine we provide 1 year warranty.
2.Within the 1 year warranty,if the machine have problems that are caused by impersonal factors, we have provide accessories for free and guide our customer tomaintain.
3. All products in the factory will undergo a rigorous inspection to ensure that each machine is intact. We will provide each machine with Chinese and English manual, so that users can successfully use the product and solve some of the problems in the processing of the operation.
