Specifications

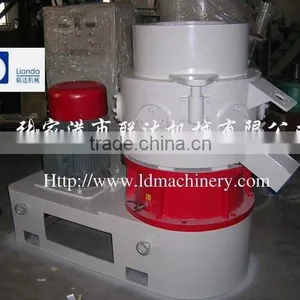

The agglomerator is used for PP,PE films,chemical fiber,poly,nylon and other materials to be pellets.Agglomerator adopts friction heating principle , it can crushing and granulating various kinds of plastic film all in once. It's an ideal device to turn waste film into profitable granules easyly and quickly .
Power by three-phase motor, driving by triangle belt, this device make the fixed blades and moving blades moving across and cut film material into pieces, in the meantime ,moving blades turning with high speed so the material forms a whirlpool because of centrifugal power. the friction between material and machine inner wall produces light heat which makes the material slightly plasticized. Then water will be added to make a sudden cold so the materials becomes granules.
Applications:
PP/PE films and bags agglomerated, PET films agglomerated, fiber agglomerated.
Specifications:
Product name |
Agglomerater |
|
Electric consumption(KW): |
Capacity |
Motor power |
100kg/h |
37kw |
|
200kg/h |
55kw |
|
300kg/h |
75kw |
|
400~450kg/h |
90kw |
|
500~550kg/h |
110kw |
|
Working voltage: |
380V, 3PHASE, 50HZ(based on customer’s requirements) |
|
Usage material |
Fiber, PP/PE film/bag, PET films etc.. |
|
Competitive Advantage:
We have specialized in this field for more than 15years, with high quality machinery and big capacity, low power consumption, and easy to maintain
Our service:
(1) Your inquiry related to our products or prices will be replied in 24hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict tes
