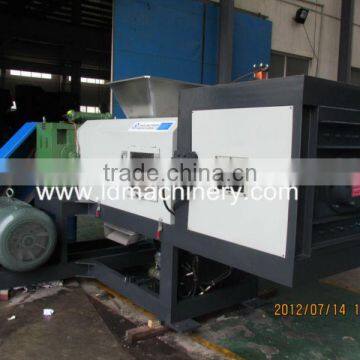

Plastic Film Squeezer Machine

Name: Plastic Film Squeezer Machine
Brand: LIANDA
SKU: 141462648
Availability: InStock

Zhangjiagang Lianda Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LIANDA

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name LIANDA

Model Number LD-500

Certification China patent

Warranty Whole life

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Plastic film squeezer we have got China patent certificate. 2. The last moisture is 3-5%. 3. Save electric engergy for you

Comparation of the two kinds dewatering machine

Item	Dewatering Machine	Crowded Drying Machine
Working Principle	The centrifuge force originated from the main shaft high speed rotating throws the film and water together to the screen net, the water was separated through the screen net, while the film stay inside the machine. Then the film are sent to the next procedure. The bearing base adopts water-cooling structure, this design is good for the heat elimination and the decrease of the bearing’s temperature rise, and then the bearing can last longer. This machine has advantages of high efficiency, good dehydration, easy operation, compact structure, easy cleaning, safe and reliable quality,etc.	The crowded drying machine can dry the film flake immediately. Equiped with rotating screw, special reduction gear box, which could dewater and drythe film flakes. Adopt Tainwan and Italian techniques.
Specifications	1,motor power :75KW 2,rotate speed :1500rpm 3,down-drain 4,Rotor effective length :1700mm 5,Product capacity :500kg/h	1,Motor power:45kw 2,Speed:50rpm 3,Hydraulic control system 4,With drain function 5,Automatic control 6,Screw diameter:φ350mm 7,100% closed designation.
New machine advantage	Save electricity enegry 30KW per hour, high product capacity
Final humidity	15%~20%	3%~5%
How to reach humidiity less than 3%	Equip four steps Hot Air pipe drying system	Equip one step Hot Air pipe
