High Capacity!Grain Cleaning and Separating Machine

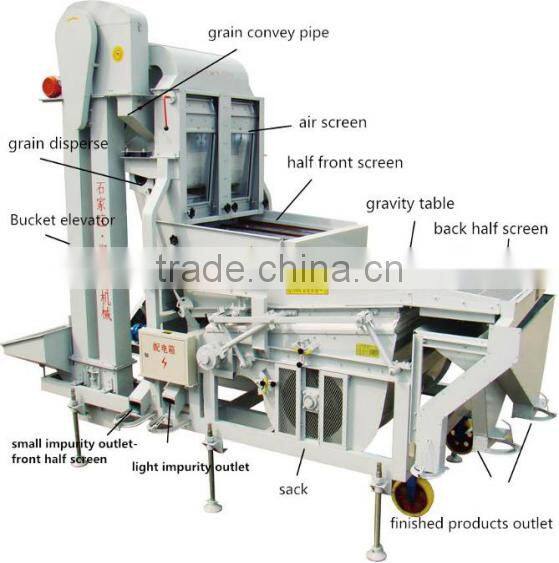

1 This machine is an upgrade version of increasing screening before the process of gravity table on the basis of 5XFZ-25.
2 The front sieve can remove small impurities in the materials after wind election, which can reduce the load of gravity table and blockage of small particles.
3 The machine can remove dust, chaff, blighted seed, budding seed, damaged seed (by insect), moldy seed, chaff, straw and other light and impurities, which improves the selection of proportion greatly.
Model |
5XFZ-25SC Aire-screen Cleaner with Gravity Table |
Sieve SIze |
Gravity table:1700mmx1600mm |
Front Sieve:1250mmx1200mm | |
Power(kw) |
Two fans, three motors (fan, elevator, rotary discharging valve) Fan motor for cyclone: 5.5KW Fan motor for large proportion platform: 5kw Elevator motor: 0.75kw Rotary discharging valve: 0.75KW Total: 12.5KW |
|
Capacity(t/h) Based on wheat |
10 |
Weight(kg) |
2150 |
|
Overall Size L×W×H(mm) |
3830x2400x3740 |
Voltage |
380V, 50HZ, three phases (must be three phases, voltage can be design to others) |
This kind of machine is suitable for many kinds of material.
The details:
Advanced technology machine used during the prodcuing
CNC Laser Cutting Machine(AMADA imported from Japan)
CNC Bending Machine(TRUMPE imported from Germany)
CNC Plasma Machine
Sand Blast Machine
Spraying Plastics Machine
Payment |
T/T, L/C |
Port |
XINGANG TIANJIN |
MOQ |
1 set |
Supply Ability |
100 sets per month |
Delivery |
30 working days after payment confirmed |
Package |
Bulk in Container or Wooden Box for LCL |
Our tem attend various international proffessional exhibition and conference.
