NDJ-1B,C,D,F Rotational Viscometer

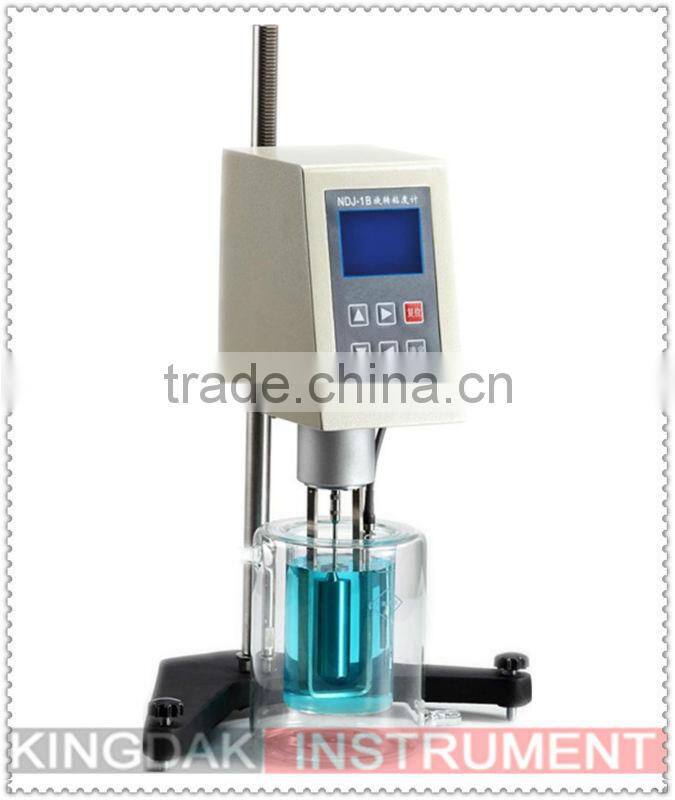

NDJ-1B Rotational Viscometer

Function:

NDJ-1B Rotary Viscometer is the update one of the NDJ-1 Rotational Viscometer with indicator. The instrument adopts microprocessor to digitize process, and the measurement result displays in LCD directly, and with printer port, may printer the measurement information. Moreover, the viscometer is with the characteristics of higher sensitivity, better reliability, and much more convenient operation than NDJ-1 Rotary Viscometer.

NDJ-1B Rotary Viscometer is used to measure the absolute viscosity of Newton liquid and apparent viscosity of Non- Newton liquid and it is widely used to measure all kinds of liquids such as: grease, paint, plastic, medicament, dope, adhesive, scour and etc.

Technical Details:

1. Measurement range:   10~2000000mPa·s

2. Rotator spec:         No. 1~4

3. Rotary speed:        0.3,0.6,1.5,3,6,12,30,60 rpm

4. Measurement error:   ±3%(F·S);

5. Power supply:       AC 220V±10%   50Hz±10%;

6. Ambient condition:   Temperature 5~35 °C, RH is not more than 80%

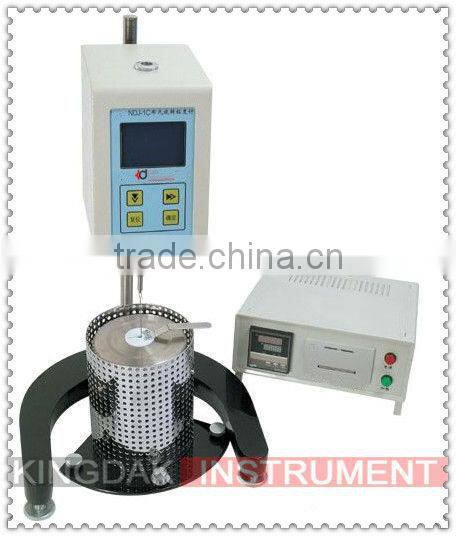

NDJ-1C Rotational Viscometer

Function:

The instrument is produced specially for determining the apparent viscosity of asphalt as per T0625-2000. It also can be used for determining the viscosity of various liquid of hot sol, paraffin, medicament and high polymer.

Technical Details:

1. Testing Range: 100~200000 mPa.s
2. Rotor: 21#, 27#, 28#, 29# total 4 nos.
3. Rotor Speed: 5, 10, 20, 50 r/m
4. Testing Mode: manual / automatic
5. Temperature Control Range: ambient ~ 200 °C
6. Temperature Control Accuracy: ±0.1 °C
7. Error: ±1% (Newton liquid)
8. Internal Volume: 10 cc
9. Available ambient environment:

(1)   Ambient: 5 °C ~ 35 °C

(2)   Relative Humidity: ≤ 80%

(3)   Power Supply: AC 220±10 V; 50 ± 1 Hz

(4)   Neither electromagnetic interference, nor concussion, nor corrosive air around instrument.

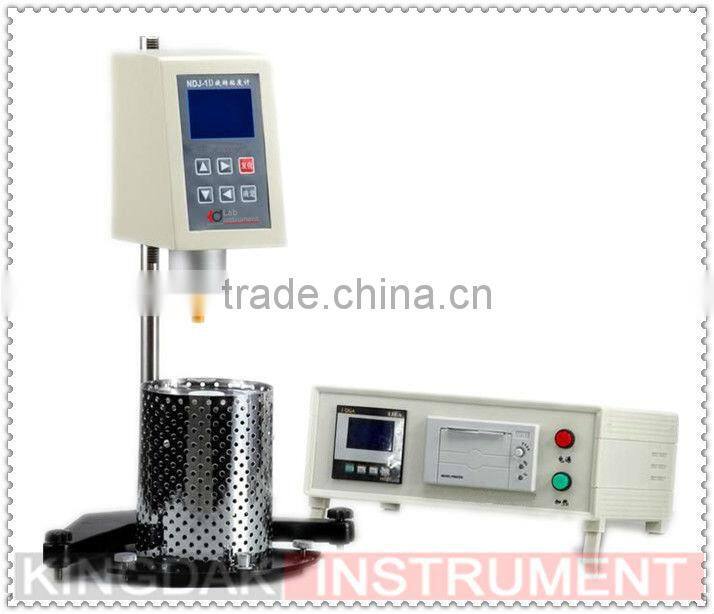

NDJ-1D Brookfield Rotational Viscometer

Function:

The instrument is used to test the absolute viscosity of Newton Liquid and apparent viscosity of non-Newton Liquid as per concerning standards. NDJ-1D, new type holds a large testing range and high accuracy, used in various realms of petroleum, highway, foodstuff, chemical, painting, cosmetic and so on.

Technical Details:

1. Highly bright LCD screen, technique of microprocessor, access data automatically.
2. Equipped with portable printer supporting output, or by RS232 attach to PC.
3. Test Range: 10 mPa·s~2000000 mPa·s (up to 4000000 mPa·s).
4. Measurement of Rotor: 4 kinds of 21,27,28,29 (rotors with enlarged range are selectable in our company).
5. Rotate Speed of Rotor: 0.5, 1, 2, 5, 10, 20, 50 r/min, gear 4.
6. Test Error: ±2% (F·S).
7. Test Forms: handwork and AUTO.
8. Temperature Control Range: ambient~200 °C.
9. Temperature Control Accuracy: ±0.1 °C.
10. Volume of Sample Holder: 20 ml.
11. Voltage: AC 220 V±10%, 50 Hz.
12. Ambient Temperature: 5 °C~35 °C.
13. Relative Humidity: less than 80%.

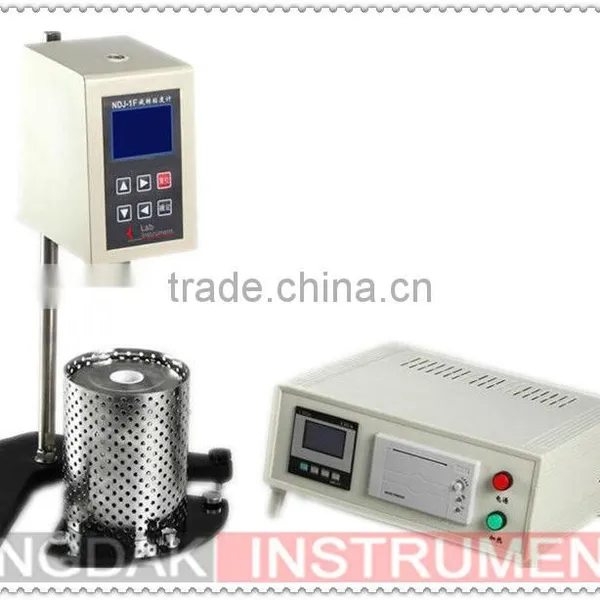

NDJ-1F Brookfield Rotational Viscometer

I. Summary

The NDJ-1F Brookfield rotation viscometer is designed and made according to the requirement of the T0625 <asphalt Brookfield rotation viscosity test (Brookfield viscometer method)> in the JTJ 052 <test regulation of the highway asphalt and asphalt mixture> of the communication industry standard of the People Republic of China. The instrument is the upgraded product of the NDJ-1B and NDJ-1C Brookfield rotation viscometers in our company. It is suitable to determine the absolute viscosity of the Newton liquids and the apparent viscosity of the non-Newton liquids.

The instrument adopts the advanced machine design technology, manufacture techniques and microcomputer technology to control the temperature, collect and process the data. The display screen is a white background light, ultra bright LCD screen. The instrument also equips a pin micro-printer for output. The measurement can be displayed by the display screen in real time and plotted out through the printer. In addition, the instrument can connect to the PC through the RS232 communication interface.

The instrument has the characteristics of high measure sensitivity, reliable results and beautiful model, as well as convenience to operate. It is widely used to determine the viscosity of various liquids such as asphalt, hot sol, paraffin, high polymer and so on.

II. Main Technical Specification and Parameter

1. measurement range: 25 mPa·s~1×10⁷ mPa·s ( If choosing the No.30 rotor, the measurement can extend to 2×10⁷ mPa·s)

2. Rotor: No. 21, 27, 28, 29 total four type of rotor (the No.30 is optional)

3. Rotor speed: 0.1 – 200 r/min stepless speed adjusting

4. measurement error: ±2% (F·S), ( choosing the No.30 rotor, it will be ±3% (F·S))

5. control temperature range: 25 °C~200 °C

6. control temperature accuracy: ±0.1 °C

7. Sample can cubage: 20 ml

8. power supply: AC 220 V ± 10%, 50 Hz

9. ambient temperature: 5 °C~35 °C (when the control temperature of the heater is close to the ambient temperature, turn on the air conditioner to allow the ambient temperature is approximately 5 °C lower than the control temperature of the heater)

10. relative humidity: ≤80%
