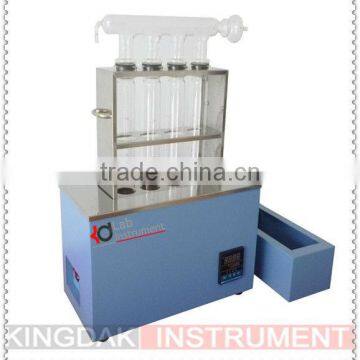

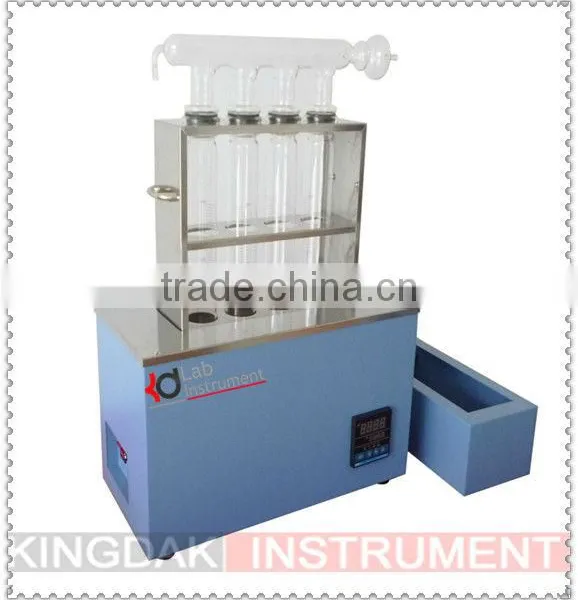

KDN-04D Infrared Digestive Furnace

KDN-04D  Infrared digestive furnace

Characteristics:

1. Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency
2. Type D digestive furnace adopts infrared heating and graphite conduction. Short heating time, small average temperature difference inside furnace, good consistency of sample digestive effect, high heat transfer efficiency
3. Machine box adopts specially made plastic spray steel; working area adopts stainless steel materials, has good corrosion resistance.
4. Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer
5. Has multiple protection: over pressure, over current, overheating
   1. Small and beautiful, easy to operate, user-friendly.

Technical parameters:

Temperature controlling mode: digital

Temperature control range: room temperature-600°C

Temperature control accuracy: ±1°C

Heating speed: 30°C/min

Measurement range: 0.1mgN-200mgN (mg nitrogen)

Measurement quantity: measure several varieties simultaneously at a time

                         (4 holes, 8 holes, 12 holes, 20holes)

Digest time: 60-90 min/batch (according to sample quantity)

Digestive pipe capacity: 300ml

Temperature control accuracy: ±1°C

Power: 1000W/1500W/2000W/2500W

Model difference:
