Photosynthetic Radiometer

Photosynthetic Radiometer photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KINGDAK
Model Number:
KLC-A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name KINGDAK
Model Number KLC-A
Power Electronic
Usage Other, agriculture

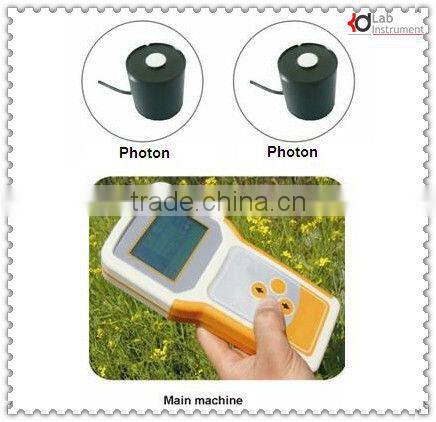

 LCD Portable Photosynthetic Radiometer / Photons Meter



Product Description:



1.In plant growth and development process, the radiation factor plays an important role.

2.First of all radiation is the energy of plant photosynthesis, the process of photosynthesis influence the formation of production and product quality.

3.Secondly, as a regulation of the energy, it will play an important role to the development of plants morphology, leaves shape and size as well as from vegetative growth to reproductive growth rate changes.

4.Photons meter mainly used for agriculture, forestry and other research and production departments for PAR radiation measurement. Its characteristics are the spectral response simulation probe photosynthetic function effectively, digital show, portable compact, with good accuracy and stability.





Characteristics:



1.Big-screen LCD, film-style keypad, can display real-time sampling date and time (year, month, date, minute, second), low-voltage warning, automatic shutdown.

2.GLZ-B model adopt RS232 interface, extract datum and import EXCEL for graphics, analysis software for free download and upgrade by computer.

3.Special suitcase, smart and convenient to operate in field.





Technical parameters:

Measuring range: 0-2,700 μ molm-2s-1
 Linearity: whole measuring length ±1%
 Resolution: 1 μ molm-2s-1
 Record time interval: 5s -90hr continuously adjustable
 Computer communication: USB 1.1
 Spectral wave range: 400-700nm
 Stability: change is less than ±2%/yr
 Power: 5AA batteries, 9V/2A power source
 Ultraviolet and infrared response: 0.5%
 Sensor communication: RS485
 Weight: 140g

Model difference:

Model
Function  Difference
KLZ-A
Without computer interface, can only store datum to the main controller
KLZ-B
Communication interface: RS485 single- channel, with computer interface, can not only store datum to the main controller, but also import datum to the computer for processing
KLZ-C

Communication interface: RS-485 double-channel, with computer interface, can record two parameters---PAR and illuminance, can not only store datum to the main controller, but also import datum to the computer for processing.



Photosynthetic Radiometer

 Photosynthetic Radiometer

Photosynthetic Radiometer

Photosynthetic RadiometerPhotosynthetic RadiometerPhotosynthetic Radiometer
