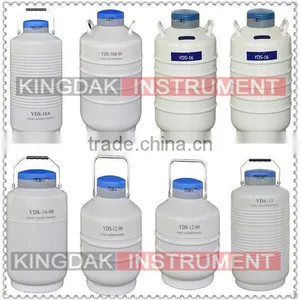

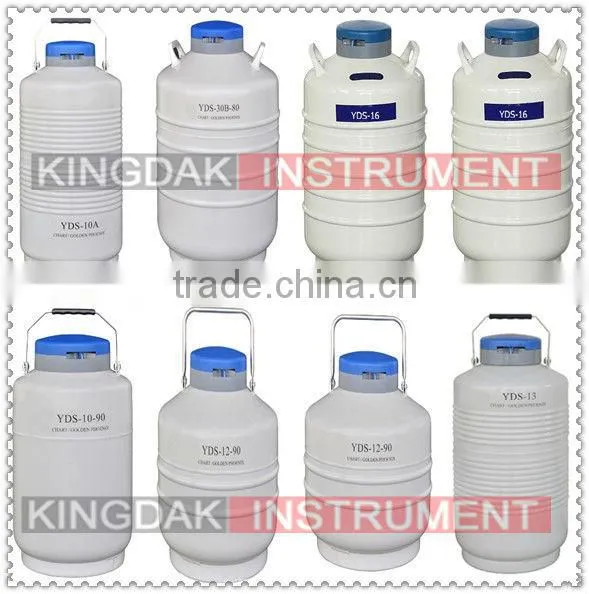

Liquid nitrogen containers are high-strength aluminum alloy structure, light emptyweight.Dewar vessle Liquid Nitrogen Biological Container for Storage
Introduction:
These moderate capacity containers are the best choice for customers who will store biological samples or liquid nitrogen for an extended period of time under static environment.
Main Features:
High-strength aluminum alloy structure;
Multi-layer thermal isolation design;
Optional locking cover to protect stored biological samples;
Protective jacket to prevent collision;
Two-year vacuum warranty.
Specification:
| Model | Unit | YDS-10A | YDS-10-90 | YDS-12-90 | YDS-13 | YDS-15 | YDS-16 | |
| Capacity | L | 10 | 10 | 12 | 13 | 16 | 17 | |
| Empty Weight | kg | 6.5 | 6.8 | 9 | 7 | 8.2 | 8.5 | |
| Neck Diameter | mm | 50 | 90 | 90 | 50 | 50 | 50 | |
| Outer Diameter | mm | 287 | 303 | 410 | 303 | 355 | 355 | |
| Height | mm | 605 | 538 | 470 | 600 | 600 | 620 | |
| Static Evaporation Loss | L/d | 0.09 | 0.18 | 0.26 | 0.1 | 0.1 | 0.1 | |
| Static Hold Time | d | 110 | 55 | 45 | 131 | 161 | 171 | |
| Canister Outer Diameter | mm | 38 | 70 | 70/43 | 38 | 38 | 38 | |
| Canister Height | mm | 276 | 120 | 127 | 276 | 120 | 276 | |
| Numbers of Canisters | ea | 6 | 6 | 6 | 6 | 6 | 6 | |
| Straw Holding Capacity (single level) | 0.5ml | ea | - | 2588 | 2588/1566 | - | 792 | - |
| 0.25ml | ea | - | 6192 | 6192/3438 | - | 1788 | - | |
| Straw Holding Capacity (double level) | 0.5ml | ea | 1284 | - | - | 1284 | - | 1284 |
| 0.25ml | ea | 2832 | - | - | 2832 | - | 2834 | |
| Numbers of Canes | ea | - | - | - | 24 | - | 24 | |
| Numbers of Vials | ea | - | - | - | 120 | - | 120 | |
| Optional Locking Cover | ea | √ | √ | √ | √ | √ | √ | |

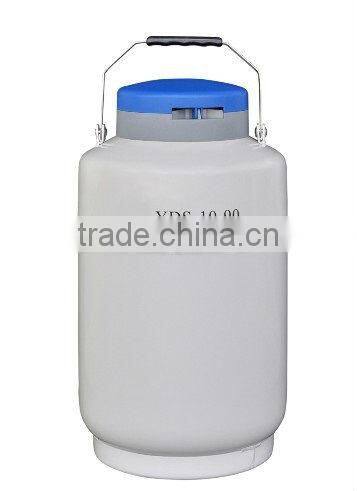

YDS-10A YDS-10-90

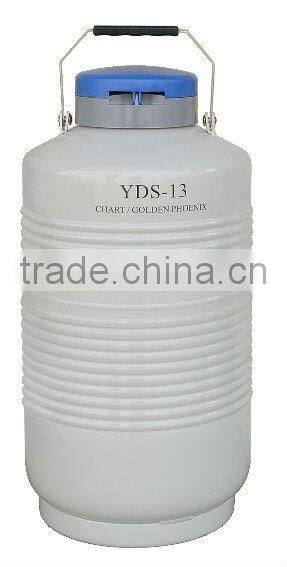

YDS-12-90 YDS-13

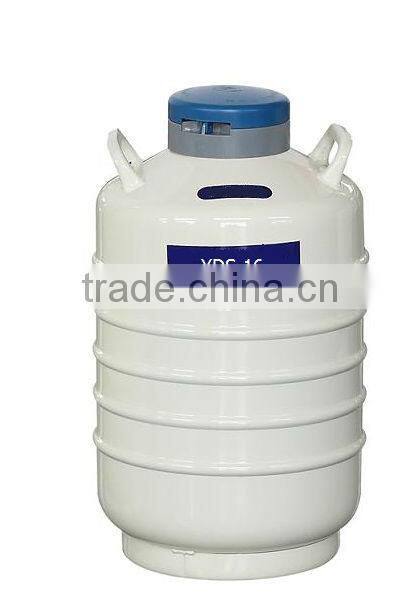

YDS-15;YDS-16
