KBT101F/KDG10-1(10 rollers) Chemical Dispensing Peristaltic Pump

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port SHANGHAI
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	KINGDAK
Model Number	KBT101F	Theory	Electromagnetic Pump
Structure	Gear Pump	Usage	Other, viscosity fluid
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electricity	Pressure	Low Pressure

Product Description

KBT101F intelligent dispensing Peristaltic Pump

Description:

KBT-F intelligent dispensing peristaltic pump, applies the stepper motor of 32 microprocessor and the color touch screen operation. And the intelligent expert operating system guide the operator control the pump smoothly; the vector control technique of the motor and the optimized speed control technology, reduce the dispensing errors under the traditional time dispensing mode for the motor slow start; .

Feature:

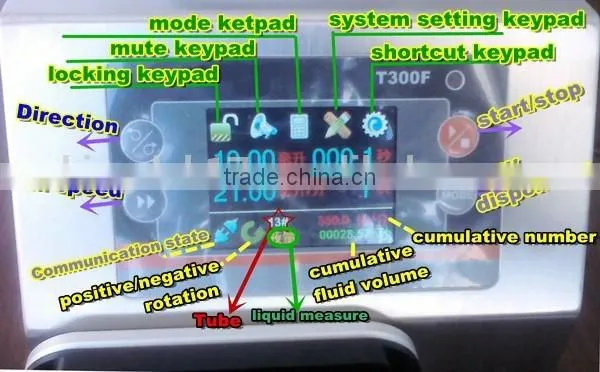

1 Color touch screen operation makes the peristaltic pump have more information and more intuitive display;

2 Intelligent temperature control system can guarantee the smooth work even the operator never used the pump before;

3 Intelligent temperature control technology greatly reduces the working noise of the peristaltic pump, and achieves energy conservation;

4 Three dispense mode: time dispensing, fluid volume dispensing, copying dispensing, satisfy different requirements;

5 Accumulated the whole fluid volume, and transferred volume;

6 Infrared remote control guarantee the non-touch control;

7 RS485 bus, support M0DBUS communication protocol, connection with the principal computer conveniently.

Specification:

Drive	Pump heads	Channel	Applicable tubing(mm)	Single channel flow rate (ml/min)
KBT101F (plastic case)	KDG6-1(6 rollers)	1	Wall thickness0.8~1, ID≤3.17	0.00016~49
	KDG10-1(10 rollers)	1	Wall thickness0.8~1, ID≤3.17	0.00011~41
	KDG6-2(6 rollers)	2	Wall thickness0.8~1, ID≤3.17	0.00016~49
	KDG10-2(10 rollers)	2	Wall thickness0.8~1, ID≤3.17	0.00011~41
	KDG6-4(6 rollers)	4	Wall thickness0.8~1, ID≤3.17	0.00016~49
	KDG10-4(10 rollers)	4	Wall thickness0.8~1, ID≤3.17	0.00011~41
	KYZ15	1	13#14#16#19#25#17#18#	0.006~575
	KYZ25	1	15#24#	0.1667~425

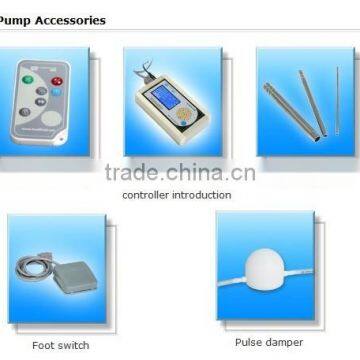

External control function:

Infrared remote control, foots wtich control, external control start and stop, external control direction, with isolation;

5V, 12V, 24V level input;

0-5V/10V, 4-20 mA, 0-10KHz speed control;

RS485, support M0DBUS communication protocol.
