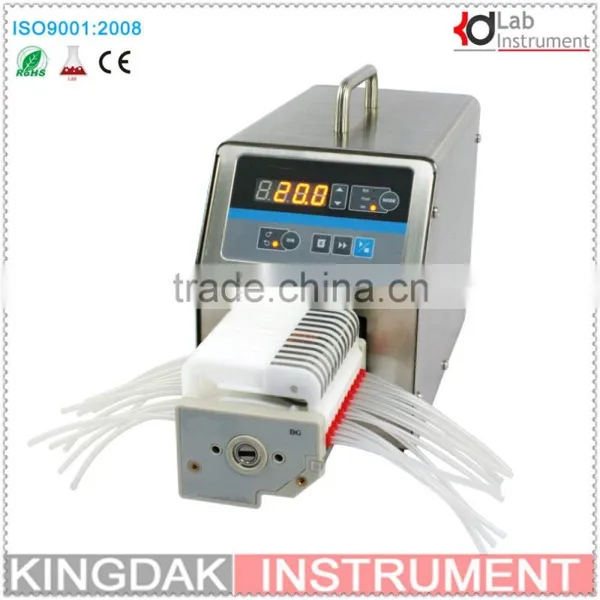

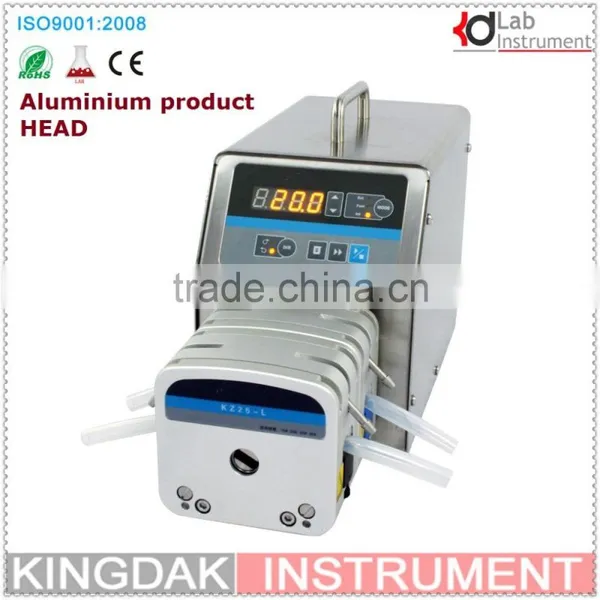

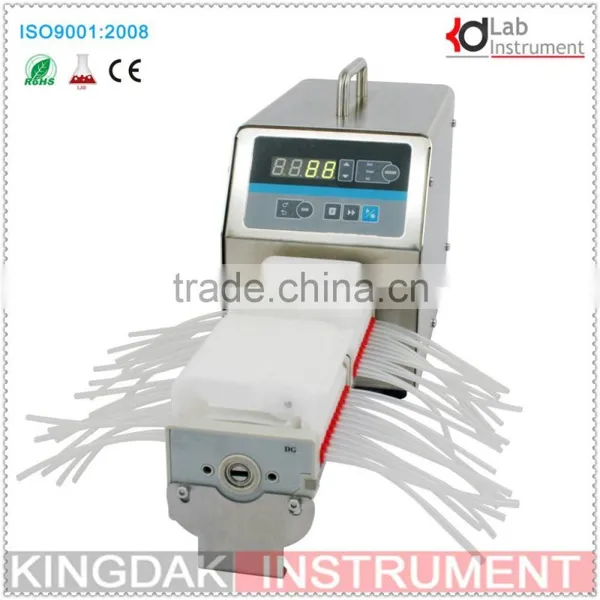

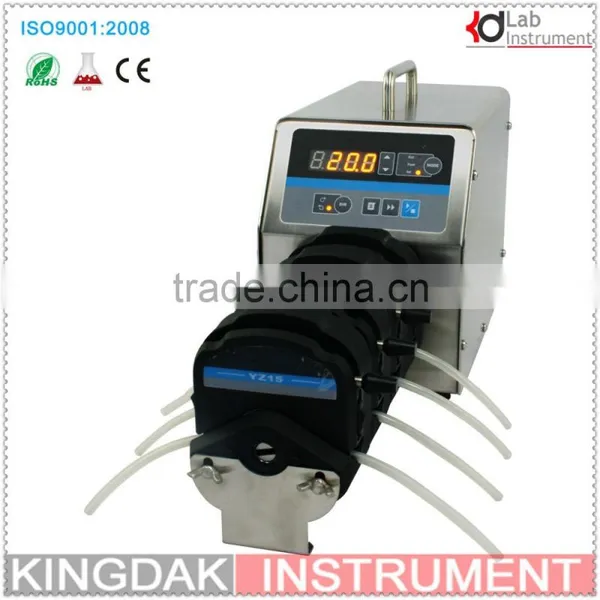

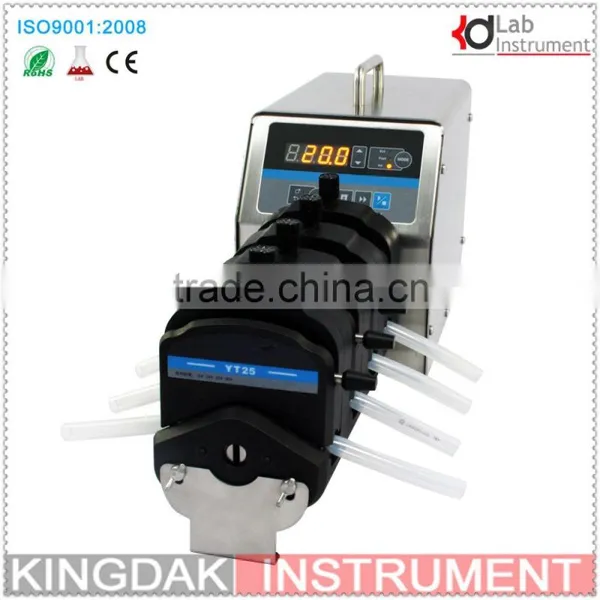

BT100S-1Speed-Variable Perostaltic Pump

BT100S-1Speed-Variable Perostaltic Pump

Function and Feature

• Four-figure digital LED indicator displays working speed.

• The LED indicator displays the internal , external control mode.

• Reversible direction, start/stop, full speed, state memory (power-down memory).

• Easy dispensing function, it realizes the repeat timing quantitative dispensing .

• When the speed resolution is 0.1-100rpm the speed resolution is 0.1 rpm. 100-600 rpm, the speed resolution is 1 rpm.

• Adopt large torque, can drive multi-channels and various types of pump heads.

• The circuit board with conformal coating makes it dust-proof and moisture-proof.

• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

• Optional footswitch or timer for dispensing fluid.

Technical parameters :

• Flow range :0.00011-1700ml/min

• Flow accuracy : <0.5%

• Speed range : 0.1-150rpm

• Speed resolution : 0.1-100 rpm, the speed resolution is 0.1 rpm, 100-150 rpm, the speed resolution is 1 rpm.

• Power supply : AC 220V±10%,50Hz/60Hz(standard),AC110V±10%,50Hz/60Hz(optional)

• Power consumption : <40W

•External control :  Input level 5V,12V(standard),24(optional) , External control analog

0-5V(standed),0-10V,4-20mA(optional)

•Extermal communication interface: RS485 communication interface , support the MODBUS protocol.

Ambient temperature :0-40℃

Relative humidity:<80%

• IP garde : IP31

 • Dimensions : 278mm*150mm*237mm (L*W*H)

• Weight : 4.7KG

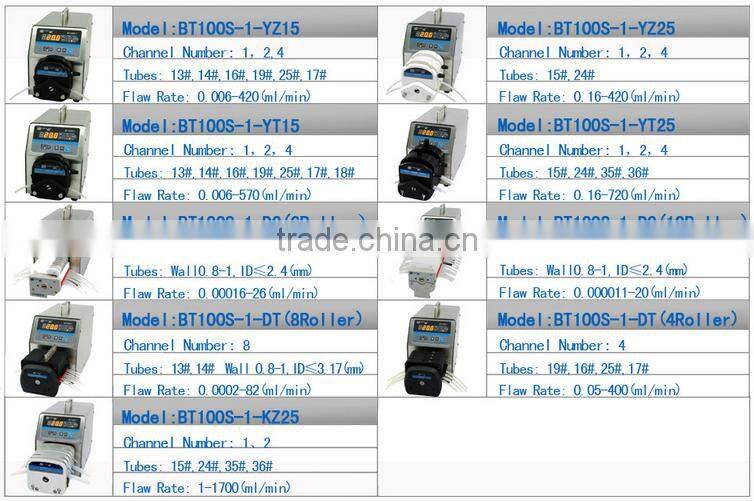

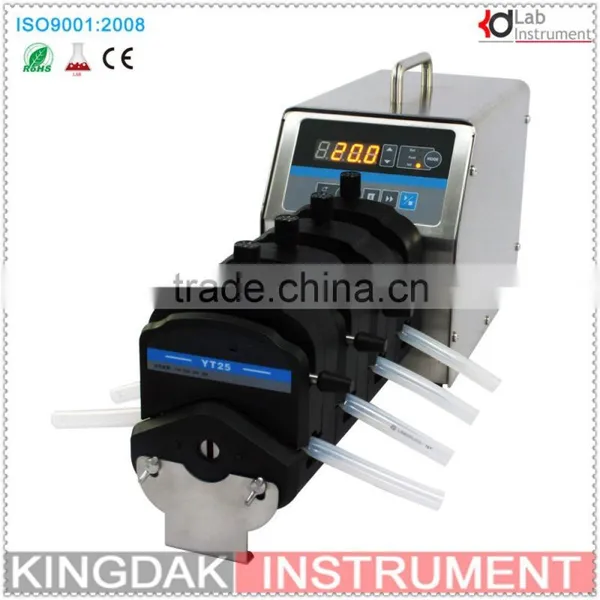

BT100S-1 peristaltic pump with different pump heads:
