DZF-6020 Vacuum Drying Oven
Suitable Scope
It is applicable to such tests as drying heat treatment.ect.of artides under vacuum conditions in industrial and mining enterprises as well as in nedical colleges and scientific research institues.
Characteristies of product
1, The working chamber is ,made of high quality sheet or corrosion-resistant stainless steel.Toughened hulletproof double glass door,to observe clearly the object in the working chamber.
2, The air-tightness of the chamber door is adjustable,with a wholly shaped silicon rubber door sealing loop;so as to guarantee in-chamber high vacuum.
3, Intelligent temperature controller is based microprocessor with PID parameters controlling function.Digital display of set and actual temperatures.High temperature controlling accuracy and reliability.
4,Be sure to the temperature is not excess.and the heat up power can be adjusted.

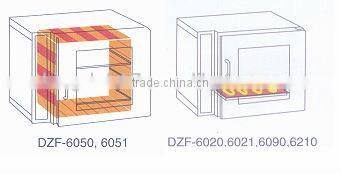

Adopting the platetype heater to evenly distribute to heat over the outer wall of the chamber.
The heater is installed directly at the bottom of the working chamber for quick temperature use.
3:(Technical date):
| Model | DZF-6020 | DZF-6021 | DZF-6030 | DZF-6050 | DZF-6090 | DZF-6210 |
| Mains voltage | 220V ,50Hz | |||||
| Temperature control range | RT+10°C~200°C | RT+10°C~150°C | RT+10°C~200°C | RT+10°C~250°C | RT+10°C~250°C | |
| Consumption Power | 300W | 400W | 1400W | 1200W | 2160W | |
| Temperature fluctuation | ±1°C | |||||
| Vacuum degree | <133pa | |||||
| Dimensions of the working chamber | 300×300×275mm | 320×320 ×300mm |
415×370 ×345mm |
450×450 ×450mm |
560×590 ×640mm |
|
| Material of working chamber | 1Grl8Ni9Ti | 08F | 1Grl8Ni9Ti | 1Grl8Ni9Ti | 1Grl8Ni9Ti | |
