Specifications

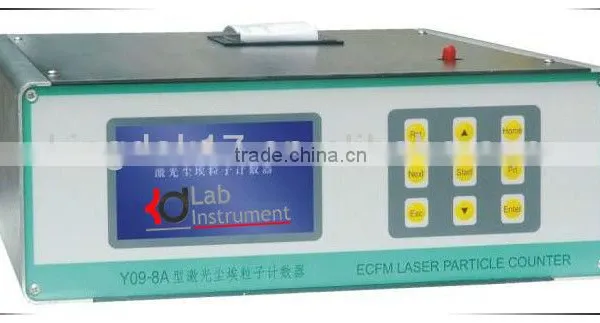

LCD display,6 size channels count,1CFM flow rate,UCL calculation printer,1000 samples data storage.Build-in thermal printerKD09-8B Type Laser Dust Particle Counter
Product Explanation and Main Features
KD09-6 Serial Laser Dust Particle Counter (names apparatus for short) is applied in the measuring of the size and number of the dust particles in the unit volume of the air in clean environment. It could directly check the clean environment with the grade from Class 300,000 to Class 10.This instrument applies the semiconductor laser source, which is small in volume, light in weight, high in inspection precision and simple in function. It’s controlled by microprocessor, store and print the measured results with convenient operation on the clean environment.
Optional functions: the counter could be remote controlled by the special software of the computer.
Range of application: this product is widely used in the clean inspection of electronics, optics, chemical industry, food, cosmetics, medical and health, bio-pharmaceuticals, aviation and space flight industries.
Technical parameter of the product
Parameter/model | KD09-8B Type Laser Dust Particle Counter |
Size of appearance | 300*400*50mm3(W*D*H) |
Ways of display | LCD |
Quality | 15kg |
Maximum power consumption | 200w |
Power supply | AC220V±10%,50HZ, |
Particle size passage | 0.1,0.2,0.3,0.5,1,2,3,5(µm) |
Sampling flow | 2.83L/min |
Inspection period | 1min,2min |
Self-clean time | ≤20 min |
Rs232 communication or outside set printer | |
Alarming | Class1,10,100,1000 |
Environment condition for use | Temperature: 10oc-30o c, humidity:20%-70%,gas pressure:86kPa-106kPa |
Maximum sampling concentration allowed | 35000 grains/L (the particle diameter shall be no larger than 0.5µm) and the sampling air shall not include the erosive acid and aklaili gases. |
Sustainable working period | 8 hours |
Light source and service life | Semiconductor laser, with the service life longer than 30000 hours |
Data storage | 256 groups |
Optional pieces | Supplementary measuring vehicle (bring the chargeable power supply, it could be used continuously for 6 hours)PC remote control card and special software |
Fittings | Sampling bracket, 1 constant velocity sampler, 1 self-cleaner, 5 volumes of dustless printing paper, 1 dustless notebook |
