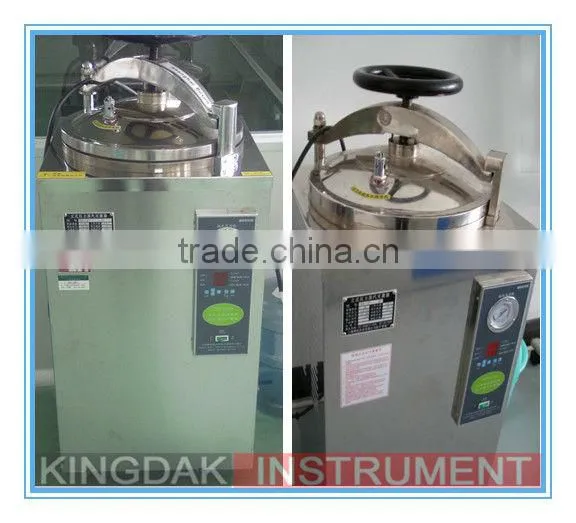

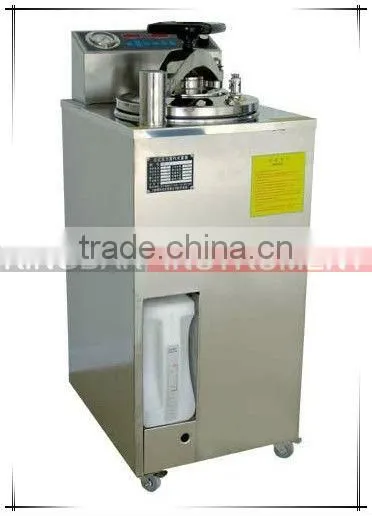

KXQ-LS-50G/75G/100G Vertical Sterilizer
PRODUCT BACKGROUND:
As a professional sterilization manufacturer which has the production experience over ten years, we believe that our advanced technology will widen the choice for your experiments.
PRODUCT CHARACTERISTIC:
Auto-control type with drying function
Structure of handwheel type quick-door-open safety interlock device (accord with the 49th requirement of Vessel Regulations)
Material: outer and chamber are made of high quality stainless steel SUS304, acidproof, alkali resistance, anti-corrosive
Microcomputer intelligent control
Pressure safety interlock device, over temperature protection device
Auto-raising type packing ring,exhaust cold air automatically
Auto-exhause when over pressure, low water level alarm, auto-control when lack of water
Temperature range (109-135°C), sterilization time range (4-120min), drying time range (drying after sterilization) (30-240min), Max. design/work pressure (0.25MPa-0.22MPa)
Inner circulation exhaust type, with 3L steam collection bottle
Automatic inlet, heating, sterilization, exhaust and drying
Buzzer reminds after work and close-down automatically
Work process of sterilization and drying
a: sterilization temperature decreases to 102°C, then exhaust and drain
b: sterilization, exhaust and drain after sterilization
c: sterilization, exhaust, drain, drying
Technical Parameter
Model |
KXQ-LS-100G |
KXQ-LS-75G |
KXQ-LS-50G |
Volume: |
100L |
75L |
50L |
Rated working temperature |
135°C |
135 °C |
135 °C |
Rated working pressure |
0.22MPa |
0.22MPa |
0.22MPa |
Power Consumption of sterilization |
3.5KW |
3.2KW |
3.1KW |
Power Consumption of drying |
0.8KW |
0.8KW |
0.8 KW |
Power supply |
220V±10%/50Hz±2% |
220V±10%/50Hz ±2% |
220V±10%/50Hz ±2% |
DIM. Exterior (mm) |
600*500*1280 |
600*500*1150 |
600*500*1080 |
DIM. Interior (mm): |
Fai 400*725 |
Fai350*625 |
Fai 350*525 |
DIM. Basket (mm): |
Fai 360*240*3pcs |
Fai 360*280*2 pcs |
Fai 360*240*2pcs |
Payment Terms
1. All the payments required before
2.Time of delivery: within 7 days after receipt of payment
3.Term of payment: company account or west union
4.100% T/T Payment in advance
5.Validity: 30 working days
