Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Fruit & Vegetable Processing Machinery > Gold Supplier Frozen French Fries Machinery

Gold Supplier Frozen French Fries Machinery

Name: Gold Supplier Frozen French Fries Machinery
Brand: Guanfeng
SKU: 141457210
Availability: InStock

Gold Supplier Frozen French Fries Machinery thumbnail-1

Gold Supplier Frozen French Fries Machinery thumbnail-2

Gold Supplier Frozen French Fries Machinery thumbnail-3

Gold Supplier Frozen French Fries Machinery thumbnail-4

Gold Supplier Frozen French Fries Machinery thumbnail-5

Gold Supplier Frozen French Fries Machinery photo-1

Gold Supplier Frozen French Fries Machinery photo-2

Gold Supplier Frozen French Fries Machinery photo-3

Gold Supplier Frozen French Fries Machinery photo-4

Gold Supplier Frozen French Fries Machinery photo-5

US$ 50,000 - 300,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

Guanfeng

Contact Supplier Request Quote Chat Now

Zhejiang GuanFeng Food Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name Guanfeng

Model Number GP

Type Other, frozen french fries machinery

Voltage 220V/30V

Power(W) frozen french fries machinery

Weight frozen french fries machinery

Dimension(L*W*H) frozen french fries machinery

Certification CE

Warranty one year easy damage parts warranty periods

After-sales Service Provided Engineers available to service machinery overseas

Gold supplier frozen french fries machinery

Product Description

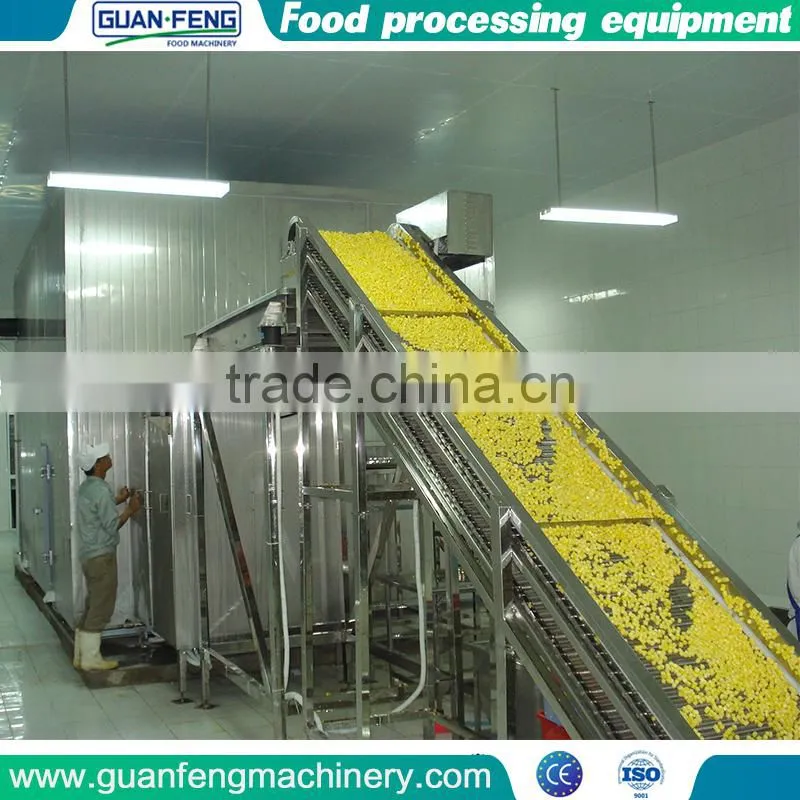

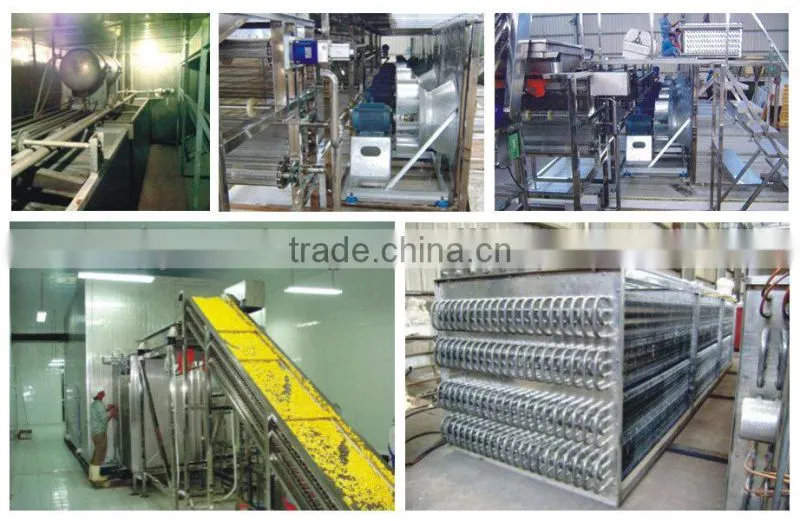

Product Pictures of frozen french fries machinery

Summary( iqf frozen ):

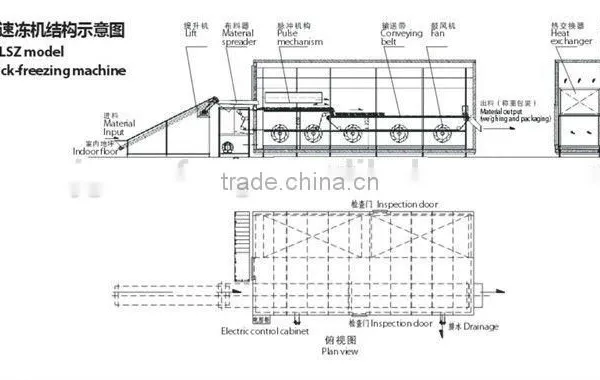

The GLZ model fluidized quick-freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect.

Product features( iqf frozen ):

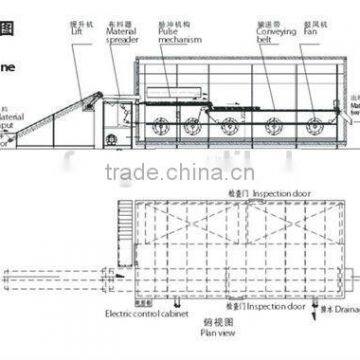

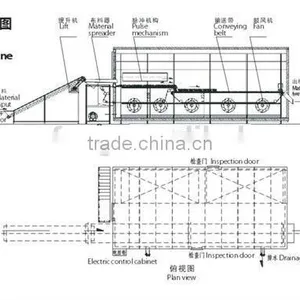

The conveying net belt adopts servo control. According to different material varieties and cloth thickness, the frequency of the jigging motion i.e. , the alternate forward and backward motion of the conveying belt can be adjusted during its forward conveying process. Even if the cloth thickness is doubled on the basis of the current technology, there is no adhesion of materials and no occurrence of channeling.

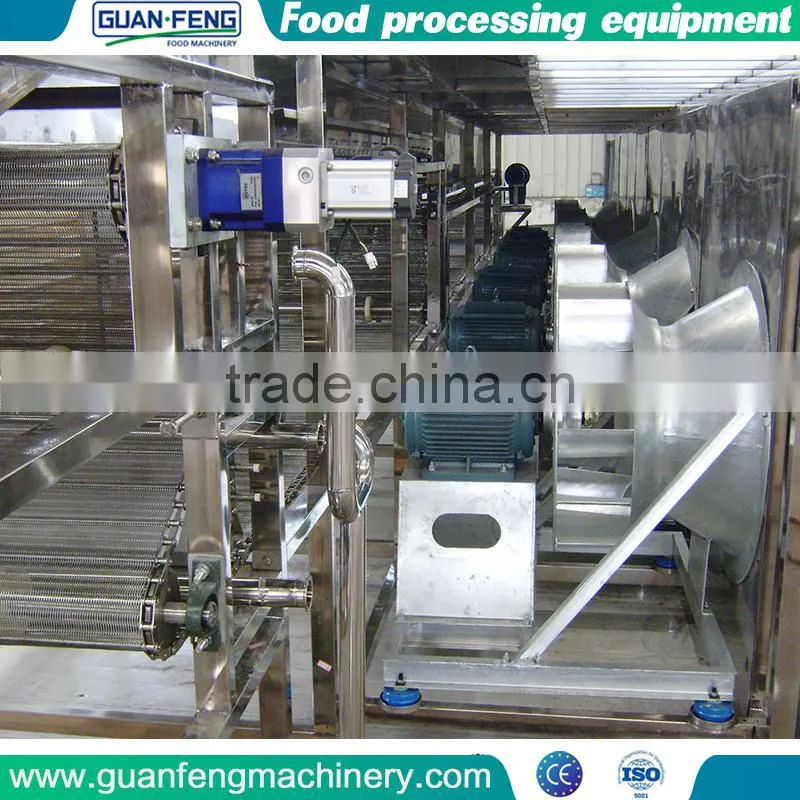

The two-section type net belt conveying is adopted. At the front and rear sections, the conveying speed of net belt and rotation speed of fan are controlled independently to meet the requirements of processing different materials.
The initial freezing section is provided with air bypass pulse device to enhance the fluidized effect so as to realize the rapid freezing.
The ADS air automatic defrosting device is adopted to maintain the frost thickness of the evaporator always under 3mm and ensure that the quick-freezing machine can carry out 24-hour continuous production. The heat exchanging efficiency of the evaporator is greatly enhanced, and the power consumption of refrigerating compressor and fan is reduced. For quick-freezing output per unit, about 20%of power consumption can be saved.
All parts are made of stainless steel, aluminum alloy and food level plastics, which comply with the food hygienic standards.
The high-efficiency cleaning device is provided to clean the residues on the net belt. All designs guarantee the facility and easy operation for cleaning and ensure hygienic safety of foods.

Product Description

Applications
