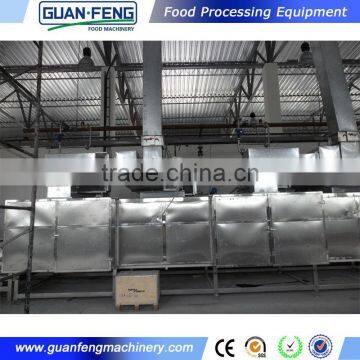

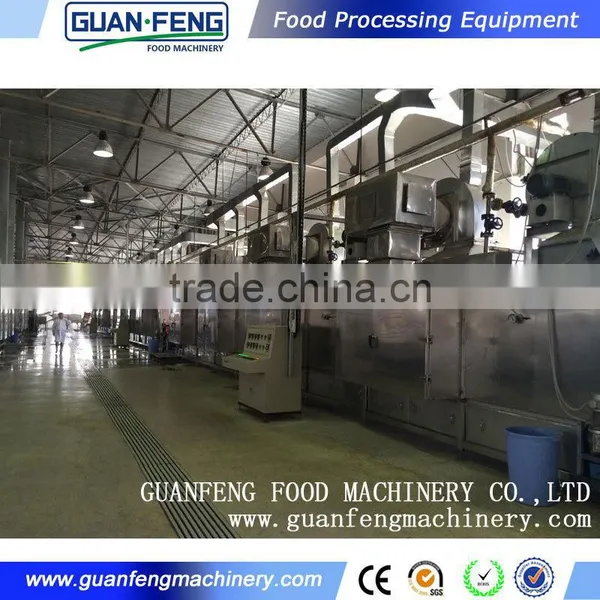

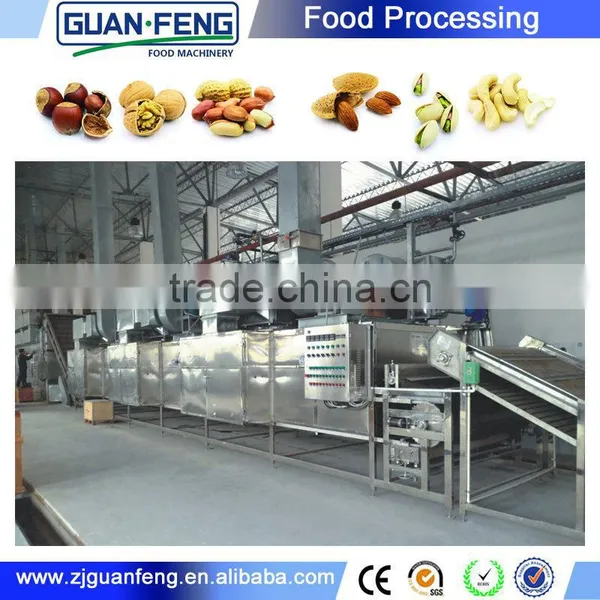

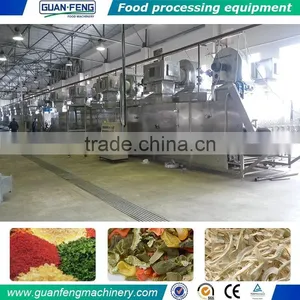

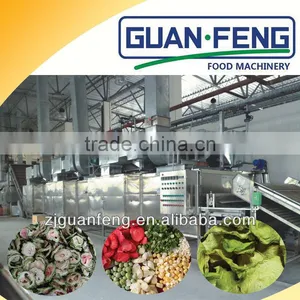

Custom Design Vegetable Dehydration Machine Air Mesh Belt Dryer

GUAFNEG GBJ series automatic belt dryers are widely used in the processing of snack food, granola cereals, dehydrated vegetables and fruits, synthetic rubber, polymers, chemicals and many other industrial products. It can work as ovens, roasters, toasters and coolers for a wide variety of applications, the belt dryer uses air to transfer heat and remove moisture as the product moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no turnover or drops during drying, the balanced drying can be ensured. With the automatic mixer and scraper feed the materials smoothly to the following process.

1、Material of equipment：
The equipment is made of stainless steel：40*40*2/3mm Square tube、Protecting plate and Punching uniform wind plate 2mm、Liner Panel1.5mm、guide rail 5# angle iron；
frame 80*40*2.5mm square tube、40*40*2mm square tube、Outer plate 2.0 Stainless plate（Screw fixation）；
Equipment ventilation part of the fan is made of carbon steel, the other including the wind pipe is made of stainless steel;

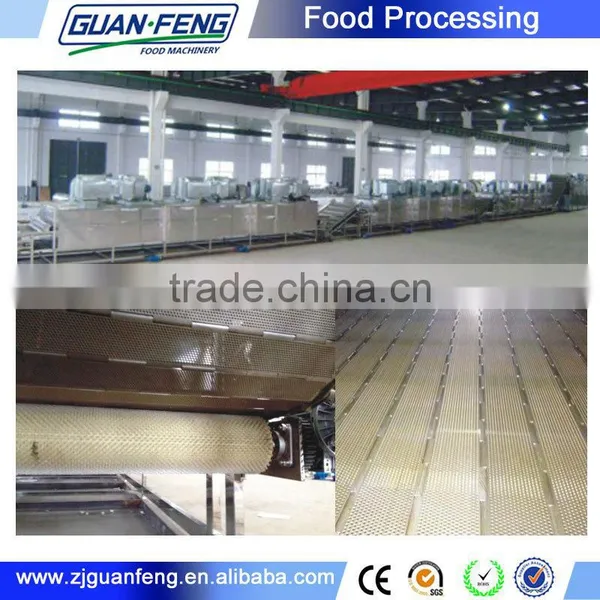

heat insulating material：40~60mm Pure aluminum silicate（The surface temperature of the equipment is less than 40 degrees.）；Equipment mesh belt is a stainless steel chain plate + punching plate structure.
2、Installed motor：Heating fan 8sets，power 7.5KW/set；
Mesh belt drive motor：P=1.5KW（frequency control）
Cleaning brush motor：P=1.5KW（2 sets，frequency control）
3、Device color：Materials used in the equipment are drawn stainless steel, and the appearance is beautiful.；
4、Device heating：8 temperature measuring points and temperature control points are set up, and the steam heat exchanger is used for heating,each evaporation area is 100mSH0.7x;2^;            air inlet dimension is 1*1m，
steam inlet is DN50，water outlet is DN40.The heating temperature is normal temperature to 150 degrees；
Equipment each motor and control is equipped with a total electric control box（The electric control and equipment are installed separately to prevent the box temperature is too high.）；
5、For transport considerations, both sides of the ventilation duct can be demolished, and the heat transfer and the wind turbine, the wind pipe can be demolished.
6、Quantity：1set，In order to facilitate the split, the installation of bolt connection.

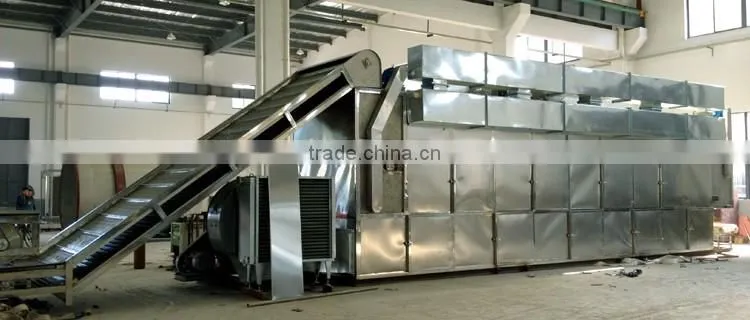

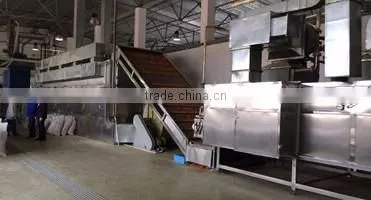

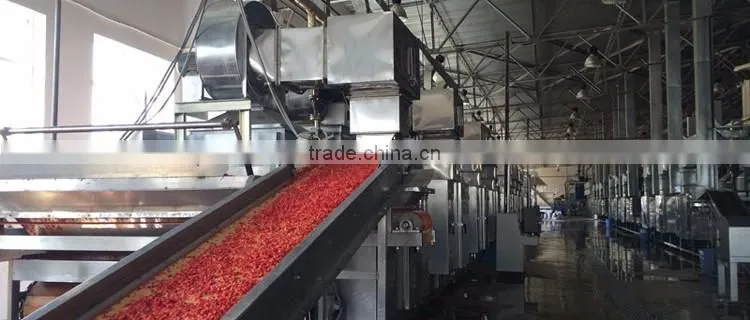

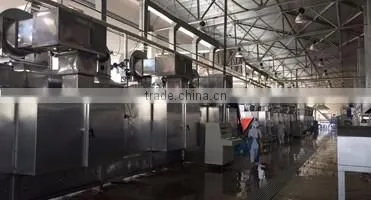

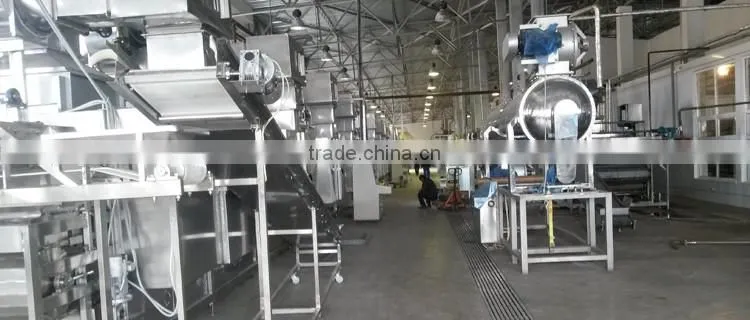

The belt dryer is the most advanced continuous working hot air circulation dehydration equipment for vegetables, herbs, spicy industry. The dryer is suitable for high capacity processing for slices, dices or particles products. Typical products suitable for the belt dryer are onion, garlic, carrot, herbs, etc.

1: High quality equipment products;
2: Deep understanding for food processing industry;
3: Experience and talened engineer team;
4: Well trained and pleasant sales team;
5: Advanced manufacturing facilities;
6: Efficient and humanized management.

GUANFENG MACHINERY is located in the Yangtze River delta, Shangyu city, Zhejiang province with the most convenient transportation and prosperous economic in China, 1 hour by car to Hangzhou or Ningbo and 2 hours from Shanghai.
Our company was established by a group of experienced and dedicated engineers who are excited and specialized in finding the best solutions to improve the food processing equipment therefore bring value to the food processors and make better quality food products. Based on the market demands and our technology background, we focus on the developing and manufacturing equipment for food processing industry, vegetables and fruits drying dehydration equipment(AD), Vacuum freeze drying equipment(FD), Quick-freezing equipment(IQF) and Food processing lines for various vegetables, fruits and seafood industry.
We value "honesty, innovative and quality" because we know that we are not only supplying equipment to our clients but the partners to help our clients to get a better result. Keeping this in our mind, we not only make high quality food processing equipment, but also help the clients to figure out the optimum processing work flows, make amendments according to client's specific needs, training staffs for the user of our equipment and even more, because we believe that our users or clients' success is the foundation of ours.
