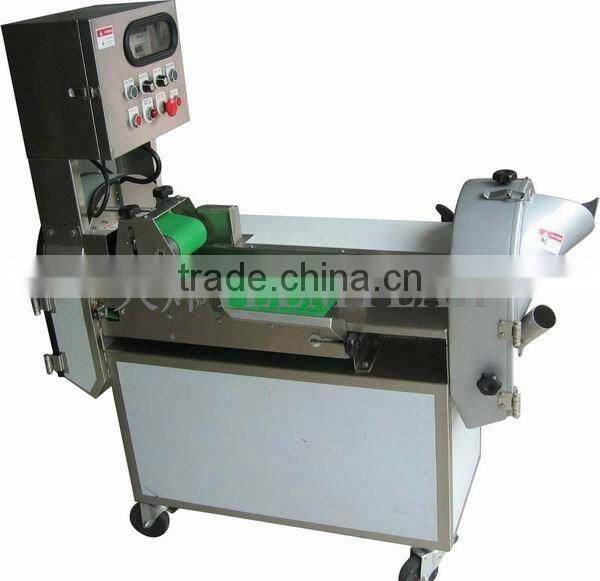

TW-801A Taiwan Quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory

TW-801A Taiwan Quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory thumbnail-1
TW-801A Taiwan Quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Teemyeah
Model Number:
TW-801A
Contact Supplier Request Quote Chat Now
Guangzhou Teemyeah Food Machinery Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou / Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Teemyeah
Model Number TW-801A
Type Cutter
Voltage 220V OR 380V
Power(W) 1.8KW
Weight 135KG
Dimension(L*W*H) 1160*530*1000MM

Specifications

1.Vegetable slicer
2.slice; stripe and cube cutting
3.Capacity: 300 - 1,000 KG/hr
4.Easy to Chang blade

  TW-801A Taiwan quality Multi Function Vegetable Slicer (Video)



 TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory





1.Sample cutting of this Machine:





TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory   TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) ManufactoryTW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory   TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory



TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory









2.Accessories Photo of this Machine:





A. Vegetable Cutter:






  TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory   TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory

     The Blade didn't touch the belt.                         Feeding the vegetable (material)


TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory

     The stripe bladeset(Option) could cut the vegetable to small piece.

TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory

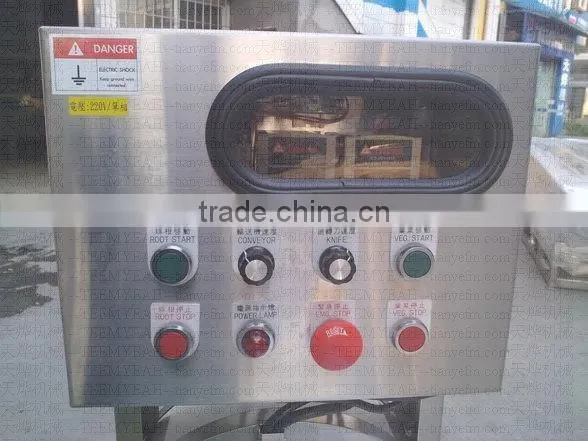

 inverter  control the blade and conveyer indenpendently. which can control the vegetable cutting size.

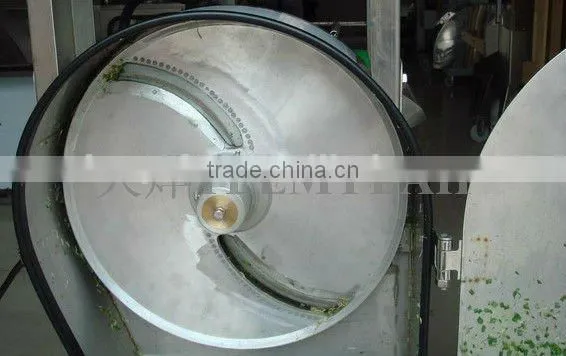

B. Bulbous Cutter:
The cutting size is not adjustable. must cange the bladeset
The TW-801A is a multi-function cutter, which can setup different bladeset to be a different cutter, slice; stripe; and dice.

TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory    TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory






3.Machine Purpose and Specification:

Purpose: The cutter is a multi-function cutter for both vegetable and rootstock, for example potato; carrot; onions, eggplant; Vegetables categories : celery, Chinese cabbage, Korea vegetables, spinach, and other long strip of material. There are 2 different cutting department for vegetable and rootstock cutting procedure, the cutting speed and cutting size is adjusted by the frequency converter.

Machine Size(mm): 1160(L) * 530(W) * 1000(H)

Cutting Size(Slice): 2-20 mm, not adjustable.

Cutting Size(Strip): 3*3 mm above, not adjustable

Cutting Size(Dice): 6-20 cubic, not adjustable.

Weight: 130KG

Capacity: 300-1000 kg/hr

Power: 220V  ; 1 Phase

Motor: 3/4 HP

Note: 1 slice blade set; 1 dice blade set attached (size is not adjustable); the other size’s blade set is customized.

Width of Feeding Belt: 120 mm


4.Packaging Options for this Machine:

TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory
5.  Our Food Machine Production Procedure:
TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory



6.  Our Food Machine Factory Certificates:


TW-801A Taiwan quality Multifunction Vegetable Cutting Processing Line Machine (Video) Manufactory



  7.  Video  of  TW-801A Operation:


 /en/contents/32/275.html       Pls addhttp://www. in front of the link

More products of Teemyeah:      Pls add "http://" in front of the link













.







.
