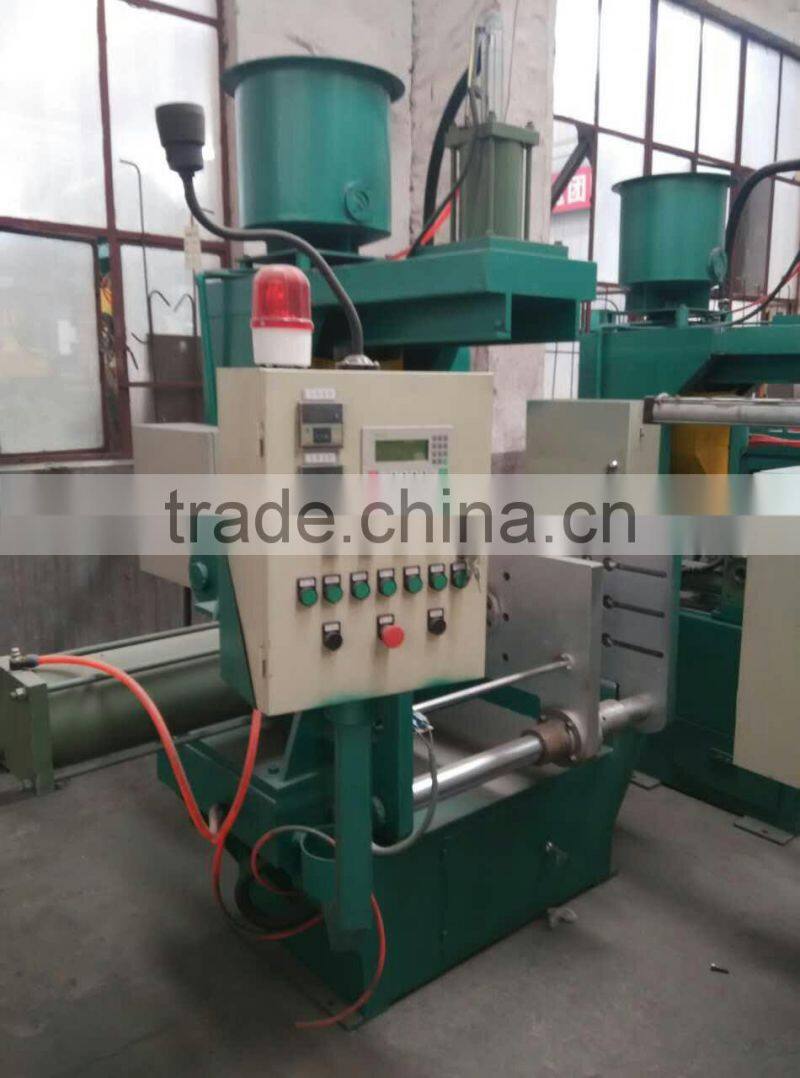

Core Shooter:
1.Application:
This machine is mainly used to make the sand core & shell core for the sand casting industries.
2.Fetures:
Meet the shell mold and shell core needs.
Use PLC programming control
Adjustable technics parameters
Molding temperature auto control
Adopt permanent baffle board
3. Specification:
Mould Size | 600x350 | mm |
Fixed Mold Thickness | 150 | mm |
Matched-die Process | 400 | mm |
Sand Hole Capacity | 200 | Kg |
Sand Core Maximum Weight | 20 | Kg |
Heating Mode | Electric |
|
Heating Power | 30 | KW |
Main Power | AC380/50HZ |
|
Operation Power | AC220/50HZ |
|
Driving Mode | Pneumatic |
|
System Pressure | 0.55~0.7 | Mpa |
Sand-shooting Pressure | 0.25~0.45 | Mpa |
Core Sand | Precoated Phenolic Sand |
