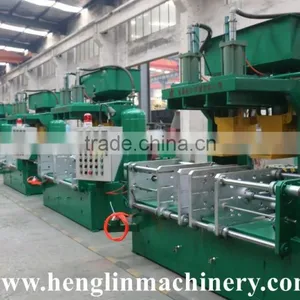

Vertical Core Shooter
- 98880 Set / Sets per Month
- QINGDAO
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HENGLIN | Model Number | Customized | |
| Voltage | 380V | Power(W) | 310 KW | |
| Dimension(L*W*H) | 2250x2160x1560mm | Weight | Customized Dimension | |
| Certification | ISO9001:2008 | Warranty | 3 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Core Shooter:
1.Application:
This machine is mainly used to make the sand core & shell core for the sand casting industries.
2.Fetures:
Meet the shell mold and shell core needs.
Use PLC programming control
Adjustable technics parameters
Molding temperature auto control
Adopt permanent baffle board
3. Specification:
| Item | ZHTO600 | ZHTO700 |
| Moulding Board Maximum Dimension(mm) | 780x600 | 930x750 |
| Molding Minimum Thick(mm) | 280 | 280 |
| Mould Assembly Process(mm) | 300 | 300 |
| Maximum Sand Core Weight(kg) | 8 | 10 |
| Sand Hopper Capacity(kg) | 200 | 200 |
| Heating Mode | Electric Heating | Electric Heating |
| Electric Heating Power(kw) | 20 | 30 |
| System Pressure(Mpa) | 0.55-0.70 | 0.55-0.70 |
| Operation Mode | Auto/Manual | Auto/Manual |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. OEM&ODM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
