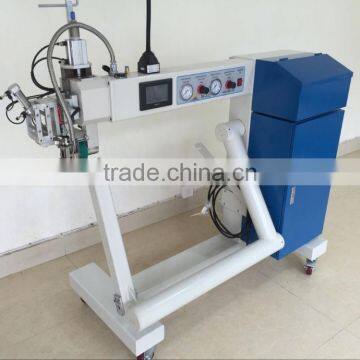

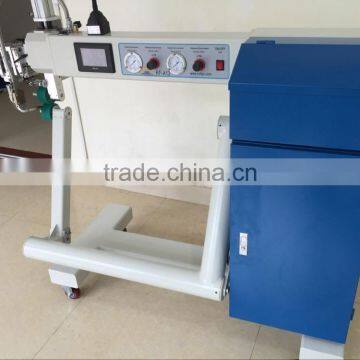

Tarpaulin high frequency welding machine
Product Description
Specifications
high performance and competitive price hot air seam sealing machine in China
- Controlled by programmable PLC with HMI soft-touch display, process can be modified according to users' requirements.
- Auto controllable temperature with high stability slightly varies between±2 centigrade. Warning device for temperature upper limit is installed to protect heating wire.
- It has the functions of synchrodrive of the upper and lower wheel chain, .

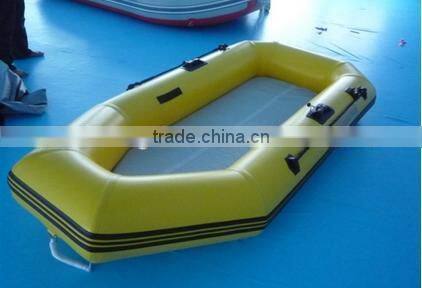

- bigger operation space ,widely used in coated PVC fabric welding such as inflatable boat,tent house,etc
- Double pedal control is designed according to human mechanics, simple and comfortable, suitable for long-time operation.
- It is possible to work 24 hours continuously with high efficiency.
- Blowing-in wind can be filtrated without oil or water by unique heater tube.
- auto compensation, and auto reverse
- Super strong torsional dynamic design
| Power supply: | AC 220V 50Hz |
| Rating efficiency: | 3000W |
| Heat control: | Room temperature ~700 centigrade,adjustable without bands |
| Speed: | 1~18m/min infinitey varible |
| Air supply: | 0.35~0.5 Mpa |
| Width of pinch roller: | Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand |
| Width of seam sealing tape: | 14mm-24mm standard, others are available according to requirements |
| Upper roller lift: | 18 mm~25 mm |
| Exterior size: | 1500mm(L),700mm(W),1600mm(H) |
| Net weight: | 245kg |
| Prevention against jumping over sewing work: | There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting , or when the gun moving outward with the idle wheel stopping |
appliance products;
Packaging & Shipping
Packing condition: strong plywood case
Our Services
Hot air seam sealing machine Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
