Specifications
1. High concentration ratio2. Three different decks to choose3. Adjustable stroke length and speed4. Environmental protection
For tungsten, tin, tantalum and niobium, gold, iron, manganese and other metals, ferrous metals, nonferrous metals, precious metals and other minerals and coal sorting.

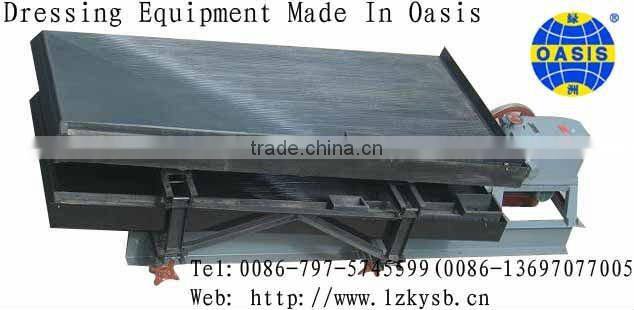

Traditional shaker covers an area of large, relatively low processing capacity, customer investment increases, double-shaker covers an area of inconvenience to deal with a large amount of equipment, low cost,
Shaker is available in the double-sweep the election, featuring various operations, sorting coarse sand (2-0.5 mm), fine sand (0.5-0.74), sludge (0.074) different grain level,
The same bed with hyperbolic rocker mechanism, the spring box in the shaker box, the crankshaft, rod, springs, rocker and so increase the size, material unchanged. On the lower dimensions are 1823/1558/4520. On the lower bed sharing a set of lower bed slope adjustment device used in shake liner support,
Model | Unit | LY4500/1850 |
Bed Size | mm | 4500/1850/1560 |
Stroke | mm | 6-8 |
Times of stroke | /min | 240-380 |
Slope | o | 0-10 |
Feed size | ore sand mm | 2 |
slurry mm | 0.02 | |
Feed density | % | 10-30 |
Water t/h | t/h | 0.4-0.7 |
power | kw | 1.5 |
capacity | ore sand t/h | 3-3 |
slurry t/h | 1.6-2.5 | |
Overall dimensions | mm | 5600/1820/15600 |
Weight | kg | 1650 |
