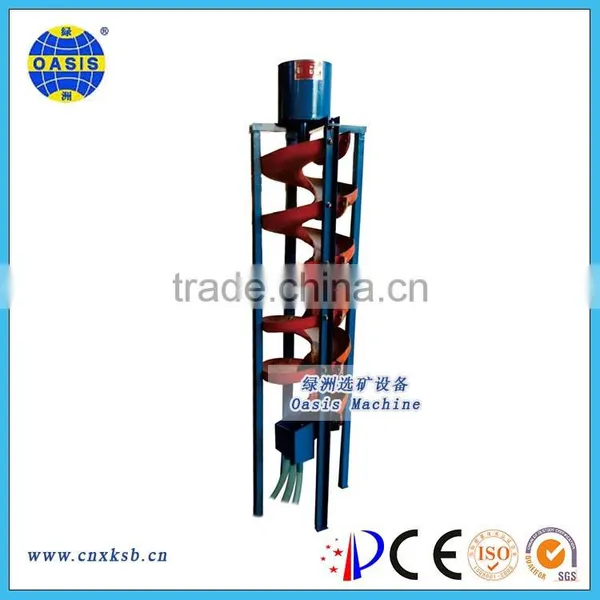

Famous Brand Laboatory BLL Spiral Chute Made in Jiangxi

FOB Price

US$ 1,000 - 2,000 / Set

1 Set(Min. Order)

Port guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangxi, China	Brand Name	OASIS
Model Number	BLL-600	Condition	New
After-sales Service Provided	Overseas service center available

Product Description

Brief introduction

1. High recovery & concentration ratio
2. Easy operation
3. Small size

4. Energy conservation and environment protection

5. All products through the ISO certification

Specification

BLL spiral chute is to make separation of useful minerals from gangues by use of the different particles subject to gravity, hydraulic pressure and friction in the multi-force field through dynamic centrifugal flowing membrane of slurry produced on the inclined surface of spiral based on the difference of useful mineral and gangue in specific gravity , particle size and shape. Water in the spiral chute runs downward spiral movement and also flows in circulation transversely. Water in the upper layer run fast,generating centrifugal force with large inertia to toss toward the outer edge of the chute . Pulp in the heavy mineral grains settling faster convergence along the spiral gradually inward edge of the end, the form of concentrates produced. Light mineral deposition slowly, at a surface mine flow, velocity fast, centrifugal force, sub-ah horizontal circulation under the effect of gradually expanded along the line gradually moved towards the outer edge of the spiral, the end, the form of tailings output.

Model	Unit	BLL-600	BLL-400
Screw diameter	mm	600	400
Spiral size	mm	360	240
Spiral in the first few	piece	2	2
Each of the first few	Film	5	5
Feed size	mm	0.3	0.3
Feed density	%	20-40	20-40
Capacity size	t/h	0.8-1.2	0.1-0.2
Overall dimensions	mm	700/700/2730	460/460/1500
Weight	kg	90	60
