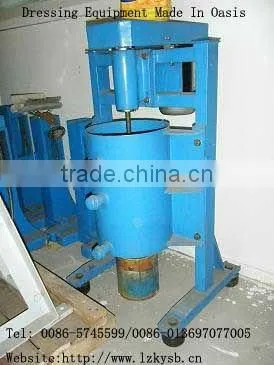

Laboratory agitating tank

Specifications

Leaching tank is used for wet leaching agitation with central aeration, step less adjustment of inverter and other features

Technical Parameter of laboratory Slurry Conditioning Drum and Agitating and Leaching Tanks



Agitating tank is suitable for labs in industries to we agitate slurry materials, allowing ore particles to suspend and to fully contact with reagent before being mixed evenly and creating conditions for separating operation. Leaching tank is used for wet leaching agitation with central aeration, step less adjustment of inverter and other features. XJT (XDF) second-generation new product with a frequency control and temperature control devices and other characteristics (temperature less than 100 degrees)



Model	Volume of tank	Impeller diameter	Size of tank	Impeller speed	Power	Overall dimensions	Weight
	L	mm	mm	r/min	w	mm	kg
XJT(XDF)1.5L	1.5	31	130/157	950	180	300/500/633	30
XJT(XDF)3L	3	39	164/193	1400	180	300/500/633	35
XJT(XDF)5L	5	48	190/90	1750	180	300/500/633	40
XJT(XDF)10L	10	64/116	240/300	1600	550	350/550/770	43
XJT(XDF)15L	15	64/116	246/348	1200-1500	550	480/329/910	45
XJT(XDF)30L	30	64/128	296/448	1200-1500	750	560/388/960	63
XJT(XDF)130L	130	150	500/750	1000	1500	720/720/1670	150
XJT(XDF)160L	160	150	500/1000	600	1500	930/930/2010	186
XJT(XDF)300L	300	200	750/750	800	1500	1180/1180/1766	297
