Help CenterFine Powder Ball Mill & Grate/Wet Type Grate and Overflow Ball Mill
Related Products
-
Overflow or Grate Mill/good Selling Grate MillUS$ 9,000 - 20,000MOQ: 1 Set -
Lab Cone Ball MillUS$ 3,900 - 5,500MOQ: 1 Set
-
Hot Sale/grate and Overflow Grinding Ball MillUS$ 9,000 - 20,000MOQ: 1 Set
-
Wet/Dry Grate/ Overflow and Grate MillUS$ 9,000 - 20,000MOQ: 1 Set
-
High Qualit Lab Ball Mill /Laboratory Mineral EquipmentUS$ 1,000 - 99,999MOQ: 1 Set
Specifications

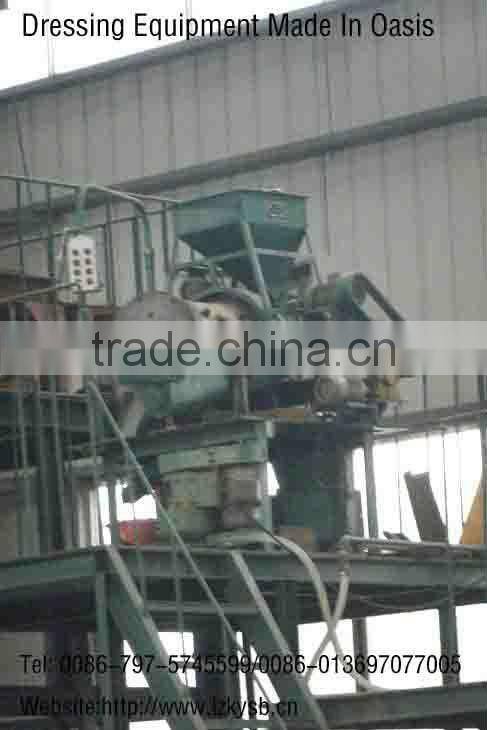

1.Efficient tool for grinding many materials into fine powder.2. To grind many kinds of mine and other materialsLaboratory Grate Mill S12 is provided for mineral processing research organization and pilot plant for continued grinding operation,and study and determination of indexes of ore grindability in tests of mineral feasibility study.It also can be provided for beneficiation plant as grinding equipment or other industries as fine material gringing equipment.

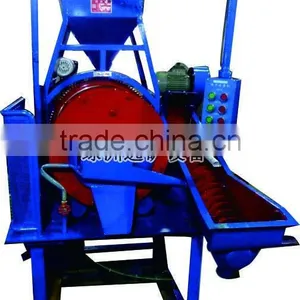

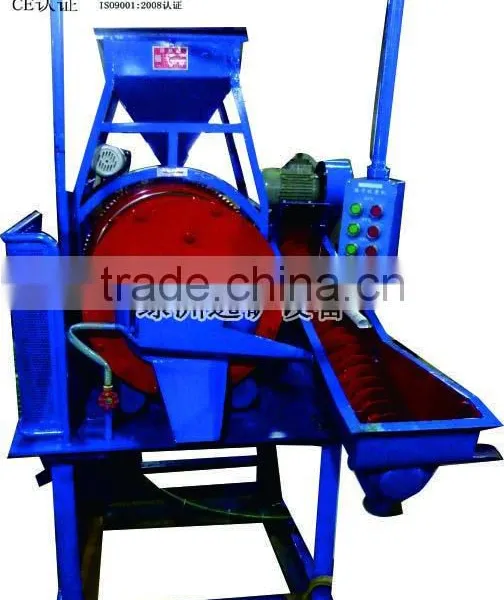

The equipment mainly comprises420/450 Grate Ball Mill,150/1200 Screw Classifier,35 liter Swing Feeder and 90/600 Screw Conveyor and can conduct grinding operation continuously in a close circuit.
Equipment, factory, had installed electrical equipment and water supply systems, installation, without a separate base.
According to the materials handled by the nature and size characteristics of the pulverized product specific requirements, optional three different processes, respectively grinding: 1. Pre-grinding, inspection classification; 2. Pre-graded sand and then back to grind ; 3. start grinding.
Model |
Capacity |
Feed size |
Output size |
Power |
Overall dimensions |
Weight |
Kg/h |
mm |
mm |
kw |
mm |
kg |
|
XMQL420/450 |
45-90 |
5-10 |
Mill can be controlled to 95%-0.074 |
2.12 |
1630/1260/1730 |
800 |
