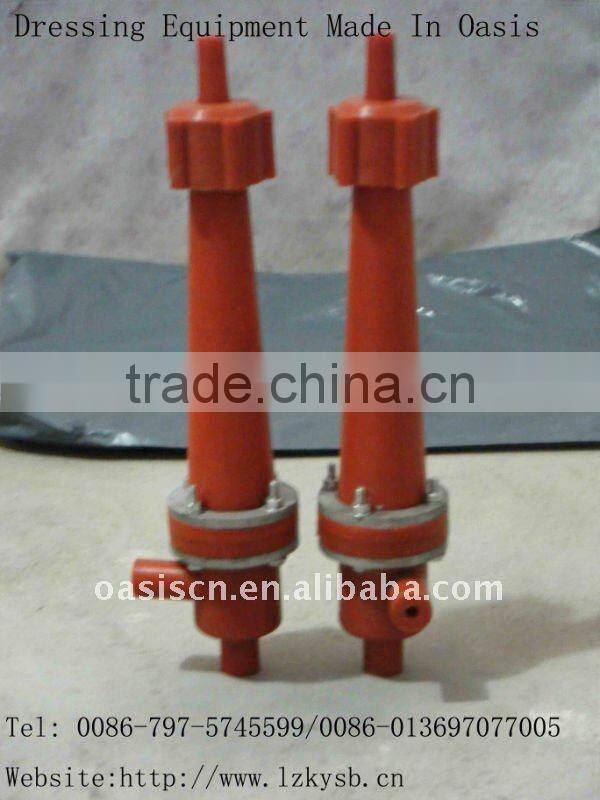

China New Style Laboratory Hydro Cyclone

Specifications

Cyclone is a part of the cone with a cylindrical container. Cone is called the upper part of the liquid inside the cone cavity. There is a cone outside into the liquid tube, in order to tangent direction and the fluid chamber connecti On the top of the overflow container mouth, the bottom end of stream mouth (also known as nesting population). Cyclone size of the maximum diameter of the decision by the cone. Its working principle is centrifugal. As the coarse particles and fine particle size difference exists between (or density difference), which by the centrifugal force, centripetal buoyancy, fluid drag force of different sizes by centrifugal sedimentation, the middle cone to produce a low-pressure area, forming a gas column, causing a vacuum suction effect since most of fine particles under the influence of cyclone overflow pipe discharged from the catchy, heavy particles Shuaixiangtongbi along Tongbi decline, from the next discharge port.

       Polyurethane A polyurethane also known as ester, a cross between plastic and rubber material between the polymer. It has a plastic high strength, but also has a high elasticity of rubber is an excellent overall performance of new wear-resistant materials. It has many excellent properties, wear resistance and high living in the first synthetic materials, even more than some steel. As a hydrocyclone using polyurethane lining, its service life of high chromium cast iron four times, four times the nitrile rubber, natural rubber eight times. Shore hardness of polyurethane within 17 to 97 to 85 ~ 90, when the best wear resistance.
