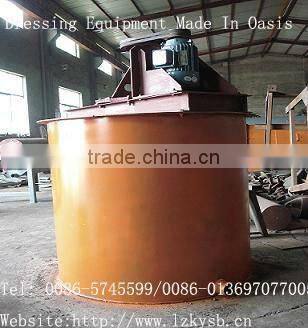

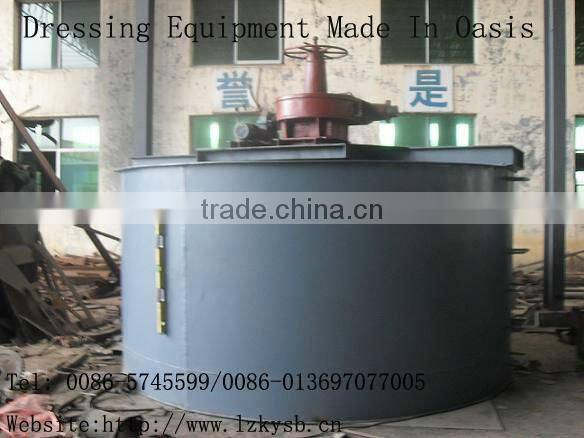

Chemical industry durable agitation tank,mixing bucket

Specifications

Agitating tank
that mine suspended particles and in full access to the Pharmacy, mixing, in order to create conditions for sort



Agitating tank



The device is suitable for flotation, re-election, magnetic separation, etc. right concentration of not more than 35% and solid components of the slurry particle size of less than 1 mm to stir, but also can be used for flotation agents and other non-metallic minerals, mixing, so that mine suspended particles and in full access to the Pharmacy, mixing, in order to create conditions for sorting operations.

This series of stirred tank are the following: Agitating tank ,Lifting agitating tank,High concentration agitation tank, High efficiency agitation tank,Specifications of shemical agitation tank

Model	U nit	500	750	1000	1200	1500	2000	2500	3000	4000
Diameter tank	mm	500	750	1000	1200	1500	2000	2500	3000	4000
Height	mm	500	750	1000	1200	1500	2000	2500	3000	4000
Volume tank	m3	0.124	0.25	0.58	1.15	2.2	4.4	11.2	19.1	46
Impeller Diameter	mm	150	240	240	310	400	550	630	700	1000
Impeller speed	r/min	1000	530	530	492	320	230	230	210	121.6
Power	kw	1.1	1.5	1.5	2.2	3	5.5	7.5	7.5	30
Weight	kg	260	320	480	908	1280	1760	2700	18.5	8020
