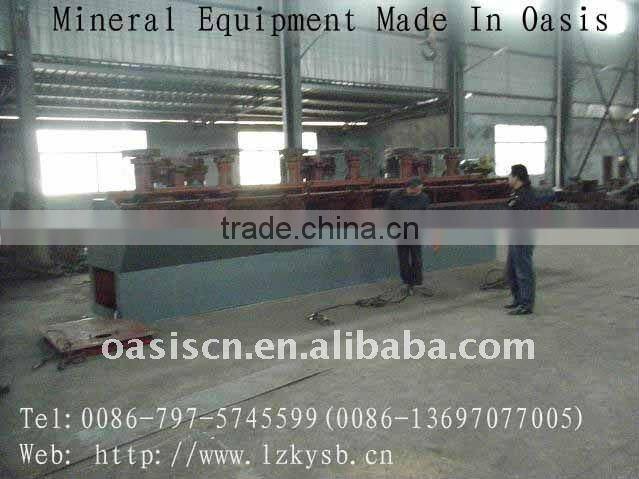

Help CenterSmall Flotation Separator From China Oasis
Related Products
-
Mineral Flotation SeriesUS$ 1,688 - 89,942MOQ: 1 Set -
High Quality Flotation -- Oasis BrandUS$ 688 - 89,942MOQ: 1 Set
-
Jiangxi Oasis Mining Equipment Flotation MachineUS$ 5,688 - 89,942MOQ: 1 Set
-
Industrial Sieve MachineUS$ 668 - 87,992MOQ: 1 Set
-
2012 Hot Sale Leaching Agitation TankUS$ 4,568 - 85,645MOQ: 1 Set
Specifications
Mining Flotation Machine1)Reliable and simple structure;
2)Low power consumption;
3)High efficiency and good quality;
(0086-13697077005
Mechanical agitating flotaion machine with auto air suction
New siructure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom.Therefore ,the slurry in the tand will cycle upward and downward in a fixed flow manner,which is helpful to the suspension of those coarse particles .Airand slurry are naturally sucked without need for foam pump.
Model | Volume | Impeller Diameter | Impeller speed | Capacity | Cell size | Power | Weighe | |
Impeller | Scraper | |||||||
m3 | mm | r/min | m3/min | mm | Kw | kg | ||
XJK 1A | 0.13 | 200 | 600 | 0.05-0.16 | 500/500/650 | 0.75 | 0.5 | 290 |
XJK 2A | 0.23 | 250 | 500 | 0.12-0.28 | 600/600/650 | 1.5 | 0.5 | 390 |
XJK 3A | 0.35 | 300 | 483 | 0.18-0.4 | 700/700/700 | 2.2 | 1.1 | 426 |
XJK 4A | 0.62 | 350 | 400 | 0.3-0.9 | 820/900/850 | 3 | 1.1 | 752 |
XJK 5A | 1.1 | 500 | 330 | 0.6-1.6 | 1100/1100/1000 | 5.5 | 1.1 | 1208 |
XJK 6A | 2.8 | 600 | 280 | 1.5-3.5 | 1750/1600/1100 | 11 | 1.1 | 2108 |
SF 4A | 0.37 | 296 | 386 | 0.2-0.4 | 700/700/750 | 1.5 | 0.55 | 466 |
SF 5A | 1.2 | 450 | 312 | 0.6-1.2 | 1100/1100/1100 | 5.5 | 1.1 | 1360 |
SF 6A | 2.8 | 550 | 268 | 1.5-3.5 | 1700/1600/1150 | 11 | 1.5 | 2126 |
SF 7A | 4 | 650 | 220 | 2-4 | 1850/2050/1200 | 15 | 1.5 | 2579 |
SF 8A | 8 | 760 | 191 | 4-8 | 2200/2900/1400 | 30 | 1.5 | 4116 |
