Features:
1. Automatic the wash on the baking all-in-one based on organic integration, to achieve developed from a machine basis. It has drying can be performed simultaneously. Automatic double-eluting bake one machine is composed of two parts with the upper and lower bunk for domestic first vertical structure models dryer.
2. AII functions with washing, spinning, drying use the LCD Control fully programmable, microprocessor with multi-programs. The one set machine can instead of two set separately washer and dryer. This machine friendly design and save space 100%.
3. Dryer uses an axial inlet form (under the front and rear motivated) than conventional radial inlet form more effective use of thermal energy and shorten the drying time than conventional radial inlet mode more efficient use of energy, reduce drying time and cost savings.
4. Double structure occupies a very small space, easy to move, easy to maintain.
5. Using the latest technology, Dryer main motor adopts Italian multi-polar energy-saving motors (power less than 1 OOW) power saving, low noise.Overall performance is more robust and stable, optimal cost-effective small drying machine.

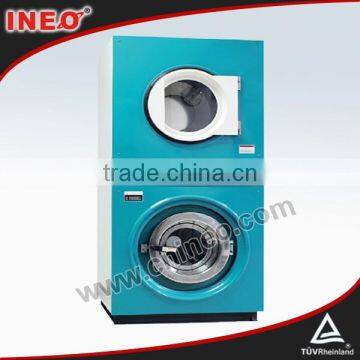

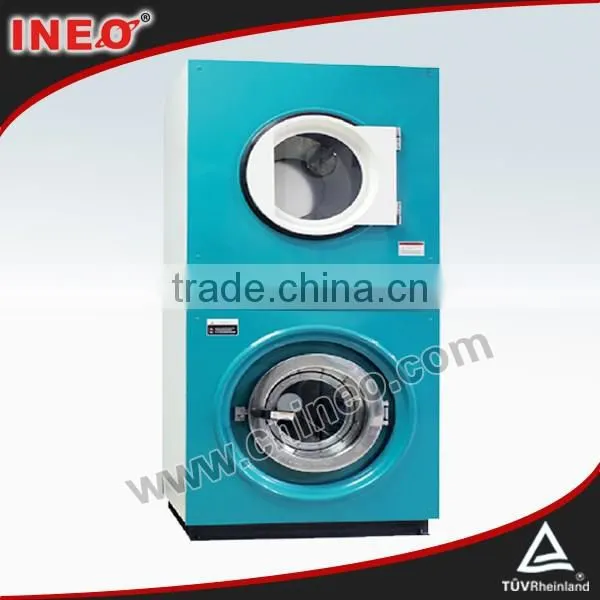

Upper Drying Bottom Washing Industrial Washing Machine Dryer/Commercial Washer And Dryer/Industrial Washing Machine With Dryer
| Model | YHG-210 | YHG-212 |
YHG-215 |
YHG-218 |
| Capacity | 10 kg | 12 kg | 15 kg | 18 kg |
| Washer Drum Diameter | Φ580 mm | Φ580 mm | Φ660 mm | Φ760 mm |
| Washer Drum Depth | 380 mm | 460 mm | 436 mm | 460 mm |
| Washing Speed | 40 rpm | 40 rpm | 40 rpm | 40 rpm |
| Spin-dry Speed | 800 rpm | 800 rpm | 800 rpm | 800 rpm |
| Dryer Drum Diameter | Φ680 mm | Φ680 mm |
Φ740 mm | Φ750 mm |
| Dryer Drum Depth |
570 mm | 680 mm | 500 mm | 645 mm |
| Dryer Drum Speed |
46 rpm | 46 rpm | 46 rpm | 46 rpm |
| Voltage(V) |
3N~380V/50Hz | 3N~380 V/50Hz | 3N~380 V/50Hz | 3N~380 V/50Hz |
| Washing Motor Power | 1.1 Kw | 1.5 Kw |
1.5 Kw | 1.5 Kw |
| Washer Heater Power | 4 Kw | 5.25 Kw |
5.25 Kw | 6 Kw |
| Dryer Motor Power | 0.09 Kw | 0.09 Kw |
0.09 Kw | 0.09 Kw |
| Dryer Heater Power |
6 Kw | 9 Kw | 12 Kw | 15 Kw |
| Fan Power |
0.55 Kw | 0.55 Kw | 0.55 Kw | 0.55 Kw |
| Installed Electricity Capacity | 20 Kw | 20 Kw | 20 Kw | 20 Kw |
| Water Inlet Size |
1/2" | 1/2" | 1/2" | 1/2" |
| Water Outlet Size | 2" | 2" | 2" | 2" |
| Air Outlet Size |
Ø100 mm | Ø100 mm | Ø100 mm | Ø100 mm |
| Dimension (LxWxH) | 880×800×1975 | 980x900x1975 | 1030x980x1975 | 1080x980x2075 |
| Machine weight(kg) | 370 | 420 | 450 | 480 |
