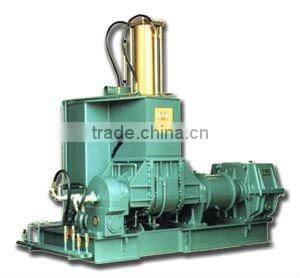

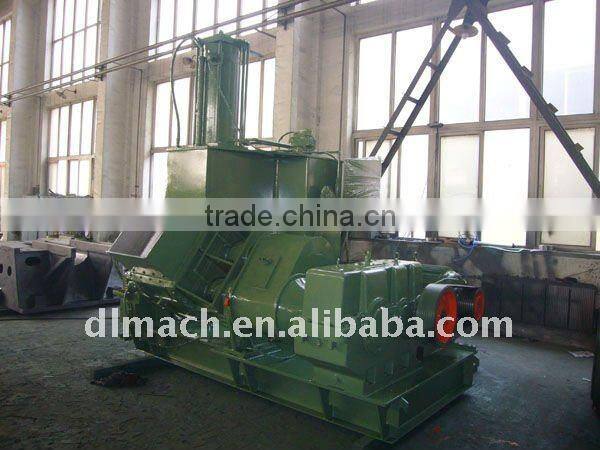

Rubber Pressure Dispersion Mixer
Specification:
Model | X(S)N- 55x32 | X(S)N- 75x32 | X(S)N- 110x30 |
Total Volume | 125 Liter | 180 Liter | 250 Liter |
Working Volume | 55 Liter | 75 Liter | 110 Liter |
Driving motor power( KW ) | 75 KW | 110 KW | 185 KW |
Tilting motor power ( KW ) | 2.2 KW | 4 KW | 5.5 KW |
Tilting angle | 140 ° | 140 ° | 140 ° |
Revolution speed of rotor( front/rear ) | 32/26 rpm | 32/26 rpm | 30/24.5 rpm |
Pressure of compressed air | 0.6-0.8 MPa | 0.6-0.8 MPa | 0.6-0.8 MPa |
Consumption of compressed air | ≥ 1.0 m 3 /min | ≥ 1.2 m 3 /min | ≥ 1.5 m 3 /min |
Pressure of cooling water (rubber mixing ) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Pressure of heating steam ( plastics mixing ) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
Overall Dimension (mm) | 3370x1950x3020 | 3770x2570x3160 | 4060x2750x3590 |
Weight | 8,200 | 11,600 | 15,600 |
2.Automatic operating
3.Manual operating
4.Overload control
5.Alarm sounding of over temperature
6.Working current
7.Alarm sounding of discharging materials
8.Display of temperature
9.Number of times for mixing process: 1,2,3
10.Work preparation
11.Starting up of the main motor
12.Automatic-operating mode-Manual
13.Turning-Mixing chamber-Return
14.Rise·Float Weight·Fall
15.Automatic starting
16.On-Temperature Alarming-Off
17.On-Discharging sounding-Off
18.Main motor stop
19.Complete machine stop
We got CE and ISO9001 Certificates.
We export this machine to many countries. Such as: Indonesia, Japan, Brazil,etc.
About Our Company:
Dalian Mach Co., Ltd. specializes in exporting all kinds of machinery such as Metal Processing Machines, Paper Processing Machines, Packaging Machines, Rubber Machinery, Pharmaceutical Machines, Daily Product Making Machines and Forklifts. With more than twenty years' experience, our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.
Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
...
