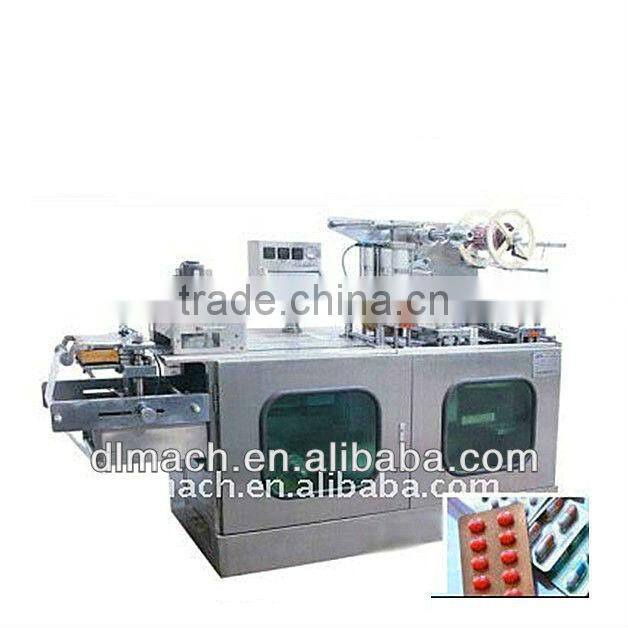

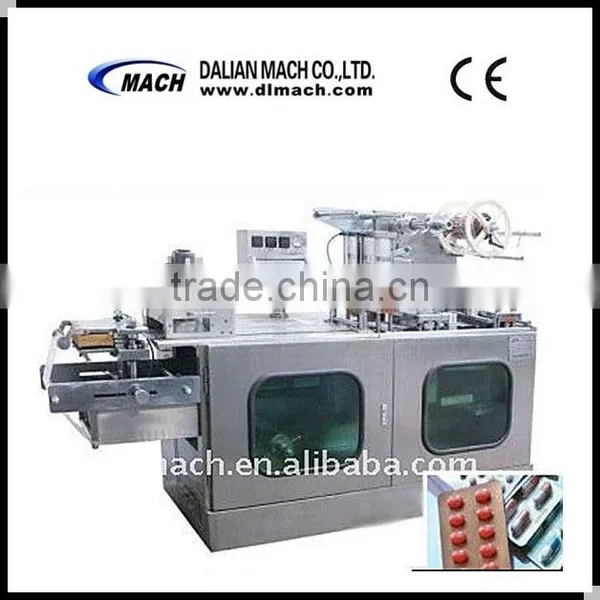

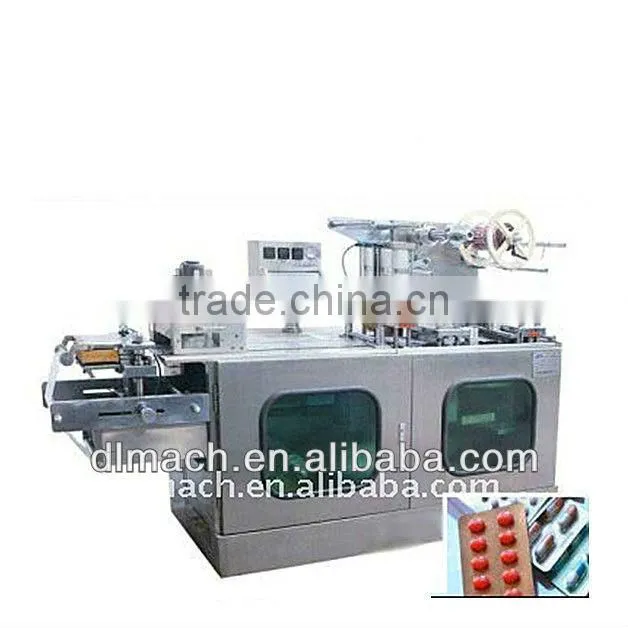

DL-140 Automatic Blister Packing Machine
Features:
- Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
- Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
- With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
- Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
Machine Introduction:
It is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and dosage room of hospital, especially, small batch and many kinds. The machine is adopted with micro-computer PLC, frequency converter, touch panel operation. It can automatically finish the processed of feeding, molding, heat-sealing, impressing, stamping and so on. It is the ideal packaging equipment convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
Main Technical Parameters:
| Cutting Frequency(Times/min) | 6-50 |
| Production Capacity (ten thous pics/h) | 2-11 |
| Max Forming Area And Depth(mm) | 130×130×26 (Standard Depth 14mm) |
| Stroke(mm) | 40-140(Can Be Manufactured As User's Requirements) |
| Standard Plate(mm) | 80×57(Can Be Manufactured As User's Requirements) |
| Air Pressure(Mpa) | 0.4-0.6 |
| Air Supply | ≥0.2m3/min |
| Total Power | 380V/220V 50Hz 3.6KW |
| Main Motor Power (KW) | 0.75 |
| PVC Hard Pieces(mm) | 0.15-0.5×140 |
| PTP Aluminum Foil(mm) | 0.02-0.035×140 |
| Dialysis Paper(mm) | 50-100g×140 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions(mm) | 2300×560×1410(L×W×H) |
| Weight(kg) | 750 |
About our company:
DALIAN MACH CO.,LTD specialize in manufacturing and exporting all kinds of machinery. Such as: Metal Processing Machine, Paper Processing Machine, Packaging Machine, Rubber Machine, Pharmaceutical Machine, Daily Product Making Machine, Forklift, etc. With more than twenty-year experience, Our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our machines will be runned on good performance based on high quality.
Our products have been exported to more than 60 countries. Such as: Canada, U.S.A, Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, U.A.E, Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya, Ghana,etc.
We sincerely hope to establish long-term cooperative relationship with you and become a true partner who is always available when you need our service
...
