Peanut Butter Machine for Sale

Specifications

peanut butter machine for sale

100% Manufacturer & Supplier

Technological process of peanut butter maker

Materials→Eliminating the impurity→Roasting→Cooling →Peeling →Selecting→Coarse grinding→ Mixxing into food additives →Accurate grinding→Removing the air → Cooling → Filling

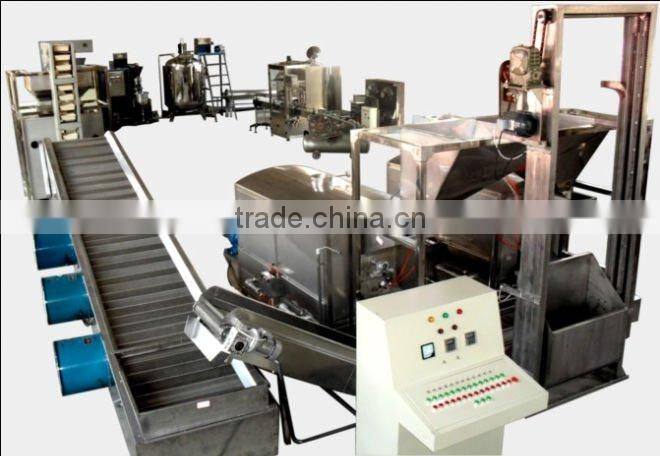

Main Equipment of peanut butter maker

Elevator/Hoisting Machine, Foreign Matter Removal Machine,Peanut Roaster, Conveying Belt, Cooling Belt, Peeling Machine, Selecting/Picking Belt, Automatic Feeding Device, Rough Grinding Machine, Mixing and Conveying Device, Refining Mill, Cooling and Mixing Machine, Vacuum De-air Machine, Filling Machine.

peanut butter maker   -----Roasting:

Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.use batch roaster will bake some delicious smells.

Continuous nut roaster working temperature:160-180degree,30-40 minutes

peanut butter maker   ----Cooling:

Peanut will be send cooling belt to cool.

peanut butter maker  - Peeling:

Put the roasted peanuts into peeler to take off the red skin,

the double rollers will frication the red skin, the simple cyclone system will suck

the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and

un-blanched peanut kernel is picked up by manual or mechanical

 (It is matched with manual type conveyor in the quotation)

peanut butter maker  ---Primary grinding:

Using steel grinder to make the first grinding;

peanut butter maker  ---Second grinding:

Using colloid grinder to make the second grinding, the fineness of grinding is

controlled below 7um, temperature of grinding is controlled below 68C.

peanut butter maker ---Mixing:

make the butter more homogeneous

peanut butter maker  ----Cooling:

 the butter through second grinding should be cooled immediately.

The temperature should go down 45C.

peanut butter maker  --Degasser :

Take out the air from peanut butter.

peanut butter maker   ---Storage tank:

settling down in the storage tank till the temperature drop to air

temperature.

peanut butter maker   -- Packing:

by the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.
