Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > 5XZC-15BXA Seed Cleaning Machine for Black White Sesame Seed

5XZC-15BXA Seed Cleaning Machine for Black White Sesame Seed

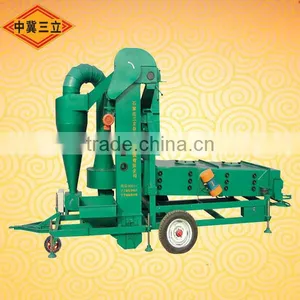

5XZC-15BXA Seed Cleaning Machine for Black White Sesame Seed photo-1
US$ 6,300 - 6,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
5XZC-15BXA
Use:
Seed cleaning machine for black white sesame seed
Certification:
ISO9001:2008
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Type 5XZC-15BXA
Use Seed cleaning machine for black white sesame seed
Certification ISO9001:2008
Place of Origin Hebei, China
Brand Name SANLI
Model Number 5XZC-15BXA
Condition New
After-sales Service Provided Engineers available to service machinery overseas

5XZC-15BXA Seed cleaning machine for black white sesame seed



Features

  1. The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
  2. The vibrating is four layers sieves with five exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
  3. The machines are used for seed and agriculture byproducts processing,
  4. The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
  5. The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.

The main performance indicators and technical parameters





Model

5XZC-15BXA

5XZC-15DXA

Capacity

10000 Kg/h

10000 Kg/h

Size (L*W*H)

4640*2350*3560mm

4640*2350*3560mm

Sieve Layers

3

4

Weight

1980 Kg

2030 Kg

Power supply

380V/50Hz/3-Phase

Total power

10.5 kW

10.5 kW

Selection rate

≥98%

≥98%

Clarity

≥97%

≥97%

Broken rate

 ≤0.2%

 ≤0.2%

Impurities rate

≤3%

≤3%

Remarks

With Cyclone duster

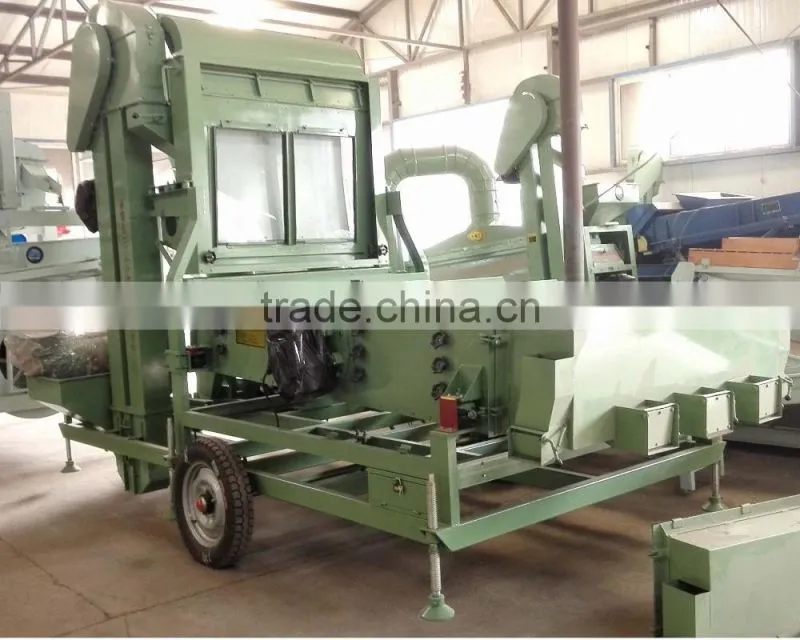

Products details:



5XZC-15BXA Seed cleaning machine for black white sesame seed





Customer visit:



5XZC-15BXA Seed cleaning machine for black white sesame seed



5XZC-15BXA Seed cleaning machine for black white sesame seed



5XZC-15BXA Seed cleaning machine for black white sesame seed



Contact information:



5XZC-15BXA Seed cleaning machine for black white sesame seed
