5XZC-7.5BXA Sorghum Maize Seed Cleaner and Grader Machine

5XZC-7.5BXA Sorghum Maize Seed Cleaner and Grader Machine thumbnail-1
5XZC-7.5BXA Sorghum Maize Seed Cleaner and Grader Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SANLI
Model Number:
5XZC-7.5BXA seed processing machine
Contact Supplier Request Quote Chat Now
Shijiazhuang Sanli Grain Sorting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name SANLI
Model Number 5XZC-7.5BXA seed processing machine
Type Grain Processing Equipment

Specifications

5XZC-7.5BXA Seed cleaner
Productivity: 7500kg/h
Power: 10.1 kW
Weight:1800kg
Size: 5340*2060*3200mm

5XZC-7.5BXA Seed processing machine

Features:

  1. The5XZC-7.5BXA seed cleaner sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
  2. The vibrating is three layers sieves with four exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
  3. The machines are used for seed and agriculture byproducts processing.
  4. The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
  5. The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.
  6. With cyclone, more environment protection.

The main performance indicators and technical parameters



Model 5XZC-7.5BXA 5XZC-7.5DXA
Productivity  7500 Kg/h 7500 Kg/h
Size (L×W×H) 4630×2100×3310mm 4630×2100×3310mm
Sieve Layers 3 layers 4 layers
Weight 2050 Kg 2100 Kg
Power supply 380V  50Hz 380V  50Hz
Total power 10.1 Kw 10.1 Kw
Selection rate ≥96% ≥96%
Clarity ≥97% ≥97%
Broken rate ≤0.5% ≤0.5%
Impurities rate ≤2% ≤2%
Remarks With Cyclone duster With Cyclone duster

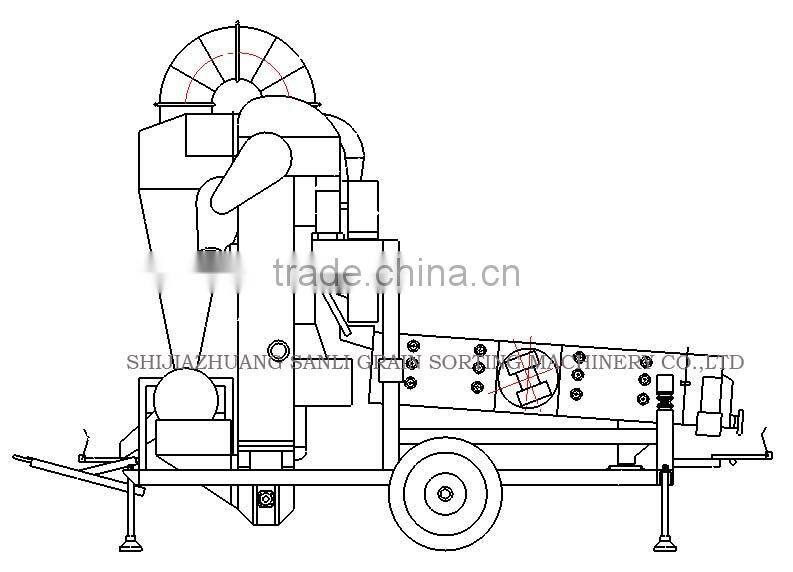

5XZC-7.5BXA sorghum maize seed cleaner and grader machine
