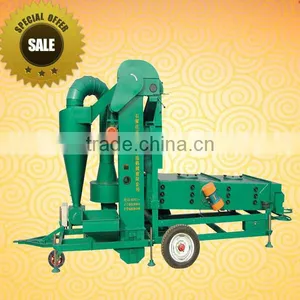

5XZC - 7.5BXA Air Screen Seed Cleaner and Grader
US$ 5,900 - 6,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Sanli
Model Number:
5XZC-7.5BXA
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5XZC-15DXA Sorghum Sesame Air Screen Grain Seed Cleaning MachineUS$ 6,500 - 6,800MOQ: 1 Set -
5XZC-15DXA Corn Wheat Sorghum Beans Seed Cleaning MachineUS$ 6,500 - 6,700MOQ: 1 Set
-
5XZC-5BX Cocoa Bean Coffee Bean Seed Cleaning MachinesUS$ 5,300 - 5,500MOQ: 1 Set
-
5XZC-5BX Soybeans Sorghum Cumin Wheat Seed Cleaning MachineUS$ 5,300 - 5,500MOQ: 1 Set
-
5XZC-5BX Sorghum Seed Cleaning MachineUS$ 5,300 - 5,500MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Sanli
Model Number
5XZC-7.5BXA
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas

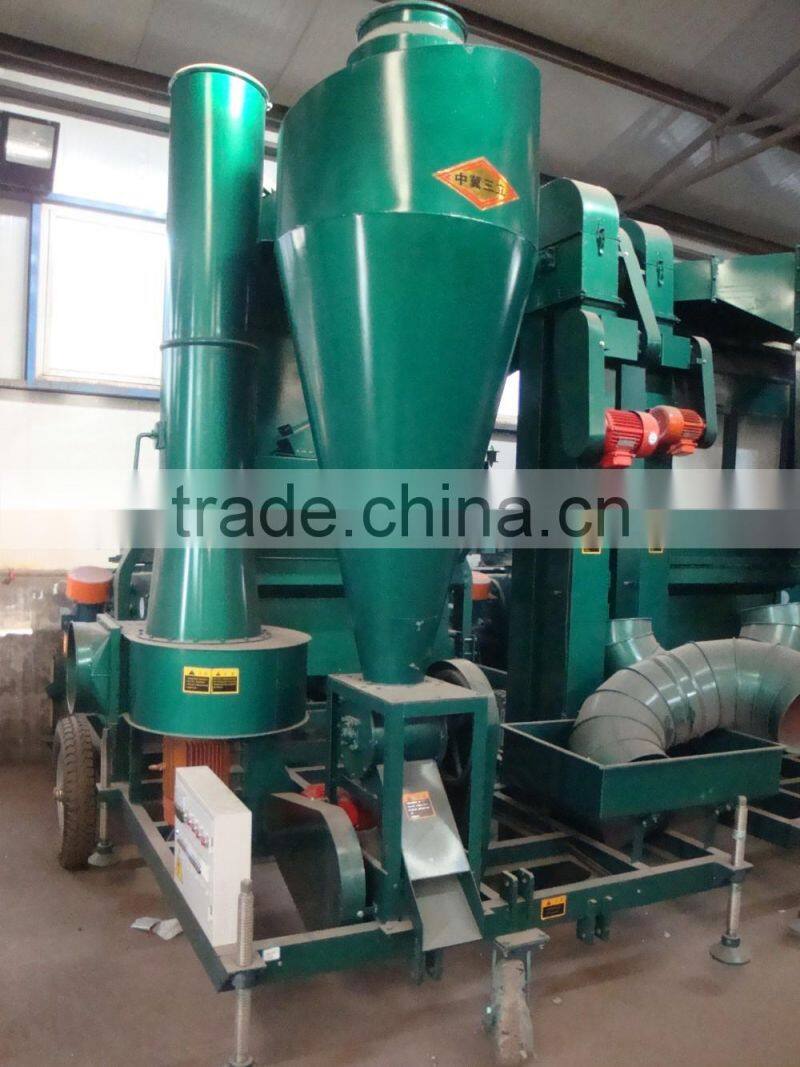

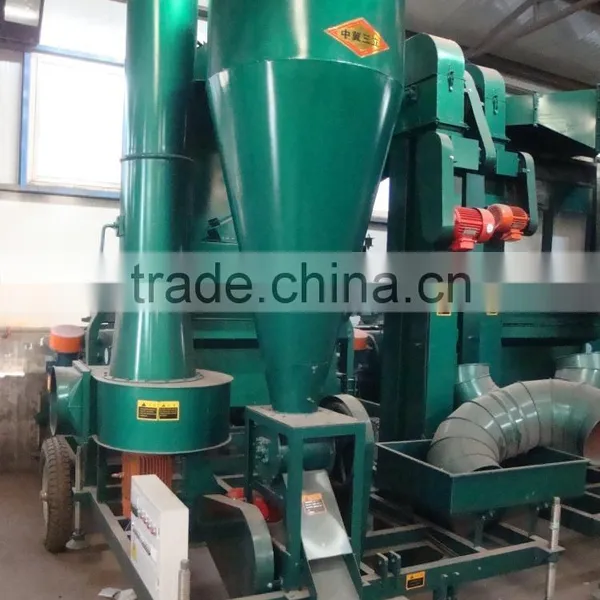

5XZC-7.5BXA Air screen seed cleaner and grade
Features:
- The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
- The vibrating is three layers sieves with four exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
- The machines are used for seed and agriculture byproducts processing.
- The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
- The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.
- With cyclone, more environment protection.
The main performance indicators and technical parameters
| Model | 5XZC-7.5BXA | 5XZC-7.5DXA |
| Productivity | 7500 Kg/h | 7500 Kg/h |
| Size (L×W×H) | 4630×2100×3310mm | 4630×2100×3310mm |
| Sieve Layers | 3 | 4 |
| Weight | 2050 Kg | 2100 Kg |
| Power supply | 380V 50Hz | 380V 50Hz |
| Total power | 10.1 Kw | 10.1 Kw |
| Selection rate | ≥96% | ≥96% |
| Clarity | ≥97% | ≥97% |
| Broken rate | ≤0.5% | ≤0.5% |
| Impurities rate | ≤2% | ≤2% |
| Remarks | With Cyclone duster | With Cyclone duster |

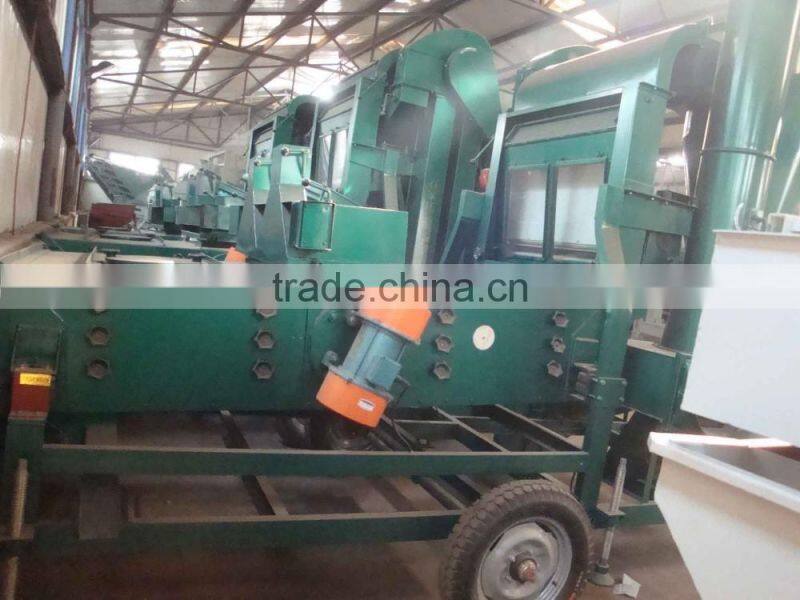

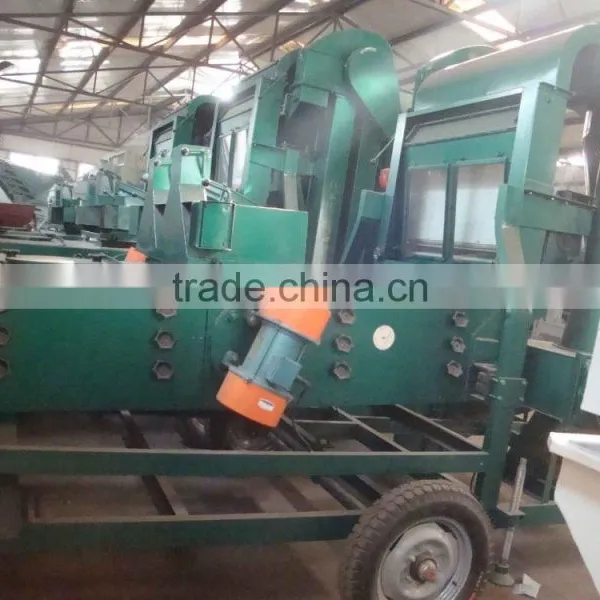

Product details:
Company Brief:
We produce Gravity separator, De-stoner, Seed cleaning machine, Grain cleaner and grader, Grain processing equipment, Wheat corn seed cleaning machine, Air screen seed cleaner, Seed Processing Machinery, seed coating machine.
Customer visit:
Main markets:
Domestic Market, Africa, Eastern Asia, Southeast Asia, South America, Oceania.
After sales service:
We can send our technicians to guid equipment installation and operation

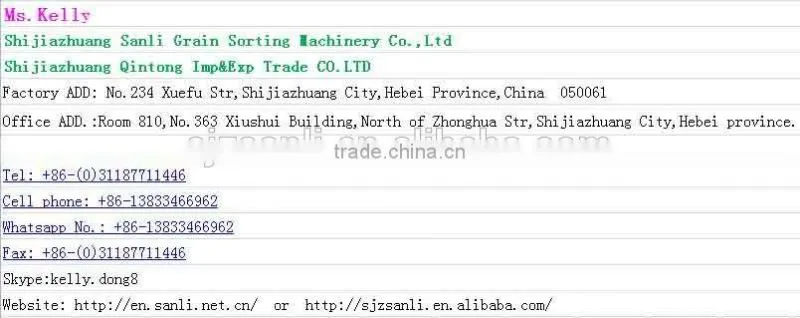

Contact information:
Send Inquiry to This Supplier
Mr. Jason Wei
Manager
Shijiazhuang Sanli Grain Sorting Machinery Co., Ltd.
Shijiazhuang, Hebei, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
