Meatball Forming Processing Line Machinery
US$ 1,500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Meatball Forming Line MachineUS$ 1,500 - 3,000MOQ: 1 Set -
DJ-50 High Frequency r Beating( Beater) MachineUS$ 1,500 - 3,000MOQ: 1 Set
-
DJ-100/150 High Frequency r Beating( Beater) MachineUS$ 1,500 - 3,000MOQ: 1 Set
-
DJ-350 Hydraulic Lift Beating( Beater) MachineUS$ 1,500 - 3,000MOQ: 1 Set
-
DJ-350 Hydraulic Lift Beating( Beater) MachineUS$ 1,500 - 3,000MOQ: 1 Set
After-sales Service Provided
Engineers available to service machinery overseas

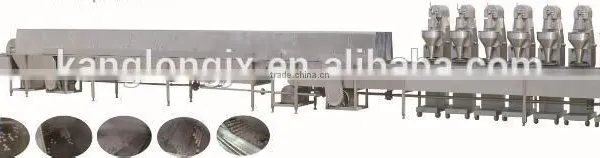

Name:Meatball forming lines
Meatball cooking cooling lines (referred Meatball Machine line) consists of three major components, namely forming and cooking section,cooling section, transmission parts.
Molding groove and cooking water tank heated by two tank steam pipes, the water temperature with high temperature steam flow Zhuangvalve controlled by regulating, shaping tank water temperature reaches about 75 degrees, cooking tank water temperature is about 90 degrees. Forming tank hot water circulation pump water through the formation of water, after the meatballs into the water began to flowmolding groove end of this process by regulating the flow control valve to control the flow rate of water flow rate meatballs, which according to the process to make meatballs to achieve the desired molded state.
After forming the meatballs to be cooked in the cooking tank further by turning the dial plate uniform moved to the end of the cooking tank.The time required for cooking different varieties meatballs can be adjusted to control the rotational speed dial plate.
Through the chain drive to the cooling tank in the cooling tank to be meatballs rapid cooling, the cooling water in the open tank, that theoverflow into the cold water, the cooling bath temperature has been reached in about 20 ° -25 ° . After cooling in the cooling tank meatballsdirectly into frozen hanging ice frozen workshop.
Machine made of stainless steel, truly making meatballs automation, reduce labor intensity, increasing the production of meatballs, and more to improve the production efficiency.
The main technical parameters:
Molding groove and cooking water tank heated by two tank steam pipes, the water temperature with high temperature steam flow Zhuangvalve controlled by regulating, shaping tank water temperature reaches about 75 degrees, cooking tank water temperature is about 90 degrees. Forming tank hot water circulation pump water through the formation of water, after the meatballs into the water began to flowmolding groove end of this process by regulating the flow control valve to control the flow rate of water flow rate meatballs, which according to the process to make meatballs to achieve the desired molded state.
After forming the meatballs to be cooked in the cooking tank further by turning the dial plate uniform moved to the end of the cooking tank.The time required for cooking different varieties meatballs can be adjusted to control the rotational speed dial plate.
Through the chain drive to the cooling tank in the cooling tank to be meatballs rapid cooling, the cooling water in the open tank, that theoverflow into the cold water, the cooling bath temperature has been reached in about 20 ° -25 ° . After cooling in the cooling tank meatballsdirectly into frozen hanging ice frozen workshop.
Machine made of stainless steel, truly making meatballs automation, reduce labor intensity, increasing the production of meatballs, and more to improve the production efficiency.
The main technical parameters:
Model | WLH-2 | WLH-4 | WLH-6 | WLH-8 |
Power(KW) | 1.65 | 2.05 | 3.3 | 3.3 |
Meatball machinecan be equipped with(set ) | 2 | 4 | 6 | 8 |
Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Yield (tons / shiftproduction) | 2-4 | 4-6 | 8-10 | 14-16 |
Power supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Transmission | Frequency conversion stepless speed / PLC control | Frequency conversion stepless speed / PLC control | Frequency conversion stepless speed / PLC control | Frequency conversion stepless speed / PLC control |
Dimensions(mm) | 5500x560x1000 | 9500x560x1200 | 13500x760x1250 | 17500x760x1250 |
