High efficiency peanut shelling machine
Brief introduction of peanut shelling machine:
The peanut shelling machine is an universal product that is developed based on the current peanut market demand, it's main characteristic is the processed peanut kernel has low broken rate, sorting clean, good color, less impurity, and all the indicators meet the national standards.
Structure features and working principle of peanut shelling machine:
Ths machine adopts grain rod, grid, concave plate, draught fan, gravity separation and secondary elevator, etc, simple and compact structure, simple operation, steable performance, safe and reliable.
Operation principle: the peanut is feeding to fall on the coarse grid, because the rolling force between rotating plate and fixed grid concave plate, to spin out the peanut kernel and shell, then all falling on the screen, then blowing out most of the peanut shell out off the machine through the air duct by wind. The peanut kernel and part of the unpeeled small fruit together falling onto the proportion sorting sieve. Through seperation, the peanut kernel on screen line, through the mouth into the sack, and the unpeeled small peanut fruit underside the sieving after discharging crossing into the elevator, again by elevator into the shell fine grid to have secondary shelling. Through screening all can be shelled.
Technical parameters of peanut shelling machine:
| Production capacity | 800 kg/h |
| Net rate of shelling | > 95% |
| Damage rate | ≤ 5% |
| Cleanliness | ≥ 95.5% |
| Dimension (L*W*H) | 1200*660*1240mm |
| Power | YL9032-2 stage / 2.2kw |
| Total weight (include motor) | 137 kg |
| Operation | 1-2 person |
The requirements for correct using of peanut shelling machine:
1. Requirements of peanut shelling machine:
a: Hulling clean, high productivity. For hulling machine with cleaning device, also requires higher cleanliness.
b: Low loss rate, low breakage rate.
c: Simple structure, reliable use, convenient adjustment, less power consumption, is also has certain versatility, can shell a variety of crops, to improve the utilization efficiency of the machine.
2: Requirements of peanut fruit:
The peanut fruit wih moderate wet and dry rate, if it is too dry, the broken rate is high; too wet will influence the operation efficiency.
Service for customers:
1. Pre-sale service
In service of users: production introduction, technical disclosure, provide solutions, quality assurance.
2. On-sale service
♥. In the process of using the equipments, our company regularly access to the customers, ask the feedback of users to product quality and using conditions, etc, strive to further improve product quality, comprehensive performance.
♥. Arrange personnel to the users to train relevant personnel for using equipment, troubleshooting, debugging and maintenance of specialized training.
3. After-sale service:
♥. Equipment (in normal use) within the warranty period, has warranty services. The whole machine warranty is 12 months, expect the wearing parts.
♥. To the problem of customers' complaint about quality, immediately reaction, the marketing services personnel in 8 hours to the scene, in the province within 24 hours, 48 hours for domestic and foreign countries within 72 hours.
Certificates:

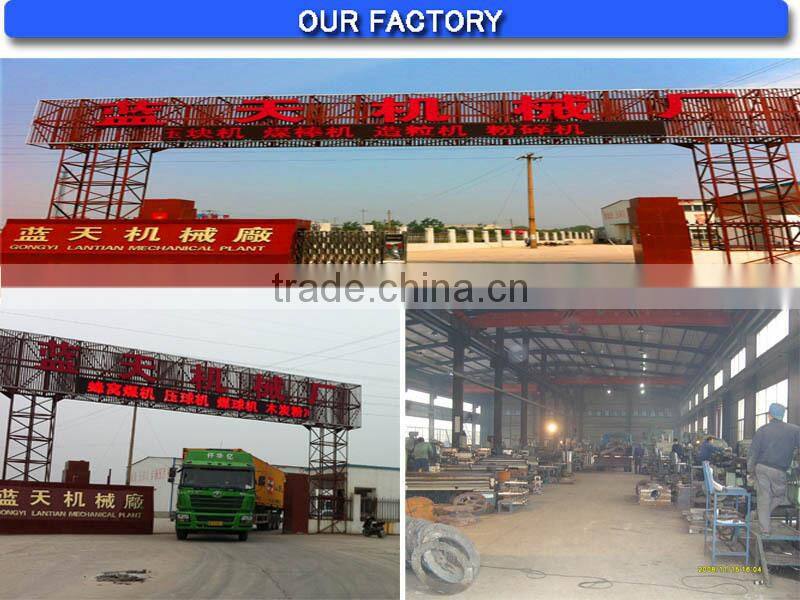

Work place:
The interactions between us and our customers:
Year after year, customers from different countries come to us to check the performance. After using our machines, they will retroaction the using conditions and give their precious opinions to us. The mutual trust and cooperation between us promoting our enterprise keep growing. Thank you very much for the encourage and help, we will never stop to improve the quality of our products and design new types to repay our old and new customers, give you a satisfactory answer.
Welcome sincerely to our company to build business internations!
