LT500 11t/h coal powder/coal pellet machine1.new design and new standard
2.low power consumption
3.good market prospect

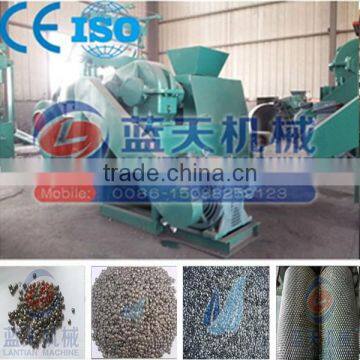

LT500 11t/h coal powder/coal pellet machine in workshop
Brief introduction of coal powder pellet machine:
The "Lantian" coal powder pellet machine is a new type of powder material granulation equipment. It adopts high quality anti-corrosion and wear-resistant materials elaborate manufactured, has perfect appearance, simple operation, low energy consumption, long service life, high pelleting rate, etc. Is now the advanced granulation equipment, and the most popular
granulation machine.
Main characteristics of Lantian coal powder pellet machine:
1. Wide use, and the strength of granule is adjustable according to material.
2. The diameter of granule is optional, high molding rate, intact particle shape.
3. High strength, transport, measuring and packaging accurate and convenient.
4. Compact structure, simple operation, short process, low failure rate.
5. Large elasticity of operation, the adaptation scope is wide, the size of the extrusion pressure can be adjusted by hydraulic pressure.
6. The zinc powder pellet making machine high level of automation.
The operation principle:
This series coal powder pellet machine operation principle is: the motor drive the belt and pulley through reducer passing the power to the driving shaft, and the driving shaft through the open gear synchronization with the driven shaft, extrusion granulation.
Technical parameters of coal powder pellet machine:
| Model | LT220 | LT290 | LT400 | LT500 |
| Grabule diam (mm) | Φ2- Φ20 | Φ2- Φ20 | Φ2- Φ20 | Φ2- Φ20 |
| Power (kw) | 7.5-11 | 11-15 | 15-18.5 | 22-25 |
| Output (t/h) | 0.5-0.8 | 1-1.5 | 2-2.5 | 3-5 |
| Preloading power (kw) | 7.5 | 7.5 | 11 | 15 |
| Regulator device | Mechanical or hydraulic | Mechanical or hydraulic | Mechanical or hydraulic | Mechanical or hydraulic |

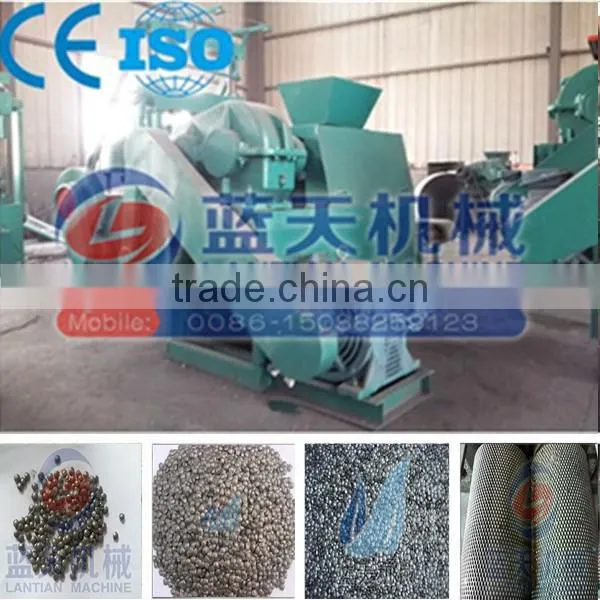

The rollers and granule samples of coal powder pellet machine:
Notice for using coal powder pellet machine:
1. This machine should be started under no-load condition, started with material is forbidden.
2. Strictly prohibit that material with iron into the machine, so as not to break the roller.
3. Before starting the gear part should be redictors oil.
4. The chain and sprocket wipe redictors oil every 7 days.
5. Bearing seat redictors of oil once every three months.
6. The reducer must add gear oil before started, every four months changing gear oil once.
The handling of coal powder pellet machine normal issues:
| Issues | Reasons | Methods of handling |
| Ball socket circumferential displacement | A: complete set of bolt looseness B: roller and shaft loose | A: adjust the stock and tighten the belt B: replace the roller or shaft |
| Can not molding ball or just molding pie shape | A: underfeeding B: excessive clearance C: clearance middle is big and two ends small | A: meet the feeding B: adjust gap between rollers C: grind off two ends, smaller the gap |
| Not discharging ball | A: high moisture content B: ball pressure intensity is not enough C: the new mould of rough surface | A: using dry material B: Reducing gap of two rollers C: abrasive grinding |
Packaging and Shipping of Our Machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
< We promise: >
1. Manufacturing high quality products:
From material purchasing to the finished products: we strictly according to the National Quality Inspection Standards, not only the shisha tablet machines, but also the ancillary equipments for the whole production line.
2. Be good faith producers:
Our quality is consistant, what we are doing just what we have been saying, what you need to do is to rest assured use our machines and equipments.
3. Warm and thoughtful service:
♥. Pre-sale service: design and manufacture machines for you as your requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany you to check the performance, and finish the shipment.
♥. After-sale service: engineers are available to install the equipments, commissioning and training operators on site.
Company introduction:
Established in the 1980s, our company after 30 years of development and expansion, our factory has developed into a professional enterprise specialized in R & D, design, manufacture, sale and after-sales service. In order to meet the different requirements of customers, we designed and researched many types of briquette machine, and the LFM series of small briquette machine are the best-selling of all products.
