China Supplier Sludge Briquette Making Machine for Clay Coal or Charcoal Material

China Supplier Sludge Briquette Making Machine for Clay Coal or Charcoal Material photo-1
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Production Capacity:
50 sets per month
Motor Type:
DC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Oingdao Shanghai Il kersh port Alataw Pass etc
Delivery Detail:
Delivery time depends on order quantity.
Production Capacity 50 sets per month
Motor Type DC Motor
Power(W) 5.5kw, 7.7kw, 11kw, 15kw, 18.5kw, 22kw, 25kw, 30kw,75kw,130kw
Place of Origin Henan, China
Brand Name Lantian
Model Number According your requirements
Dimension(L*W*H) According the model
Certification CE, ISO, ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

sludge briquette making machine
1.high strength and output
2.good toughness, good wear-resisting performance

China supplier sludge briquette making machine for clay coal or charcoal material





China supplier sludge briquette making machine for clay coal or charcoal material





Brief introduction of sludge briquette making machine:



The "Lantian" sludge briquette making machine is mainly used for pressing coal powder, coal slime, lignitous



coal, ect, the materials. The sludge briquette making machine can make the coal powder one-time molding,



high productivity, good hardness, has been come into used in many power plant, coal washery, coal



briquette molding plant, has good effects.





China supplier sludge briquette making machine for clay coal or charcoal material



The operation principles of sludge briquette makin machine:



The sludge briquette making machine operation principles is like this: the power produced by the motor,



through the V belt to the reducer, then through the coupler to the drive shaft, then by a pair of open gear,



to ensure the two rollers synchronous (constant speed reverse).



The simple flow: Motor → V belt → Reducer → Coupler → Open Gear → Rollers.





Production flow:





China supplier sludge briquette making machine for clay coal or charcoal material

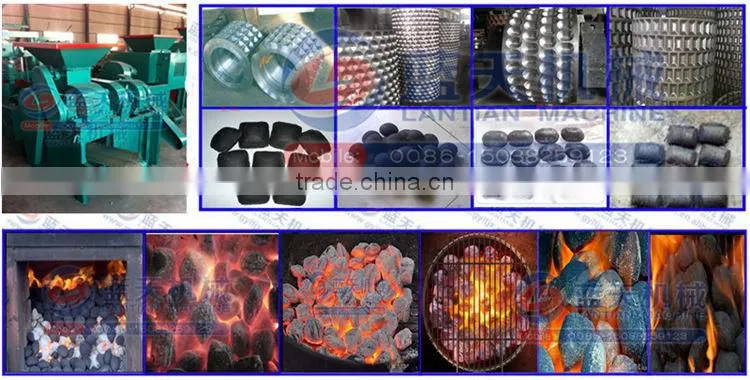

The moulds and samples and the application of briquettes:



With the improvement of people's aesthetic concept, and the advocating of environmental protection and



energy saving, our factory design and develop a series of new types of sludge briquette making machine,



and all types with many different kinds of rollers, any shape you need, we will create it for you!





China supplier sludge briquette making machine for clay coal or charcoal materialChina supplier sludge briquette making machine for clay coal or charcoal material





The technical parameters of sludge briquette making machine:





Model Roller Diam (mm) Production Capacity (t/h) Motor Power (kw) Regulator Device



Spherical Size



  290            290                             2-3                             5.5

 Mechanical Pressure

 Regulating

  User Setting
  360            360                  4-6           7.5-11

 Mechanical Pressure

 Regulating

  User Setting
  450            450                  6-8           11-15

 Mechanical Secondary

 Compression

  User Setting
  500            500                 8-11          18.5-22

 Mechanical Secondary

 Compression

  User Setting
  650            650                11-18           22-25

 Mechanical Secondary

 Compression

  User Setting
 850            850                20-35           30-75

 Mechanical or Hydraulic

 Adjustment

  User Setting
 1000           1000                40-70          75-130

 Hydraulic Pressure

 Adjustment

  User Setting

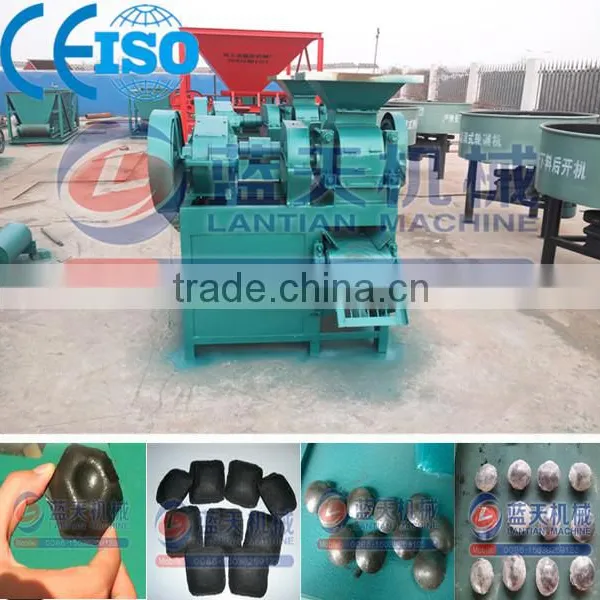

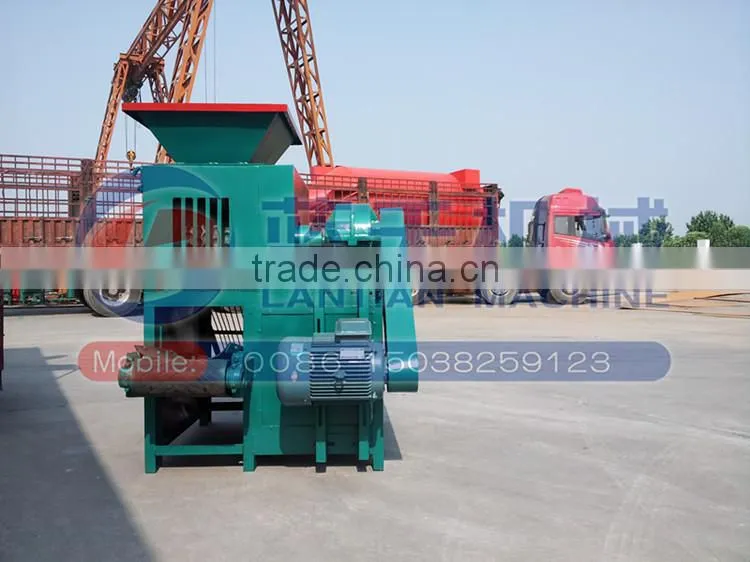

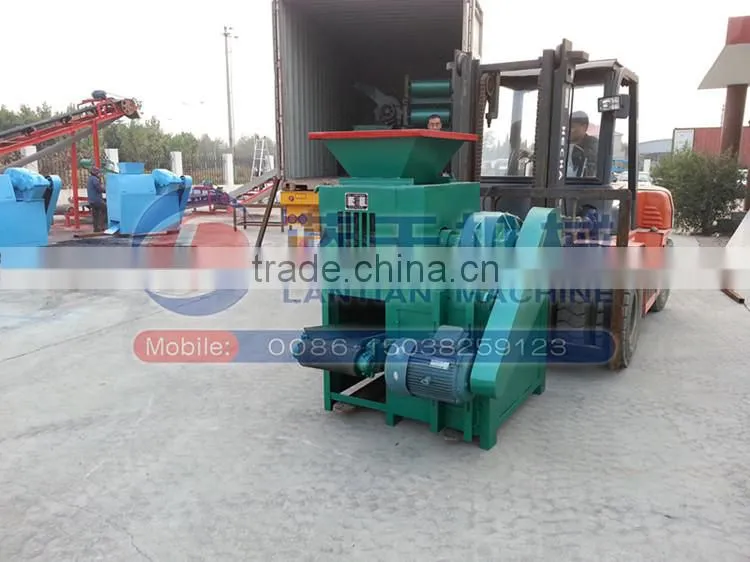

Machine pictures:





China supplier sludge briquette making machine for clay coal or charcoal materialChina supplier sludge briquette making machine for clay coal or charcoal material



Certificates:





China supplier sludge briquette making machine for clay coal or charcoal material

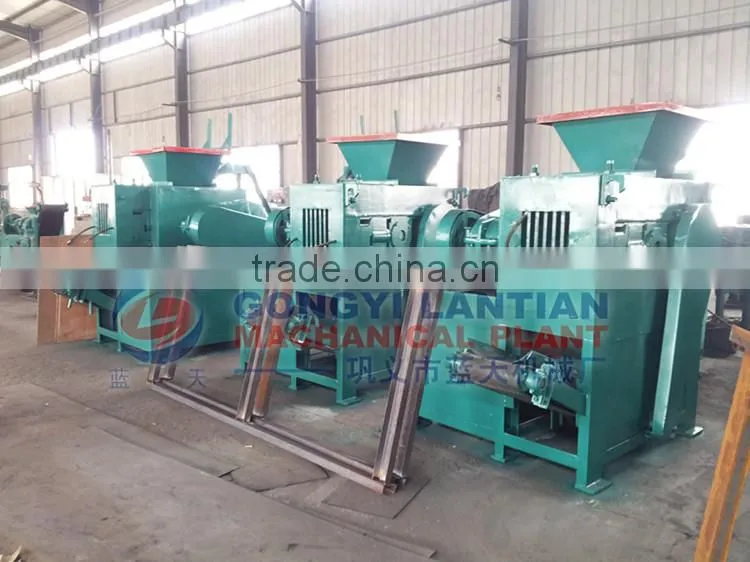

Foreign customers in our workshop checking the machines:



China supplier sludge briquette making machine for clay coal or charcoal material





Service for customers:



1. Pre-sale service



In service of users: production introduction, technical disclosure, provide solutions, quality assurance.



2. On-sale service



♥. In the process of using the equipments, our company regularly access to the customers, ask the feed-



back of users to product quality and using conditions, etc, strive to further improve product quality, com-



prehensive performance.

♥. Arrange personnel to the users to train relevant personnel for using equipment, troubleshooting,



debugging and maintenance of specialized training.

3. After-sale service:

♥. Equipment (in normal use) within the warranty period, has warranty services. The whole machine



warranty is 12 months, expect the wearing parts.

♥. To the problem of customers' complaint about quality, immediately reaction, the marketing services



personnel in 8 hours to the scene, in the province within 24 hours, 48 hours for domestic and foreign



countries within 72 hours.





China supplier sludge briquette making machine for clay coal or charcoal material
