Specifications
bauxite briquettes making machine press1. 30 years experience
2. CE, ISO, SGS certificates
3. Thoughtful service
Brief introduction of bauxite briquettes making machine press:
Bauxite briquettes making machine press is mainly used to press the bauxite powder, etc, that mixed with a certain proportion of binder, to carbon briquettes which with certain shape and certain physical and chamical properties. It is one kind of the most popular bauxite powder briquette molding equipment both in domestic and overseas markets. The bauxite powder briquettes that pressed by our bauxite briquettes making machine press with the merits of energy saving and environment protestion, easy for storage and convenient for transportaion, etc.

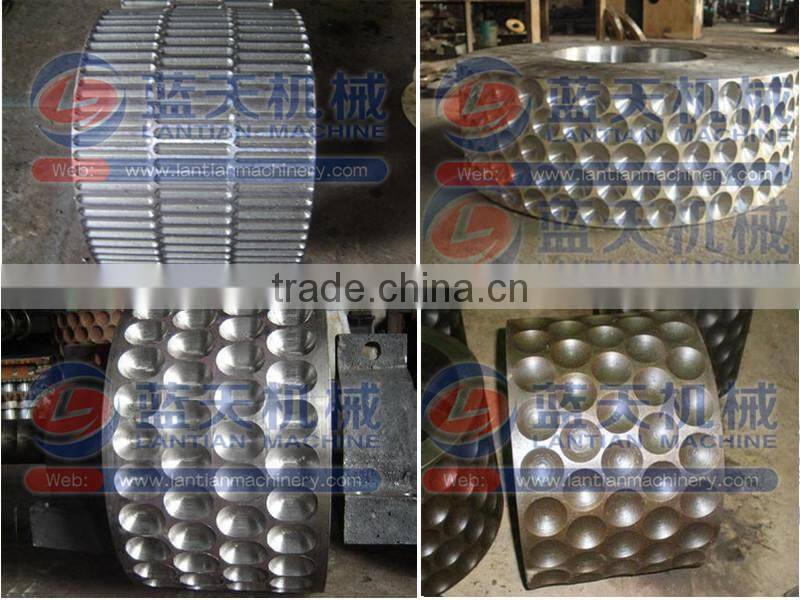

In order to enhance the intensity of pressure, the rollers manufacturered by our factory all adopt 65 manganese, nine chrome molybdenum, the hardness over 60 level. Using high wear-resistant sole processing technology, improve the service life of 5-8 times. Besides, we have also designed a new type of four-roller briquette pressing machine, which the pressure is highly improved.

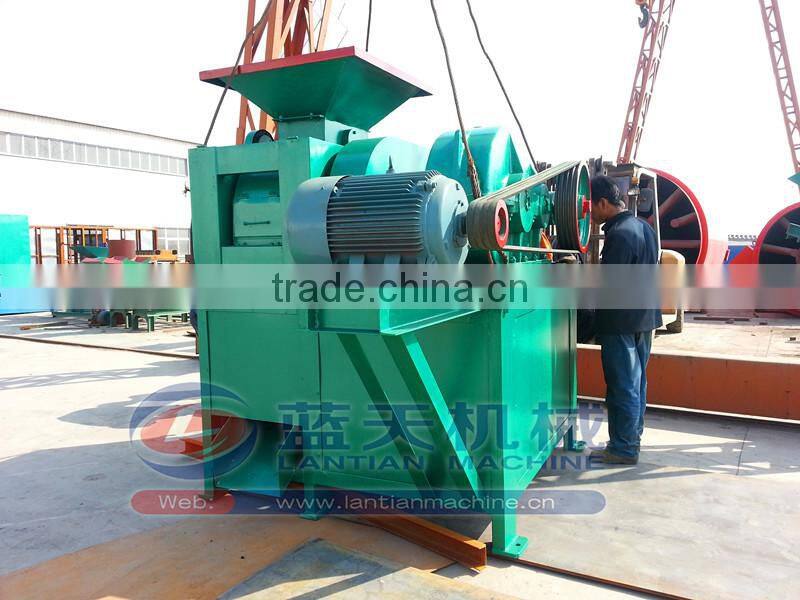

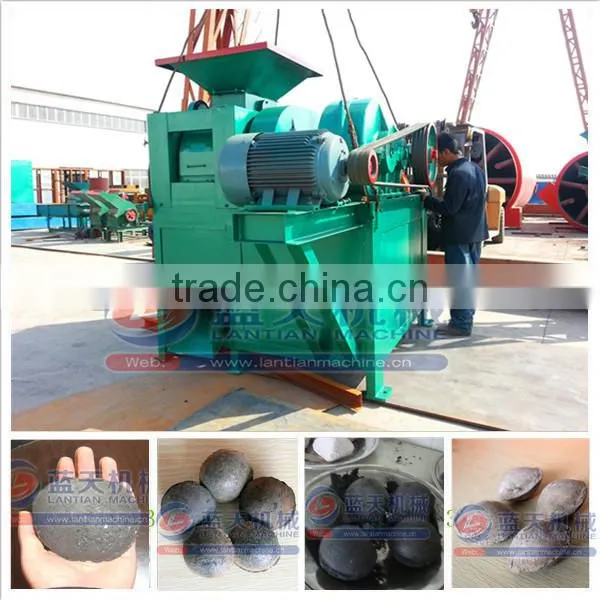

Our bauxite briquettes making machine press is consists of three main parts: the feeding part; transmission part; molding part.
1. The feeding part: it is meanly for bauxite material from hopper evenly into the machine between the rollers for briquetting.
2. The transmission part: it is the main drive system, including the motor, reducer, triangle strip, coupling, driving spindle, open gear.
3. The Molding part: this is the core and also the most important of the machine for press the charcoal powder into charcoal briquettes.
Operation principle of bauxite briquettes making machine press:
Applicable material of bauxite briquettes making machine press:
1. Bauxite powder, iron dust, metal dust; charcoal powder, carbon dust, bamboo charcoal dust, shisha charcoal powder, coconut shell charcoal powder, jujube charcoal powder, coke charcoal powder, etc. Besides, our coal and charcoal briquette press machine can be also used to press coal, brown coal, white coal powder or dust, coke powder, coking coal, etc. This equipment is widely used in the field of chemical, refrectories, ceramics, mining, and metallurgy, etc.
2. The inlet size of the powdery material should be less than 3mm.
3. We have to add suitable binder of some kinds of material for briquetting.
4. The moisture of material should be moderate, and the water content usually is 12-15%.

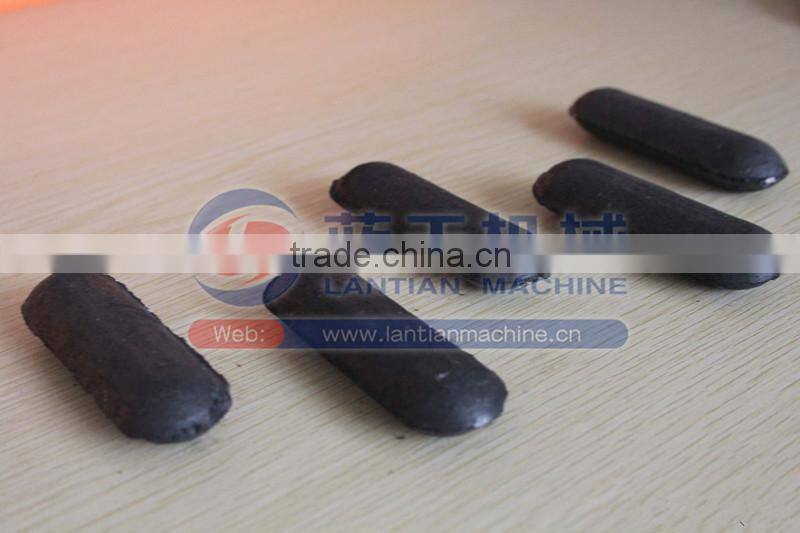

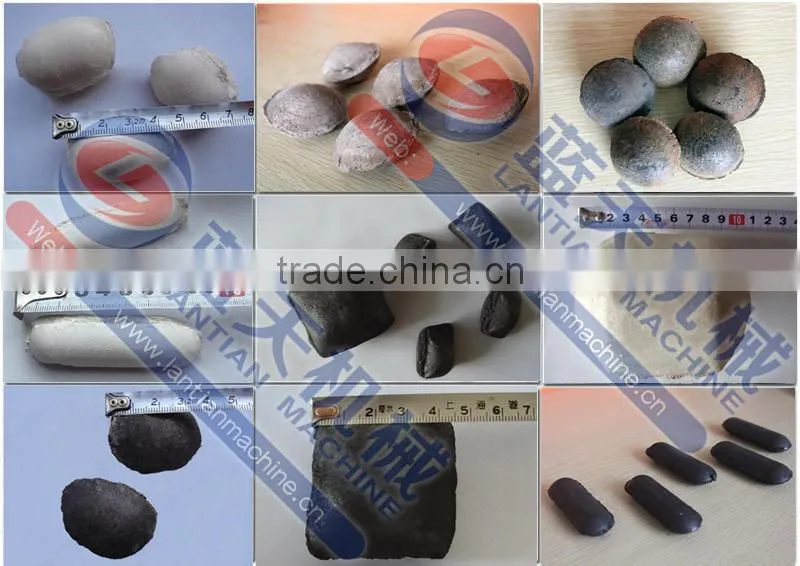

The shapes and size of briquettes:
1. Shape of briquettes: Our bauxite briquettes making machine press can press the barxite powder into square, oval shape, egg shape, round shape, pillow shape, bread shape, cylinder, bar shape, etc. Also you can make the briquettes hollow in the center. Besides, we can according to your special requirements to make the moulds for you, that means you can set the shape by yourself.
2. Size of briquettes: as your needs within a certain degree (10-80 mm).
3. Hardness of briquettes: The coal briquettes by our bauxite briquettes making machine press are really hard for the hgh pressure of the machines, the briquettes are not shattered even through down from 3 meters high, or stepped by the humanbeing when they are dried.
4. Thansport of briquettes: The briquettes are easy and convenient to store and transport for a very long time.
Technical parameters:
| Model | Capacity | Roller diam | Motor power | Pressure | Roller speed | Briquette size |
| LT-290 | 1.5-2 t/h | 290 mm | 5.5 kw | 40 | 15-17 r/min | 10-80 mm |
| LT-360 | 2.5-4 t/h | 360 mm | 7.5 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-450 | 4-5 t/h | 450 mm | 15 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-500 | 6-8 t/h | 500 mm | 22 kw | 60 | 15 r/min | 10-80 mm |
| LT-650 | 10-15 t/h | 650 mm | 30 kw | 80 | 15 r/min | 10-80 mm |
| LT-850 | 25-35t/h | 850 mm | 37-45 kw | 100 | 13 r/min | 10-80 mm |
| LT-1000 | 35-40 | 1000 mm | 75-90 kw | 120 | 12 r/min | 10-80 mm |

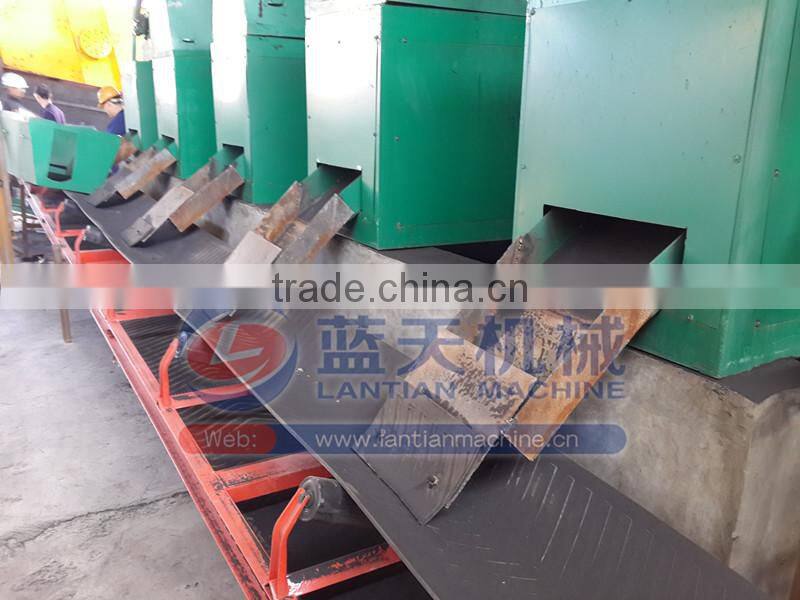

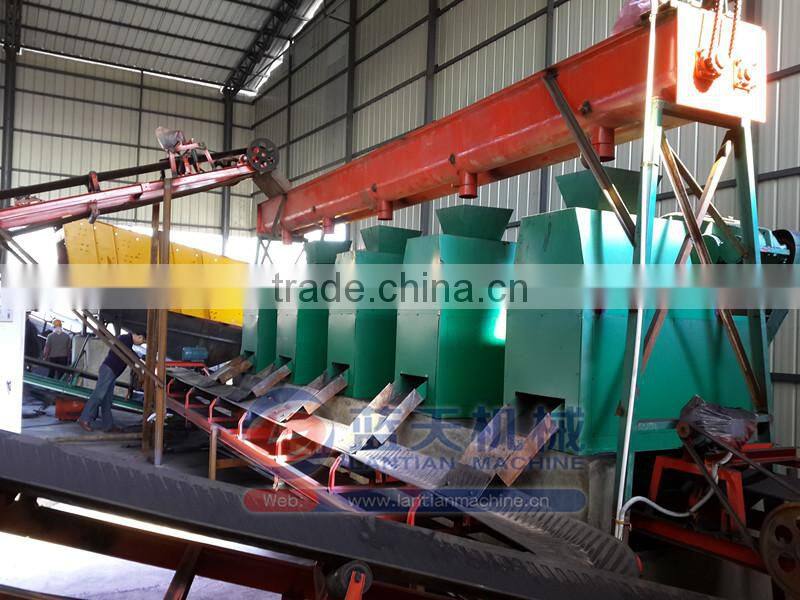

Production line of bauxite briquettes making machine press:
Besides carbon black briquette making machine, we have also the various types of Auto Feeder, Separator, Crusher, Liquid Binder Mixer, Mixer, Conveyor, etc. We can according to your special requirements to provide the suitable equipments for the production line, the whole line can be fully configured to fulfill automatic producing, saving labors, bring as much as profits to you! Also we can provide the selection of adhesive, here we have some reference providing to you as the following: 1) The raw material price is low, cource is rich, convenient for production and processing; 2) The adhesive have good liquidity, strong affinity, can increase the forces between particles; 3) Environment protect adhesive will not cause pollution to the environment; 4) Try to reduce the ash content increasing (lower mineral content).

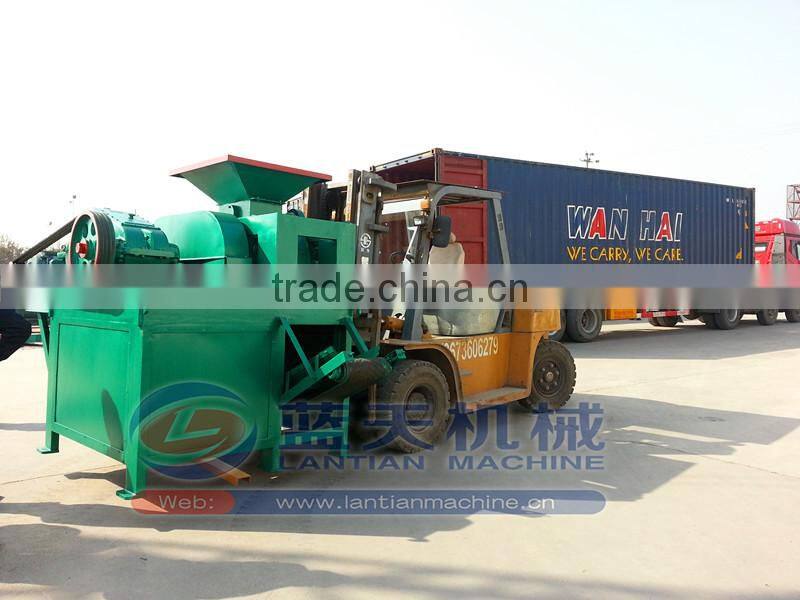

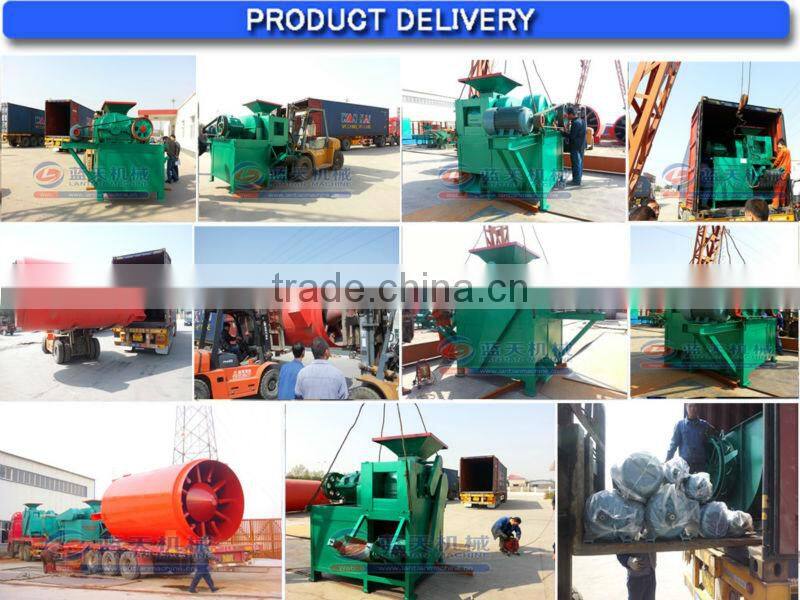

Packaging and shapping of our machines:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our service for our customers:
♥ Before Service:
1. According to our customers special requirements, provide the most suitable project design, process design and the purchase program.
2. Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.
♥ On sale service:
1. Accompany you to check the working conditions of our machines.
2. Inspect the quality of all our machines.
3. Manufacturer the equipments as the contact appears at first time after receive your deposit. Arrange the delivery timely.
♥ After sale service:
1. Send engineers to your site, help you to install and debugging devides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.
2. Guarantee of the equipments quality, maintenance, etc. Solve all the troubles for you timely during your production when receive your call oure-mails.
About our factory:
Through 30 years of development and technology innovation, our Lantian Mechanical Plant has been developped to a professional manufacturer set design, manufacture, after-sale service as a whole. In order to meet the different requirements of our customers, we designed and researched many types of charcoal process machines, include charcoal & coal briquette machine, shisha & hookah charcoal tablet machines, charcoal & coal extruder machines, and biomass charcoal briquette machines, etc.
Besides, we have also got the CE, ISO, SGS, etc, several patents, and for many years, our machines have been sold home and abroad, and are highly praised by our customers, especially the foreign customers such as Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.
Workshop:
