Automatic Steel Nail Production Line with wire coil rod(Whatsapp:+86 15937198193)
| Raw Material | waste tire bead wire , scrap steel rebar from building, new wire rod |
|
available final steel nail size (specifications on all models steel nail making machine ) |
Except what aboved model , also we had another one which named as Z94-4.5C , It is designed to process steel nail within size scope of "70-135mm length and 3-6mm diameter" , motor comes as 4.4KW |

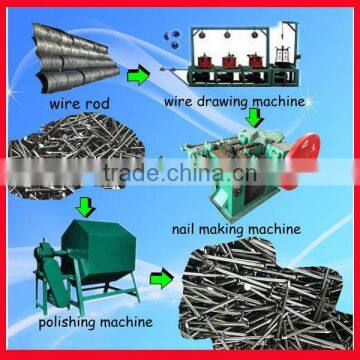

| Processing Flow |
Option A :
waste steel rebar from buildings (low carbon series)-----profeesioanl scrap steel wire drawing machine (with the function of straightening and pointer ) ------nail making -----polishing----packing for sale
Option B:
Scrap tyre bead wire -----annealing treatment-------butt welding machine-----horizontal or vertical type continuous wire drawing (determined by your expected capacity ) -----pointer-----nail making -----polishing
Option C :
New steel wire coil (low carbon Q235 or Q195 series)-----butt welding machine -----derusting machine -------horizontal or vsertical type wiredrawing ------pointer-------nail making -----polishing |
| Functions of other auxiliary equipments |
wire drawing machine ---drawing the larger diameter of steel wire into the smaller one as you expected
Remark: the vertical bar being appeared on nail body and nail cap is finished in this process by special structure on die mould .
pointing rolling machine ---sharpener and thinner one end of steel wire to help itself goes into wire drawing machine easily
butt weldding machine---welding every two steel wire rod together for continuous wire drawing
steel nail polishing machine ---help to remove the rust sticked on steel nail
nail knife sharpener---to make the cutting tool more sharp
annealing furnace -----pretreatment on waste tyre bead wire before using it to make steel nail |
- The principal axis are made in S45C steel and moreover via a heating treatment , what is more , we design this most important part as a whole body not belong to that assemble-type , so very durable , 10 years working life is easy to satisfied .
- Operating video will be sent to clients together with English instruction book , to help them for a better use.
-
Engineer are available to overseas for installation and debugging machine and training the operator until the machine working normally .
-
Two year guarantee for whole machine except spare parts .The seller will provide 3sets nail die and 3 sets nail knife for free to buyer .
- Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
- Any Problems occurred while running , professional advice(technic support) will be given by us within 24 hours via email .
- Originally it is designed to make common wire nail , but testing proved that , under the help from other special auxiliary equipments like corrugated nail machine , umbrella head making machine ,galvanization machine, thread rolling machine and etc .,also are okay for screw steel nail , roofing nail and cement nail(require high carbon 45# steel)
- 20M2 workshop are okay ,and just need 3 people to operate for the whole production line , so very low investment but very big profit especially for the situation of using scrap steel rebar , it is 5 times as the new well-drawn wire rod .
-
This machine adopts closed plunger type transmission structure so as to ensure the features such as high speed, low noise and less impact(self-lubricating).
-
feed the materials automatically. Once start, it could make nails continuously.
-
A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded.
use control handle at the inlet place in order to control incoming line at any time during operating.
Below info are needed(helpful) for a quick quotation
1. diameter and length of final steel nail you required .
2. your local industrial electric situation (? V and ? Hz and ? phase)
3. raw material is scrap steel rebar from bruilding or new steel wire coil or tyre bead wire ?
4. you need a whole complete production line or just one set host machine of steel nail making machine
5. the nail shape you need ? better to attach us one picture .
Pls reply via below contact info :
Q: What is your spares parts for steel nail making machine ?
A: punch pin , steel ball , nail knife and nail mould .
Q: what is the difference on final steel nail from new wire coil and scrap steel rebar ?
A: The defective nail ratio from scrap steel rebar are a little higher .
There are a special vertical bar appears on final steel nail which made from scrap steel rebar .
