manufacturer automatic screw nail making equipment
- 7 Set / Sets per Month
- qingdao or shanghai china
- T/T D/P D/A Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
Product Details
Place of Origin: | Henan, China | Brand Name: | hengxin | Model Number: | Z94-713 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Screw Nail Making Equipment
Function and Finished Nail Shape :

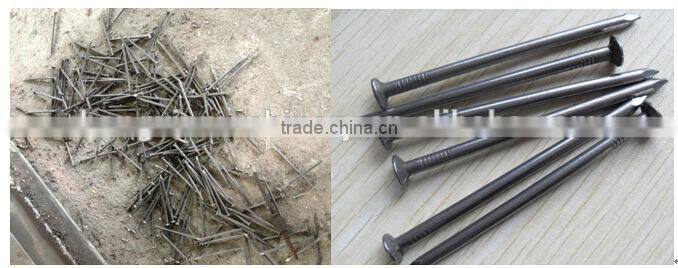

For making steel nail in various size , here as below photo show you the nail shape .

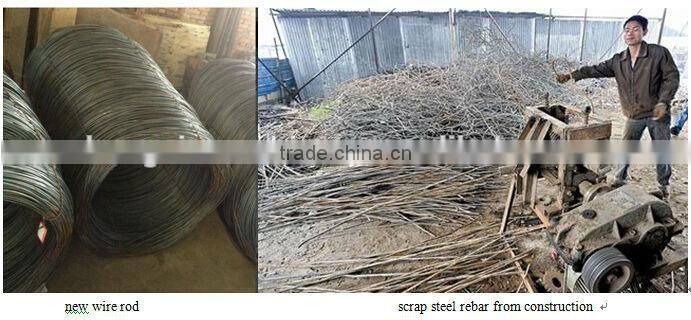

The available raw material :
Spare parts of our screw nail making equipment:
punch pin ,nail knife,nail mould,and steel ball(for this one you can buy from your local market )
upper one is nail knife , and the lower one are nail knife
Specifications from screw nail making equipment:
Production Flowchart
If the raw material you prepared is new wire rod
1.New wire rod---> butt welding machine---> pointing rolling machine---.>horiziointal type wire drawing machine---> nail making machine--->thread-rolling machine ----->nail polishing machine
2.New wire rod--->butt welding machine-->rust removal machine--->pointing rolling machine--->vertical type wire drawing machine(a group of 6ets)--->wire discharge machine--->nail making machine-->thread forming machine ---->nail polishing machine
3.new wire rod--->butt welding machine--->pointing rolling machine--->vertical type wire drawing machine(a group of 4sets)--->nail making machine-->thread rolling machine---->nail polishing machine
If the raw material you prepared is scrap steel rebar
scrap steel rebar--->8 model wire drawing machine-->5 model wire drawing machine--->nail making machine--->thread rolling machine ---->nail polishing machine
Remark: No matter what raw material you plan to use, another set of nail knife sharpener is necessary to buy , it help to making the cutting tool installed in nail machine more sharp
Function Introduction For Every Kind Of Auxiliary Equipment :
Wire Drawing Machine -----pull steel wire which comes in large diameter into smaller one which same as the final nail you want to get
Pointing Rolling Machine----sharpen and thiner one end of steel wire to help itself goes into the feeder of wire drawing machine easily
Nail Making Machine----Making steel nails in different size
Nail Polishing Machine----To remove rust and make the finished steel nail seems more bright
Butt Welding Machine-----Welding the end of every two wire rod together for continuous wiredrawing
Rust Removal Machine----Removing the rust sticked on wire
Wire Discharge Machine----Discharge finished wire rod after wiredrawed
Thread-Forming Machine
Business Card
Features :
1.20M2 workshop are okay ,and just need 3 people to operate for the whole production line
2. Both of the scrap iron wire and the new steel rod can be used to make nails.The profit using wasts steel is 5 times of that using finished steel
4 All the main components are made of quality steel, such as shaft, cams and gear.
5. This machine adopts closed plunger type transmission
structure so as to ensure the features such as high speed, low noise and less impact(self-lubricating).
6. can feed the materials automatically. Once start, it could make nails continuously.
7 A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded.
8. use control handle at the inlet place in order to control incoming line at any time during operating.
Photos
If you wanna to make screw type steel nail , except the common nail machine , also need thread- rolling machine

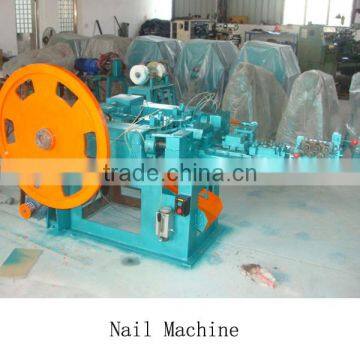

common steel nail making machine thread-rolling machine
