Home > Products > automatic oil press machine production line > automatic screw cold press oil expeller
automatic screw cold press oil expeller
- 20 Set / Sets per Month
- qingdao or shanghai china
- T/T D/P D/A Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Sesame Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 80-120kgs | Brand Name: | Hengxin |
Model Number: | YXZJ-80MODEL | Voltage: | 380V,50HZ | Power(W): | 4+2+0.5KW |
Dimension(L*W*H): | 1700*1100*1600MM | Weight: | 880KGS | Certification: | ISO9001 and CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cold Press Oil Expeller, Oil Press Machine , Oil Mill
1.WORKING PRINCIPLE OF Cold Press Oil Expeller
The power comes from main motor being passed on to the shaft, and with the rotation there the worm push the oil crops seeds forward continually .because of the space between squeeze chamber and squeeze worm become more and more tighter,also with higher density of the raw material ,therefore the pressure increasing gradually. Meanwhile,due to the friction from oil particles movement surely much heating will appears , so far the two basic factors had been complete for oil technicals ,they damage the cell tissue and resulting in crude oil flows to the mixing tank via oil plate for further simple filter,in this way,the oil residue was segregate on the screen.And related to the cake residual ,they are being pushed out from special designed discharge hole.

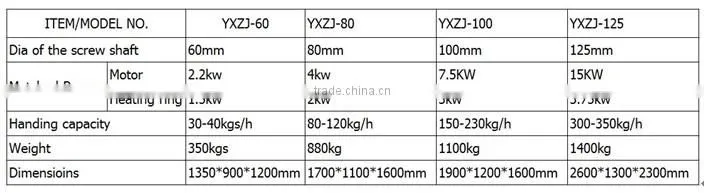

2.TECHNICAL PARAMETER

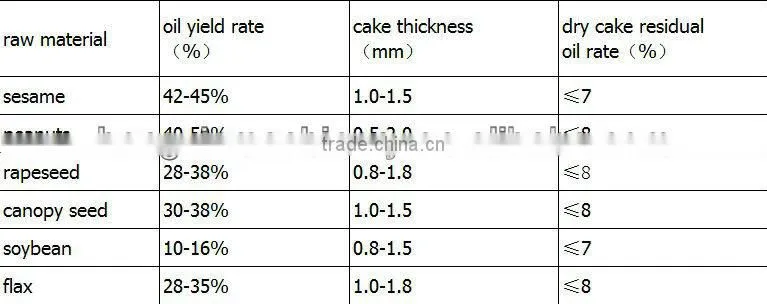

3.MACHINE PERFORMANCE TESTING
4.FEATURES
1.Fully automatic with 2 vacuum oil filters ,not only save labour about 60% (one or two person are okay
for operate one machine)but also remove residue so as to ensure the pure oil quality and meet the standard of health guarantine
2.Small land using---only 10-20 square meters is enough for production
3.Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as
peanuts,sesame ,rapeseeds,soybean,sunflower seeds and flax and etc by third levels for one time.
4.Cake residual oil rate---only 6%-7%. So the cake also can be used for animal feed.
5.Low investment, get more profit
6.machine surface is made of chrome plated stainless steel, in line with food hygiene standards
5.MACHINE COMPONENTS
It is mainly composed by 7 major parts respectively that is screw axis ,press cage,feed mechanism ,cake yielding mechanism ,transmission system,electric control part and vacuum filter part.All the parts are assembled on one frame and screwed as a whole.
6.PROFESSIONAL ADVICE
Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,so that we can make flow chart production line for you as your requiremen.We will stand at your point to suggest low cost and suitable production line for you.
Sincerely want to cooperate with you.
7.BUINESS CARD
8.BASIC PROCUDURE
hulling—screening—grinding---drying---pressing ---refinery --eating oil
kindly notes that we adopt different processing technics according to different raw material.

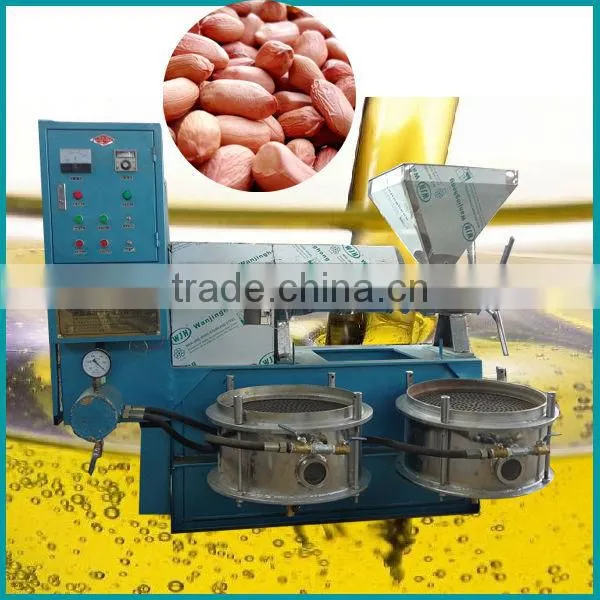

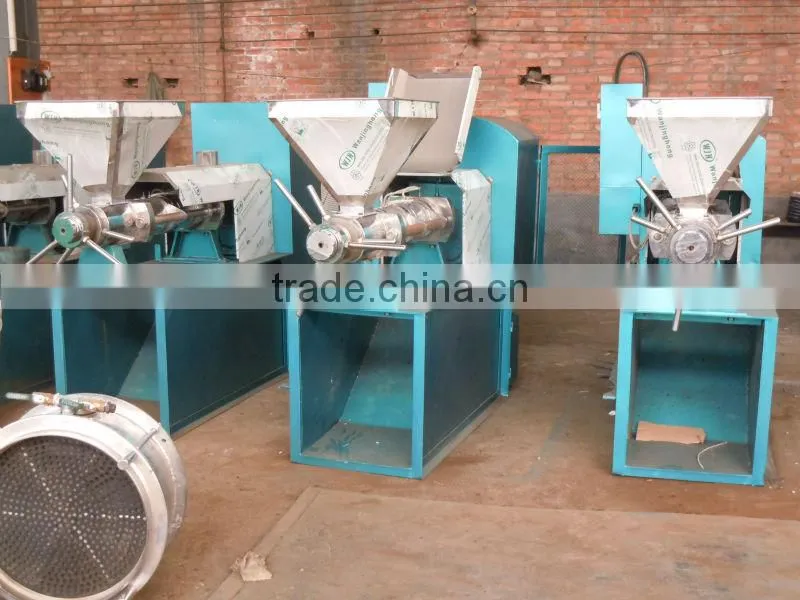

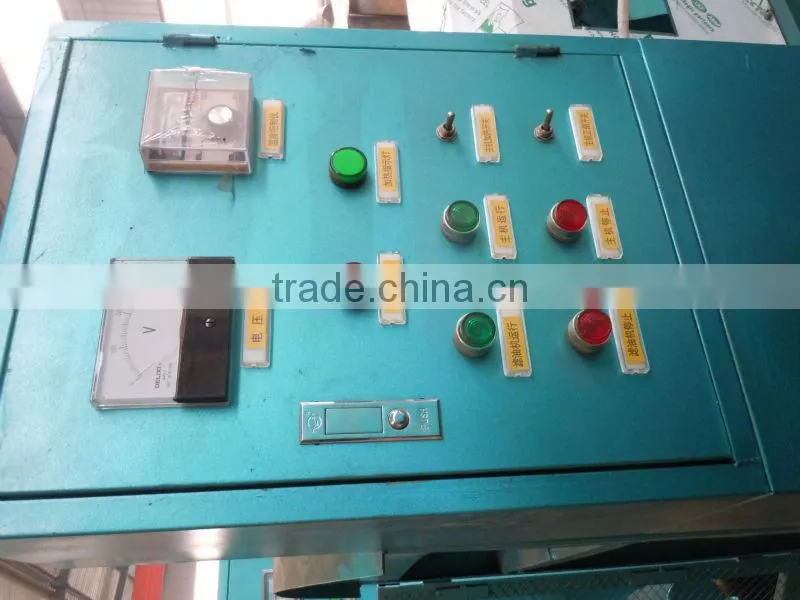

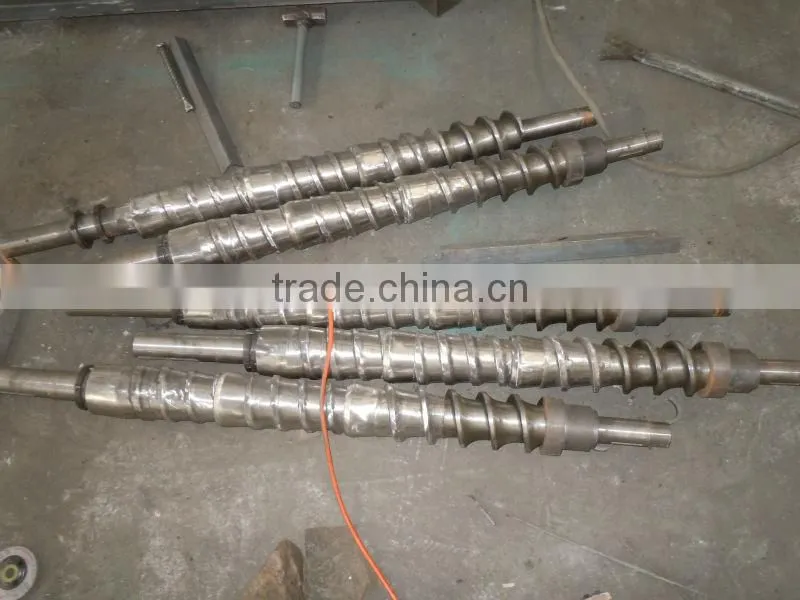

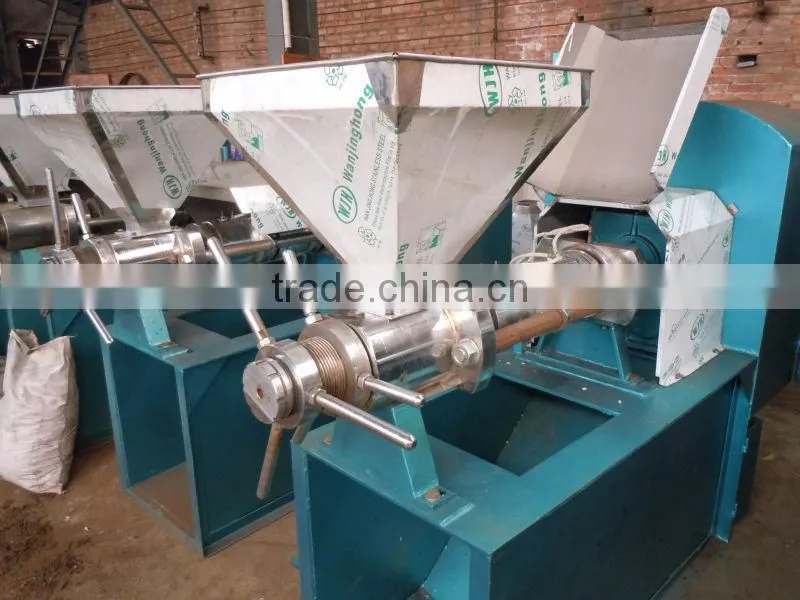

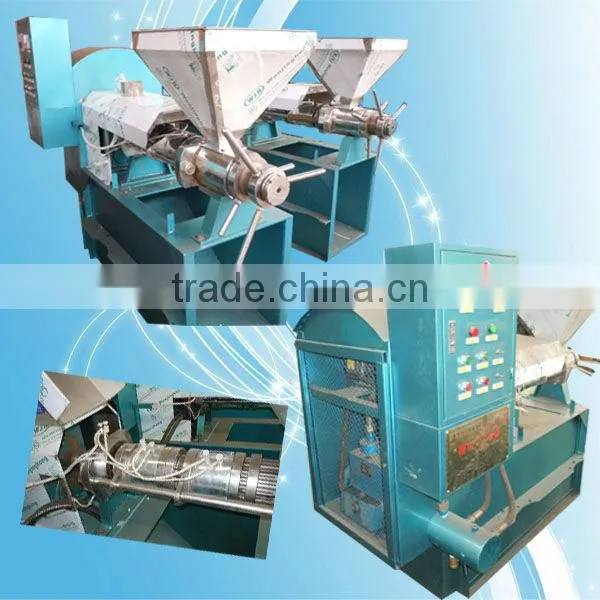

9,DETAILS SHOWS (photos) of Cold Press Oil Expeller
