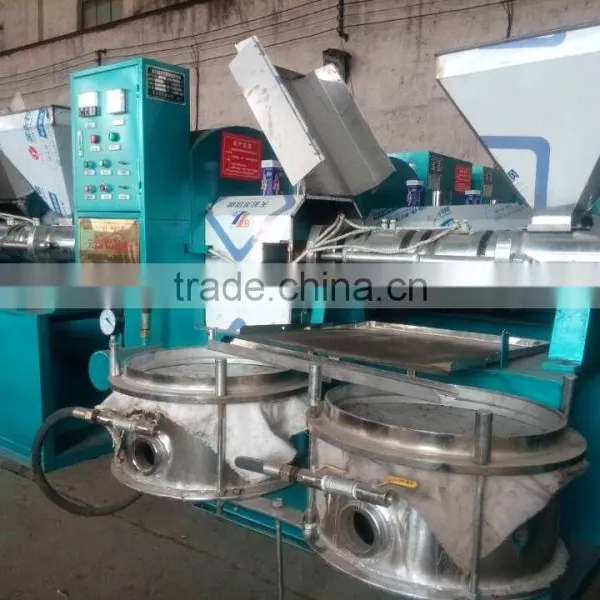

automatic screw pressing cooking oil equipment with vacuum oil filtration
1.WORKING PRINCIPLE
The power comes from main motor being passed on to the shaft, and with the rotation there the worm push the oil crops seeds forward continually .because of the space between squeeze chamber and squeeze worm become more and more tighter,also with higher density of the raw material ,therefore the pressure increasing gradually. Meanwhile,due to the friction from oil particles movement surely much heating will appears , so far the two basic factors had been complete for oil technicals ,they damage the cell tissue and resulting in crude oil flows to the mixing tank via oil plate for further simple filter,in this way,the oil residue was segregate on the screen.And related to the cake residual ,they are being pushed out from special designed discharge hole.
2.TECHNICAL PARAMETER
4.FEATURES OF SCREW PRESSING COOKING OIL EQUIPMENT
1.Fully automatic with 2 vacuum oil filters ,not only save labour about 60% (one or two person are okay
for operate one machine)but also remove residue so as to ensure the pure oil quality and meet the standard of health guarantine
2.Small land using---only 10-20 square meters is enough for production
3.Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as
peanuts,sesame ,rapeseeds,soybean,sunflower seeds and flax and etc by third levels for one time.
4.Cake residual oil rate---only 6%-7%. So the cake also can be used for animal feed.
5.Low investment, get more profit
6.machine surface is made of chrome plated stainless steel, in line with food hygiene standards
5.MACHINE COMPONENTS

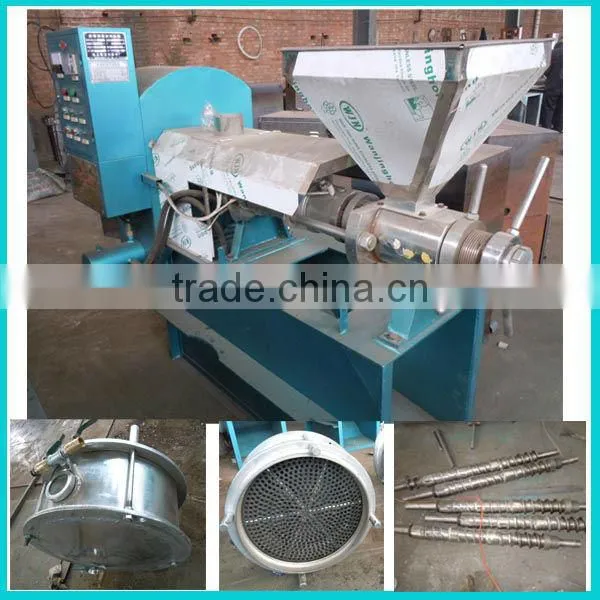

It is mainly composed by 7 major parts respectively that is screw axis ,press cage,feed mechanism ,cake yielding mechanism ,transmission system,electric control part and vacuum filter part.All the parts are assembled on one frame and screwed as a whole.
6.PROFESSIONAL ADVICE
In your enquiry letter , pls list us your idea (plan) on following info:
Expected handling capacity & Oil seed species & Whether plan to roaste oilseed before pressing & you need filter the crude oil or not ?
7.BASIC PROCUDURE
husking—screening—roasting---pressing ---filter crude edible oil .
